CHAPTER 12: Adding and Replacing Components

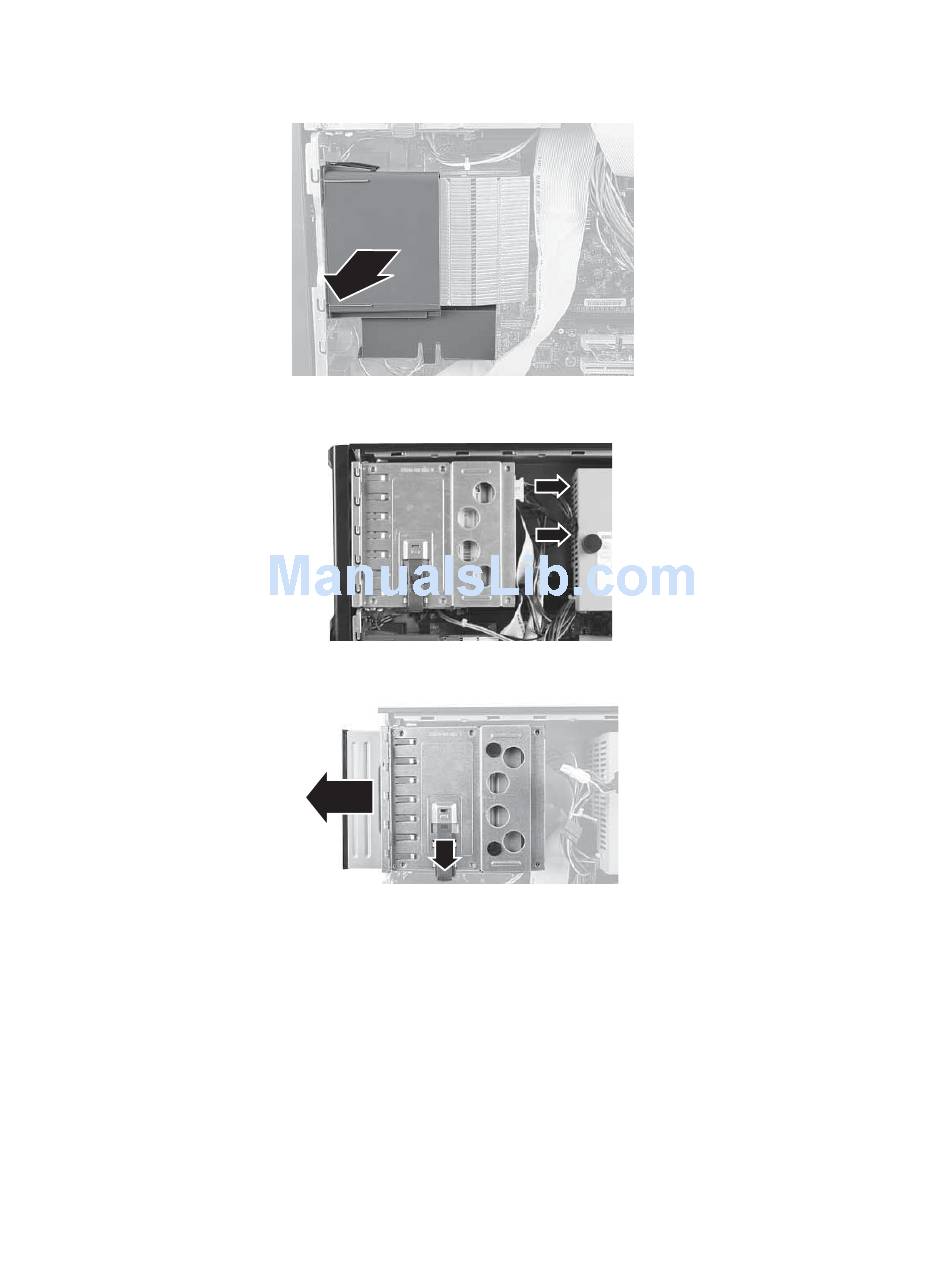

Remove the fan assembly by squeezing it slightly (top to bottom) and pulling it away from
the case.
Disconnect the cables from the 5.25-inch component, noting their locations and orientation.
You will reconnect the cables after you reinstall the component. (DVD drive shown.)
Pull the release latch down to the Unlock position on the 5.25-inch bay, then slide the
component forward and out of the bay.
Lift the 5.25-inch component bay from the chassis to remove it.
