CHAPTER 12: Adding and Replacing Components

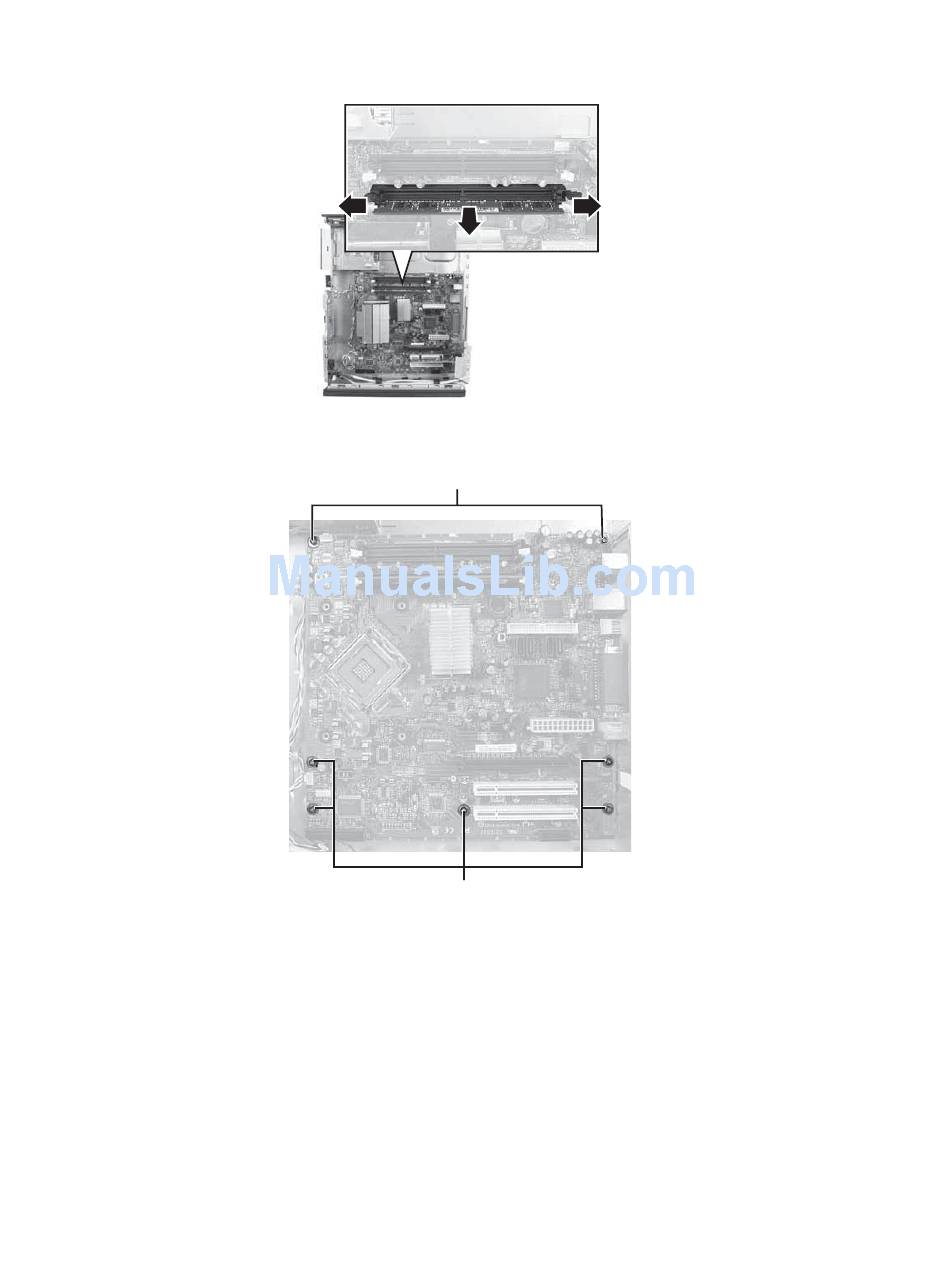

Find the memory module banks on your system board.
Gently pull the plastic tabs away from the sides of the memory modules, then remove them.
Remove the seven (7) system board screws.
Lift the system board up and out of the case.
Align the new system board on the screw holes in the case, then secure it into the case
with the screws.
If your replacement system board does not include a processor, go to
-OR-
If your replacement system board includes a processor, go to
Loosen the four screws that secure the heat sink to the old system board, then remove
the heat sink. These screws cannot be removed. If the heat sink sticks to the processor,
twist it slightly to release it, then try again.
Screws
Screws
Step 21.
Step 27.
