Gateway 3-Bay mBTX Pro User Manual page 139

8
9
10
11
12
13
14
15
16
Replacing the front I/O board
To replace the front I/O panel:
1
www.gateway.com

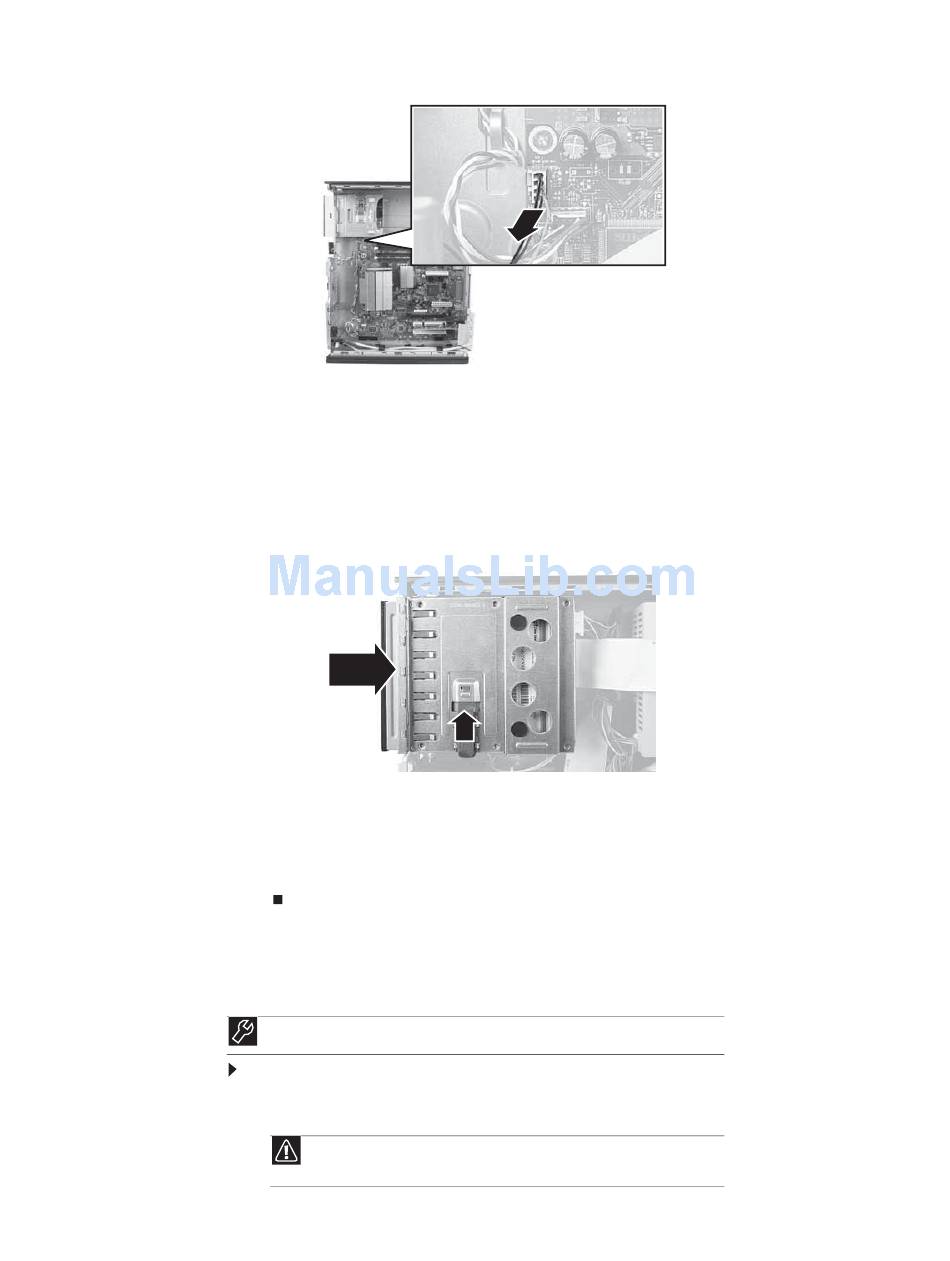

Disconnect the fan cable from the system board.
Remove the four screws securing the fan to the fan shroud, then remove the old fan.
Secure the new fan to the fan shroud with the four screws you removed in the previous
step.
Connect the new fan cable to the system board, then insert the new fan assembly into
place.
Replace the 5.25-inch component bay into the chassis.
Slide the component back into the 5.25-inch bay, then push up on the release latch to move
it to the Lock position.
Reconnect the cables using your notes from
Replace the metal reinforcing beam/hard drive assembly, being careful not to pinch the
hard drive cables.
Replace the side panel by following the instructions in
page 126.
Tools
You need a Phillips screwdriver to replace the front I/O board.
Remove the side panel by following the instructions in
page 122.
Caution
Be careful not to pull or damage the hard drive power and data cables when
you remove the metal reinforcing beam/hard drive assembly.
Step 5.
"Replacing the side panel" on
"Removing the side panel" on
133
