140
CHAPTER 12: Adding and Replacing Components

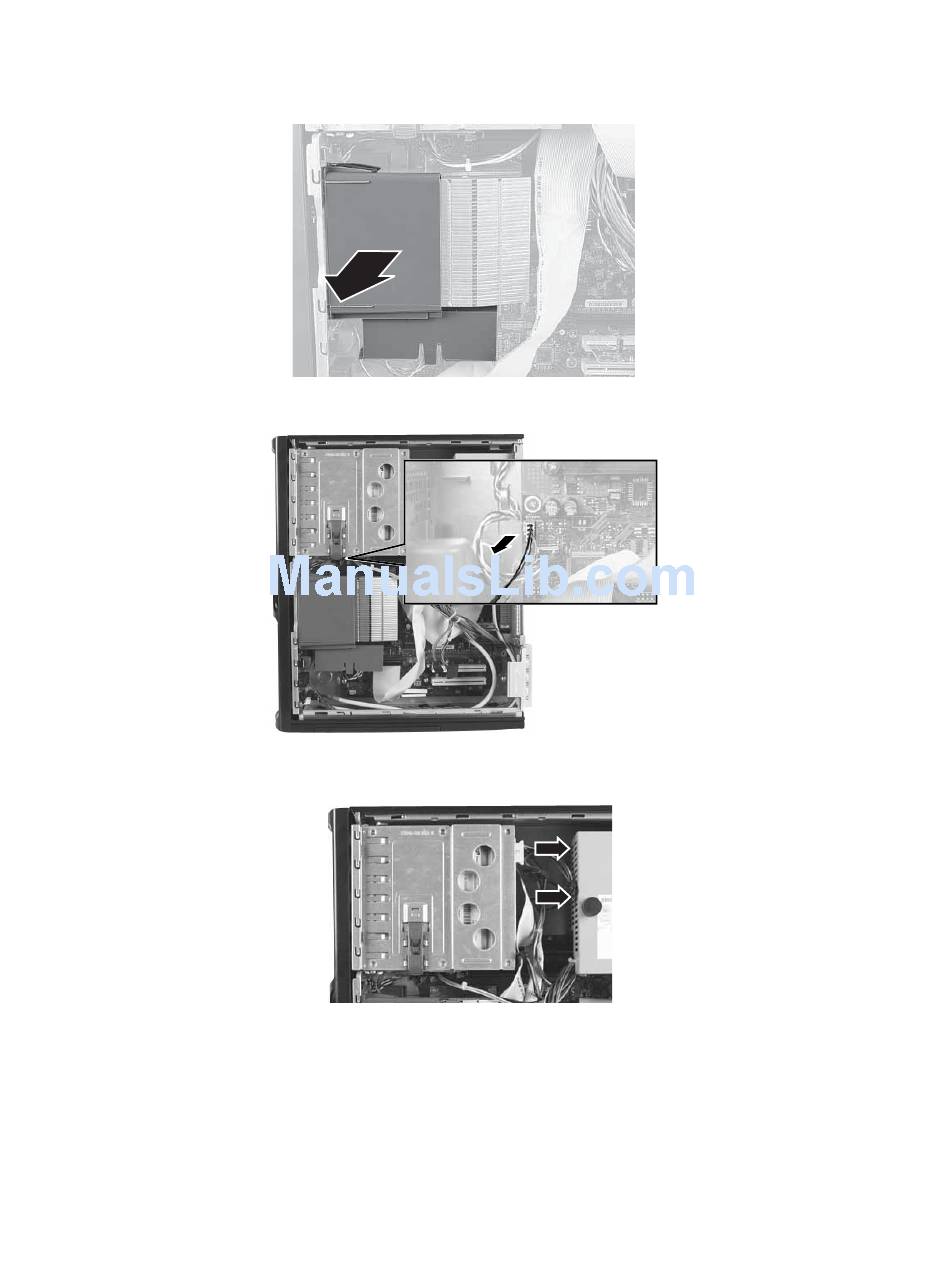

Remove the fan assembly by squeezing it (top to bottom), then pulling it away from the
case.
Disconnect the fan cable from the system board.
Disconnect the cables from the 5.25-inch component, noting their locations and orientation.
You will reconnect the cables after you reinstall the component. (DVD drive shown.)
