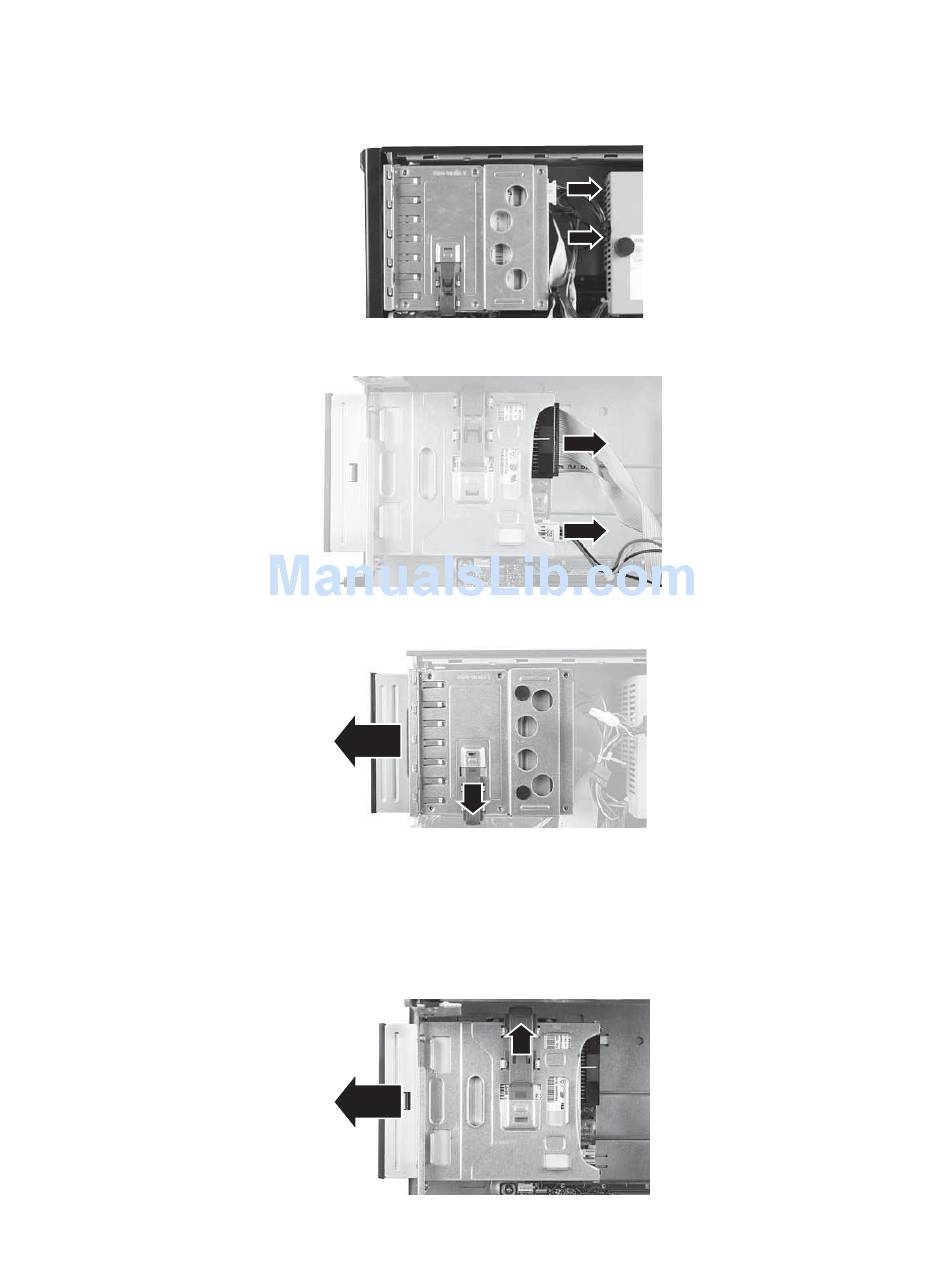

Disconnect the component cables, noting their locations and orientation. You will reconnect
the cables after you install the new component. (DVD drive shown.)
5.25-inch component
- OR -
3.5-inch component
4
If you are removing a 5.25-inch component, pull the release latch down to the Unlock
position on the 5.25-inch bay, then slide the component forward and out of the bay.
5
If you are only replacing a 5.25-inch component, note any jumper settings on the old drive
and set the jumper on the new drive to be the same, then go to
- OR -
If you are replacing a 3.5-inch component, lift the 5.25-inch component bay out of the
chassis to remove it.
6
Push up on the release latch on the 3.5-inch component bay to move it to the Unlock
position, then slide the component forward and out of the bay.
