Icom IC-F5060 series Operating Manual page 23

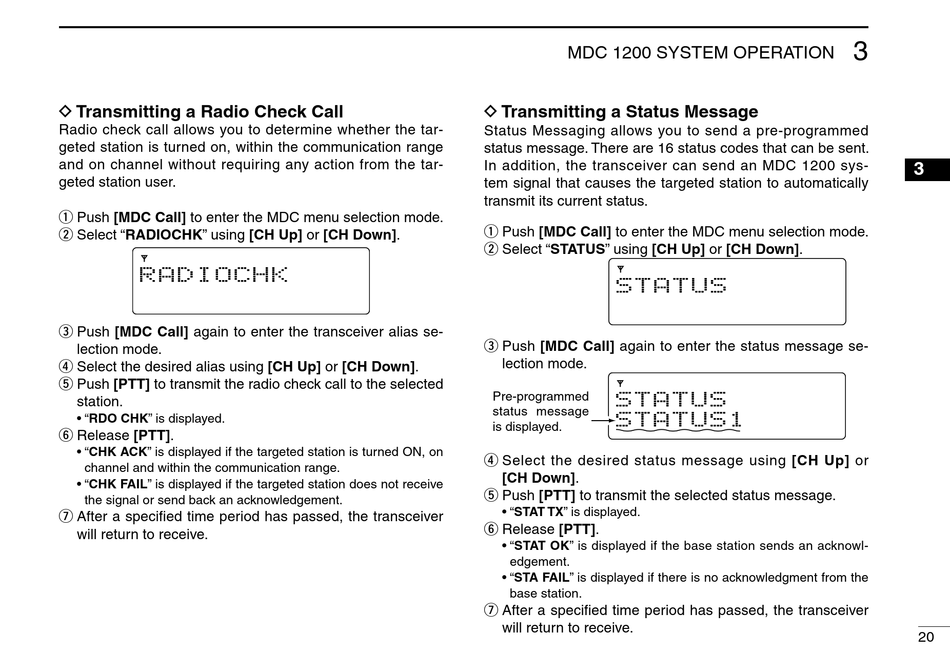

D Transmitting a Radio Check Call
Rado check call allows you to determne whether the tar-
geted staton s turned on, wthn the communcaton range
and on channel wthout requrng any acton from the tar-
geted staton user.
q Push [MDC Call] to enter the MDC menu selecton mode.
w Select "RADIOCHK" usng [CH Up] or [CH Down].
R A D I O C H K
e Push [MDC Call] agan to enter the transcever alas se-
lecton mode.
r Select the desred alas usng [CH Up] or [CH Down].
t Push [PTT] to transmt the rado check call to the selected
staton.
• "RDO CHK" s dsplayed.
y Release [PTT].
• "CHK ACK" s dsplayed f the targeted staton s turned ON, on
channel and wthn the communcaton range.
• "CHK FAIL" s dsplayed f the targeted staton does not receve
the sgnal or send back an acknowledgement.
u After a specfied tme perod has passed, the transcever
wll return to receve.
MDC 1200 SYSTEM OPERATION
D Transmitting a Status Message
Status Messagng allows you to send a pre-programmed
status message. There are 16 status codes that can be sent.
In addton, the transcever can send an MDC 1200 sys-
tem sgnal that causes the targeted staton to automatcally
transmt ts current status.
q Push [MDC Call] to enter the MDC menu selecton mode.
w Select "STATUS" usng [CH Up] or [CH Down].
S T A T U S
e Push [MDC Call] agan to enter the status message se-
lecton mode.
Pre-programmed
S T A T U S
status message
S T A T U S 1
is displayed.
r Select the desred status message usng [CH Up] or
[CH Down].
t Push [PTT] to transmt the selected status message.
• "STAT TX" s dsplayed.
y Release [PTT].
• "STAT OK" s dsplayed f the base staton sends an acknowl-
edgement.
• "STA FAIL" s dsplayed f there s no acknowledgment from the
base staton.
u After a specfied tme perod has passed, the transcever
wll return to receve.
