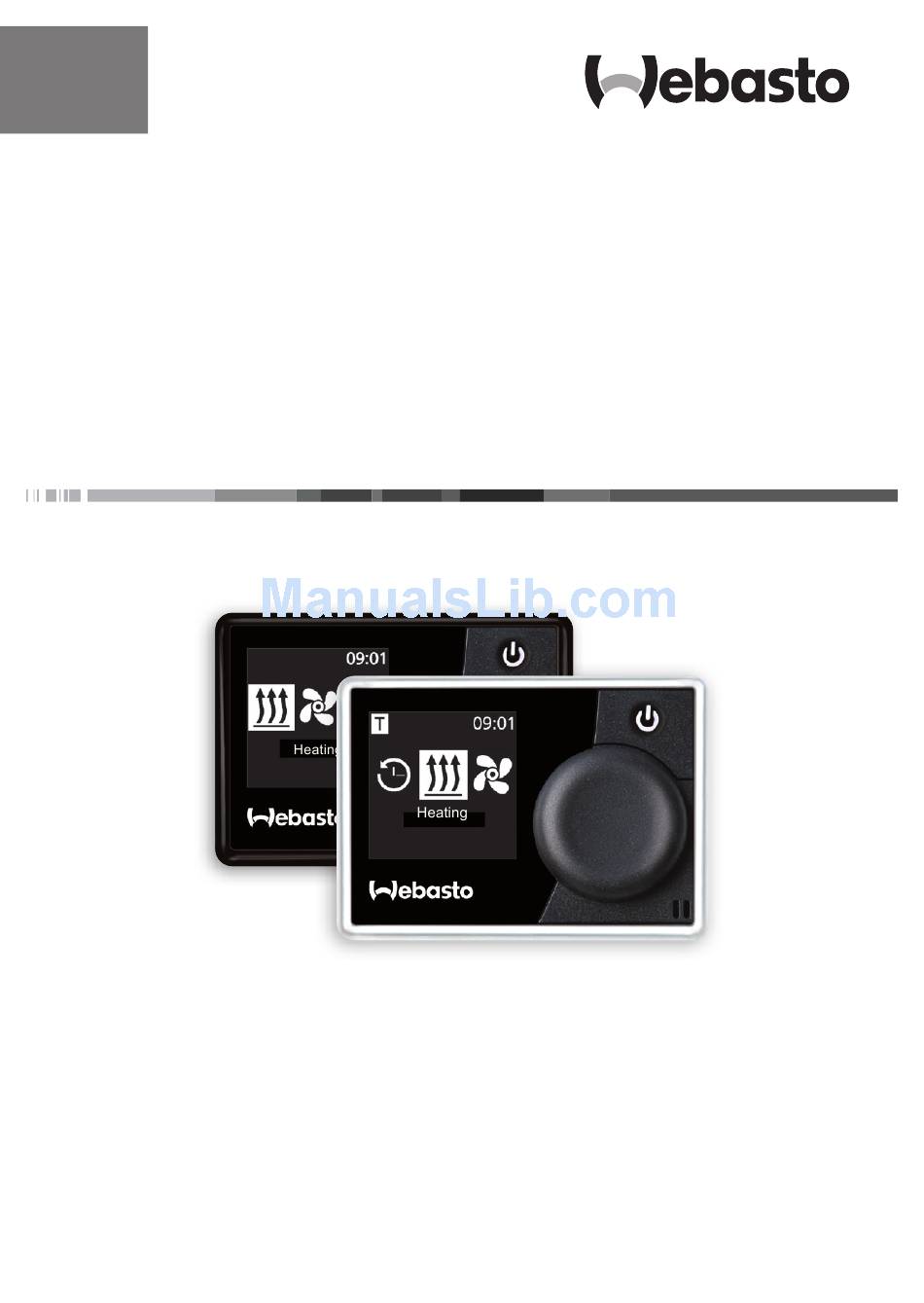

Page 1: Operating Instructions
Operating instructions SmartControl MultiControl (incl. Timer-Function) SmartControl MultiControl... -
Page 2: Table Of Contents
Contents Introduction The aim of the document The way of handling this document Use of symbols and emphases Warranty and responsibility Safety Intended use Safety instructions Overview Control element and menu structure Symbols Buttons and control 3.3.1 Back-function Status display Passive display mode Operating and setting Start display after switching on... - Page 3 Heating set-up 4.3.1 Switching on the heater by means of quick start button 4.3.2 Switching on the heater through heating menu 4.3.3 Temperature set during operation 4.3.4 Setting heating mode during operation 4.3.5 Adjusting the remaining operation time during functioning 4.3.6 Switching off heating Setting ventilation...
- Page 4 Setting ventilation 4.8.1 Switching on ventilation by means of quick start button 4.8.2 Setting ventilation through the ventilation menu 4.8.3 Adjusting the remaining operation time during functioning 4.8.4 Switching off ventilation Timer programming 4.9.1 Creating and enabling timers 4.9.2 Deactivation, editing and removal of the programmed timer 4.9.3 Removing all programmed timers 4.10...
- Page 5 4.19 Setting day/night illumination 4.20 Displaying the system information 4.21 Displaying stored error information 4.22 Performing reset Cleaning Error message Error codes Disposal Technical support and customer service Technical data...
-
Page 6: Introduction
Please pass the instruction manual on to the later owners and users of this device. Only authorized and skilled personnel can perform an assembly. Please use only original Webasto parts. Use of symbols and emphases An emphasis Explanation... -
Page 7: Warranty And Responsibility
Warranty and responsibility Webasto company does not take on the responsibility for defects and damaged caused by not following assembly and instruction manual as well as tips contained in them. The above-mentioned liability exclusion is applicable in particular for: ■... - Page 8 Risk of injuries because of faulty device Do not use the faulty heater. Contact Webasto technical support.
-
Page 9: Overview
Overview Control element and menu structure Heating Menu name Hour Menu symbol Quick start button with status display Activated time settings Control knob The following function settings are at the disposal in the main menu: timer, heating, ventilation and settings. Symbols Symbol Description... - Page 10 Symbol Description Symbol Description Heating-Normal Heating-Eco Heating-Boost Fan speed (level 1-4) Add timer Activate timer Deactivate timer Delete timer Delete all timers Active timer Quick start Day of the week Time Language Temperature unit Day/Night System information Error information Reset Service required To the left Note...
-
Page 11: Buttons And Control
Buttons and control Button Control and function Quick start button with status display (backlight) Control knob (turn/push button) for selection and confirmation of the selected functions. 3.3.1 Back-function By means of back-function one can always leave the chosen menu and go to the previous menu level. Back Status display Status of the heater is indicated by means of the colour backlight of the quick... -
Page 12: Passive Display Mode
Passive display mode If the heater is activated by other Webasto control element (e.g. by a radio remote control) then MultiControl/SmartControl wake up from the sleep mode and the operation mode is shown on the display by other control element (heating, venti- lation). -
Page 13: Operating And Setting
In order to make it possible for you to enjoy the full comfort of using Webasto heater you are requested to make yourself familiar with the instruction manual. Questions connected with the assembly and functioning of the device should be addressed to the seller or the installation workshop. -
Page 14: Start Display After Switching On
Start display after switching on MultiControl The following information about the connected heater and control element is shown in the start display: ThermoPro 50 Eco SW: 1.2.2 ■ Name of the connected control element HW: 1.1 ■ Name of the connected heater ■... -
Page 15: Switching On The Heater Through Heating Menu
In delivery condition this function is preset with the standard values. Quick start button is programmed for heating. Press qu ic k start but ton . Heating starts functioning. Heating symbol is shown in the display as well as initially set heating temperature. Quick start button shows green light. -
Page 16: Temperature Set During Operation
Turn the c ontrol knob in order to choose the Heating desired temperature. Press the c o ntrol knob in order to confirm Temperature selection Heating starts functioning. Heating symbol and selected heating temperature are shown in the display. Quick start button shows green light. 4.3.3 Temperature set during operation The heater is in the heating mode. -
Page 17: Adjusting The Remaining Operation Time During Functioning
Press the c on trol knob within 5 seconds in order to confirm selection. * depending on the installed heater. 4.3.5 Adjusting the remaining operation time during functioning The heater is in the heating mode. Press the c on trol knob in order go from tem- perature selection to heating mode selection. -
Page 18: Switching Off Heating
4.3.6 Switching off heating The heater is in the heating mode. Press qu ic k start but ton . Display shows the main menu. Heating Backlight of quick start button changes its colour from green into white colour. Setting ventilation Ventilation function activates only the fan, heating function is still on. -
Page 19: Switching On Ventilation By Means Of Quick Start Button
4.4.1 Switching on ventilation by means of quick start button “Quick start” function enables heating or ventilation by simply pressing the but- ton. In ventilation mode one can initially set fan speed, operating time. Instruction manual and description of the settings can be found in the chapter “Setting the quick start”. -
Page 20: Adjusting The Remaining Operation Time During Functioning
Turn the c ontrol k nob in order to choose the Ventilation desired duration of “an hour”. Duration By means of turning the control knob in clock- wise direction one can select and activate maximum duration. Press the c on tro l knob in order to confirm selection. -
Page 21: Setting Fan Speed During Operation
Press the c on trol knob within 5 seconds in order to confirm selection. 4.4.4 Setting fan speed during operation The heater is in the ventilating mode. Press the c on trol knob in order go from remaining operation time selection to fan speed selection. -
Page 22: Timer Programming
3 time settings per day and altogether up to 21 time settings. Depending on the used variant of MultiControl device and application case (e.g. in a car, in a truck, on the boat, etc.), the number of actively available timers can fluctuate. - Page 23 Turn the c ontrol k nob in order to choose the Timers switch-on time of “an hour”. Press the c on tro l knob in order to confirm Start time selection. Turn the c ontrol k nob in order to choose Timers switch-on time of “a minute”.
- Page 24 Turn the c on tro l k nob in order to choose the Timers desired heating mode. Normal Options available: Eco (power saving mode), normal (comfort heating), Boost (rapid heating). Press the c on trol knob in order to confirm selection.
- Page 25 One should set the timer for “ventilation” operation mode. Turn the c ontrol k nob in order to choose the Timers desired “Ventilation” mode. Press the c on tro l knob in order to confirm Ventilation selection. Turn the c ontrol k nob in order to choose the Timers desired fan speed.
-
Page 26: Deactivation, Editing And Removal Of The Programmed Timer
4.5.2 Deactivation, editing and removal of the programmed timer “Timer” symbol has been selected in the main menu. Timers Press the c o ntro l k nob. The stored timers appear in the display. Timers are arranged in chronological order according to days/hours. -
Page 27: Water Heater
Press the c on tro l knob. The stored timers appear in the display. Turn the c on tro l k nob clockwise until “Delete all” message is shown in the display. Timers Delete all Press the c on trol knob in order to confirm Timers selection. -
Page 28: Switching On The Heater Through Heating Menu
Press quic k sta rt button. Heating starts functioning. Heating symbol and preset remaining operation time appear in the display. Quick start button shows green light. 4.7.2 Switching on the heater through heating menu Heating symbol has been selected in the main menu. Heating Press the c o ntrol knob. -
Page 29: Adjusting The Remaining Operation Time During Functioning
Turn the c ontrol knob in order to choose Heating duration of “a minute”. Press the c o ntrol knob in order to confirm Duration selection. Heating starts functioning. Heating symbol and preset remaining operation time appear in the display. Quick start button shows green light. -
Page 30: Switching Off Heating
4.7.4 Switching off heating The heater is in the heating mode. Press qu ic k start but ton. The main menu appears in the display. Heating Backlight of quick start button changes its colour from green into white colour. Setting ventilation 4.8.1 Switching on ventilation by means of quick start button “Quick start”... -
Page 31: Adjusting The Remaining Operation Time During Functioning
Press the c on tro l knob. Operation time flickers in the display. Turn the c ontrol k nob in order to choose the Ventilation duration of “an hour”. By means of turning the control knob in a clock- Duration wise direction one can select and activate maximum duration. -
Page 32: Switching Off Ventilation
3 time settings per day and altogether up to 21 time settings. Depending on the used variant of MultiControl device and application case (e.g. in a car, in a truck, on the boat, etc.), the number of actively available timers can fluctuate. - Page 33 “Timer” symbol has been selected in the main menu. Timers Press the c o ntrol k nob. Timers “Add timer” message (if no timer has been saved yet) appears in the display. Add timer Press the c o ntrol knob in order to add new timer.
- Page 34 Turn the c ontrol knob in order to choose the Timers stop time of “an hour”. Press the c on trol k nob in order to confirm Stop time selection. Turn the c ontrol k nob in order to choose the Timers stop time of “a minute”.
-
Page 35: Deactivation, Editing And Removal Of The Programmed Timer
Press c o ntrol knob in order to confirm selection. Numbering of timers is established according to programming sequence. Activated time setting is marked by white bars. “T” symbol appears in the main menu. Quick start button flashes green when timer together with heating is active but the display is off. -
Page 36: Removing All Programmed Timers
Turn the c ontrol k nob in order to choose Timers operation (activate/deactivate/edit/delete). Deactivate 4.9.3 Removing all programmed timers “Timer” symbol has been selected in the main menu. Timers Press the c o ntro l k nob. The stored timers appear in the display. Turn the c ontrol k nob clockwise until “Delete all”... -
Page 37: General Settings
4.10 General settings 4.11 Quick start settings of air heaters 4.11.1 Setting the heating “Settings” symbol has been selected in the main menu. Settings Press the c on tro l knob. Settings Press the c on tro l knob in order to choose “Quick start”... -
Page 38: Setting Ventilation
Turn the c ontrol k nob in order to choose the Heating desired temperature. Press the c on tro l knob in order to confirm Temperature selection. Duration flickers in the display. Turn the c ontrol k nob in order to choose Heating the duration of “an hour”. - Page 39 Press the c on tro l knob. Settings Press the c on tro l knob in order to choose “Quick start” submenu. Quick start Heating mode appears in the display. Turn the c ontrol k nob in order to choose the Settings desired “Ventilation”...
-
Page 40: Quick Start Settings Of Water Heaters
Turn the c ontrol k nob in order to choose the Ventilation duration of “a minute”. Press the c on tro l knob in order to confirm Duration selection. Quick start button is configured by means of the appropriate settings. 4.12 Quick start settings of water heaters 4.12.1 Setting heating “Settings”... -
Page 41: Setting Ventilation
Turn the c on tro l k nob in order to choose the Heating duration of “an hour”. By means of turning the control knob in a clock- Duration wise direction one can select and activate maximum duration. Press the c on trol knob in order to confirm selection. -
Page 42: Setting The Day Of The Week
Turn the c on tro l k nob in order to choose the Settings desired “Ventilation” mode. Press the c on trol knob in order to confirm selection. Duration flickers in the display. Turn the c on tro l k nob in order to choose Ventilation the duration of “an hour”. -
Page 43: Setting The Time
Press the c on tro l knob. Settings “Quick start” symbol is shown in the display. Quick start Turn the c ontrol k nob in order to choose the Settings desired ”Day” symbol. Press the c on tro l knob in order to confirm Weekday selection. -
Page 44: Language Settings
Turn the c on tro l k nob in order to choose Settings the desired time format (12/24). Press the c on trol knob in order to confirm Time mode selection. Hour flickers in the display. Turn the c on tro l k nob in order to choose Settings “an hour”. -
Page 45: Setting The Temperature Unit
Turn the c ontrol k nob in order to choose Settings the desired “Language” symbol. Press the c on tro l knob in order to confirm Language selection. Turn the c ontrol k nob in order to choose the Settings desired “language”. -
Page 46: Setting Brightness
4.17 Setting brightness “Settings” symbol has been selected in the main menu. Settings Press the c o ntro l k nob. Settings “Quick start” symbol is shown in the display. Quick start Turn the c ontrol k nob in order to choose Settings the desired “Brightness”... -
Page 47: Setting Day/Night Illumination
Turn the c on tro l k nob in order to choose the Settings desired “Screen timeout” symbol. Press th e c o n tro l k nob in order to confirm Screen timeout selection. Turn the c on tro l k nob in order to choose Settings the desired time or “Auto”... - Page 48 Turn the c ontrol k nob in order to choose Settings the desired ”Day/Night” symbol. Press the c on tro l knob in order to confirm Day/Night selection. “Off” option is preset. Turn the c ontrol k nob in order to set the value Settings for the start of the day, the end of the day, bright- ness during a day, brightness at night.
- Page 49 Turn the c ontrol k nob in order to choose the Settings desired start of the day “a minute”. Press the c on tro l knob in order to confirm Start of daytime selection. Time of “an hour” for the end of the day flickers in the display.
-
Page 50: Displaying The System Information
Turn the c ontrol k nob in order to choose the Settings desired brightness level ”night”. Press the c on tro l knob in order to confirm Brightness (Night) selection. Settings “Day/night” brightness level appears in the display. The selected values have been saved. Day/night illumination is activated. -
Page 51: Displaying Stored Error Information
Press the c on tro l knob in order to confirm Settings selection. Heater The heater name is shown in the display. Turn the c ontrol k nob in order to switch Settings between the names of the heater and information regarding control element (the name of the con- trol element, status of software and equipment). -
Page 52: Performing Reset
Turn the c ontrol k nob in order to choose the Settings desired “Error information” symbol. Error information Press the c on tro l knob in order to confirm Settings selection. Error message (-s) is (are) shown in the display. If there is no error message then „OK.”... -
Page 53: Cleaning
Press the c on tro l knob. Settings “Quick start” symbol is shown in the display. Quick start Turn the c ontrol k nob in order to choose the Settings desired “Reset” symbol. Reset “OK” is shown in the display. Press the c on tro l knob in order to confirm Settings selection. -
Page 54: Error Codes
Examples of error messages for control elements: Code Description Undervoltage (supply voltage is below 8V) Charge the battery and check car electrical installation. Defective LED status Contact technical support/customer service. Temperature sensor failure (temperature sensor in MultiControl/Smart- Control is damaged) Contact technical support/customer service. -
Page 55: Disposal
Code Description Wrong time (internal clock chip of MultiControl/SmartControl device lost its time) In case of voltage interruption amounting to more than 8 minutes: Enter date/hour again. In case an error appears without voltage interruption: Contact technical support/customer service. Jamming control knob (control knob pressed longer than 10 seconds). - Page 56 Postfach 1410 82199 Gilching Germany Visiting Address: Friedrichshafener Str. 9 82205 Gilching Germany Internet: www.webasto.com The telephone number of each country can be found in the Webasto service center leaflet or the website of the respective Webasto representative of your country.
