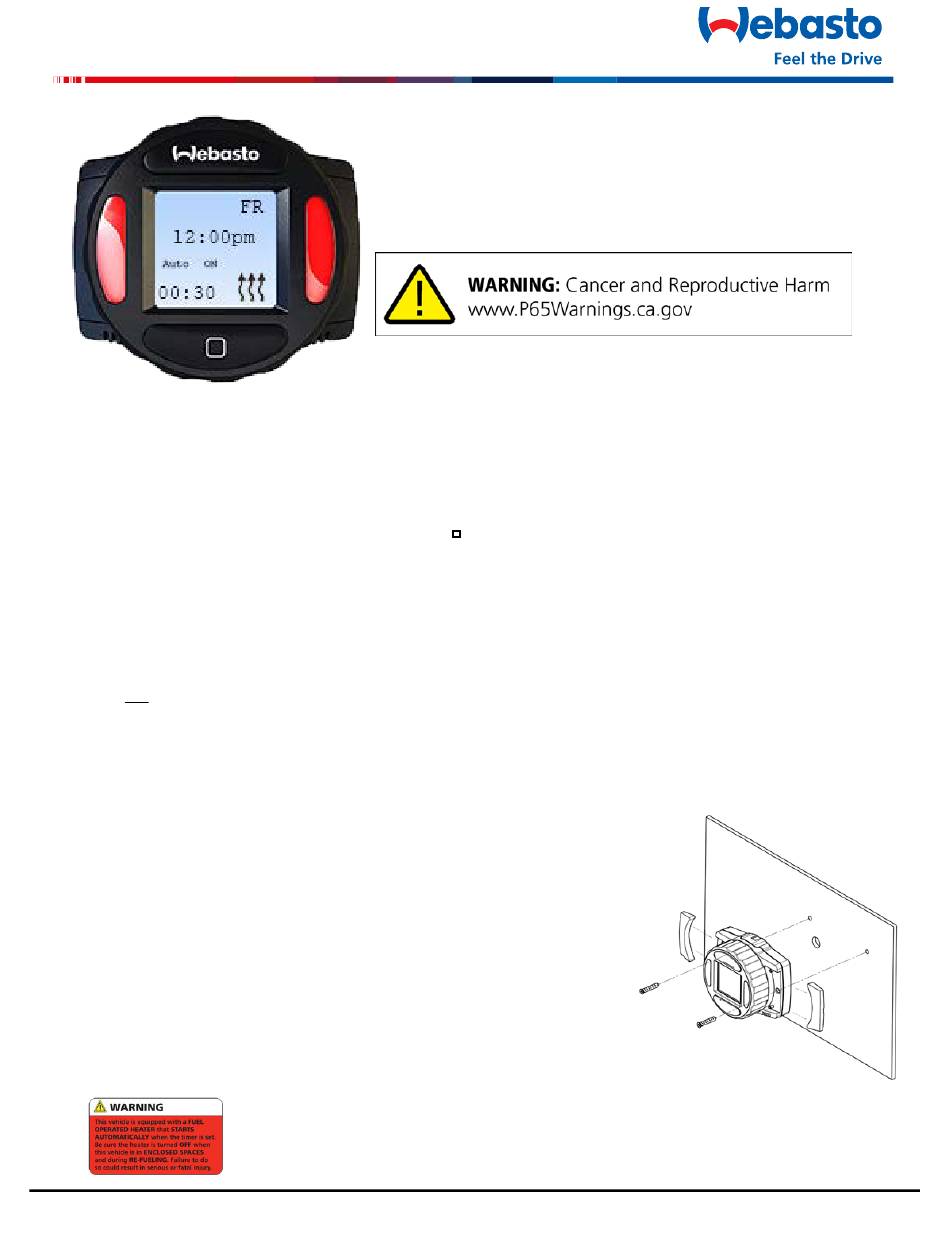

Webasto SmarTemp Control fx Installation And Operation Instructions Manual

General

Thank you for choosing Webasto to meet your heating needs. The Webasto SmarTemp Control fx enables you to
preset start-up cycles of your Webasto heater 7 days a week with 4 individual times each day.

Operation

The Webasto SmarTemp Control fx is controlled using a rotary dial around the outside of the unit to browse through
different menu options. Simply click the selection button (
each menu item and its default setting.
Compatibility
All Coolant Heaters. The SmarTemp Control fx has an output of 1A for the heaters ON/OFF signal. Heaters requiring a
higher amperage signal will require a relay to accommodate different specifications. See electrical connections for
details.
Note: Relay not included.

Mounting Procedure

1. Find a suitable mounting location (on a flat surface if possible) in a visible area. Note: Always install in an area
protected from the effects of weather and contamination.
2. Use the drilling dimensions to lightly mark the two mounting holes.
3. (Optional Step) To route wire harness through the mounting surface,
drill a 17mm hole as notated on the drilling dimensions image.
NOTE: Always make sure there are no obstacles behind the mounting
location prior to drilling.
4. Secure the Webasto SmarTemp Control fx using the two supplied #4
screws.
5. Apply the supplied "Heater Off" warning sticker in a highly visible
location to the drivers area. Refer to the example sticker below.
SmarTemp Control fx

Digital Timer Interface

Installation / Operation Instructions
) to make your choice. The following sections will define
1
