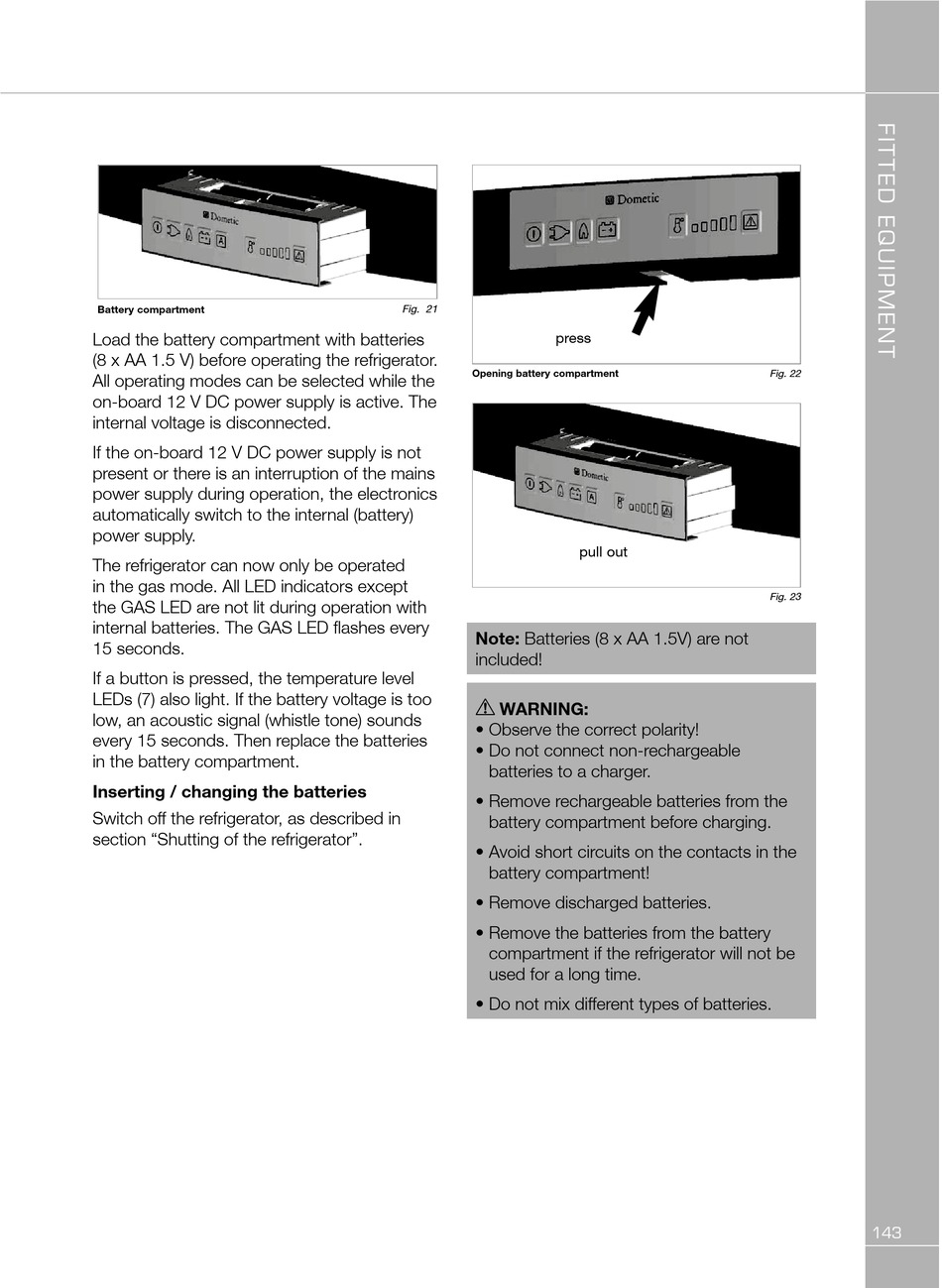

Battery compartment
Load the battery compartment with batteries
(8 x AA 1.5 V) before operating the refrigerator.
All operating modes can be selected while the
on-board 12 V DC power supply is active. The
internal voltage is disconnected.
If the on-board 12 V DC power supply is not
present or there is an interruption of the mains
power supply during operation, the electronics
automatically switch to the internal (battery)
power supply.
The refrigerator can now only be operated
in the gas mode. All LED indicators except
the GAS LED are not lit during operation with
internal batteries. The GAS LED flashes every
15 seconds.
If a button is pressed, the temperature level
LEDs (7) also light. If the battery voltage is too
low, an acoustic signal (whistle tone) sounds
every 15 seconds. Then replace the batteries
in the battery compartment.
Inserting / changing the batteries
Switch off the refrigerator, as described in
section "Shutting of the refrigerator".
Fig. 21
Opening battery compartment
Note: Batteries (8 x AA 1.5V) are not
included!
!
.
WARNING:
• Observe the correct polarity!
• Do not connect non-rechargeable
batteries to a charger.
• Remove rechargeable batteries from the
battery compartment before charging.
• Avoid short circuits on the contacts in the
battery compartment!
• Remove discharged batteries.
• Remove the batteries from the battery
compartment if the refrigerator will not be
used for a long time.
• Do not mix different types of batteries.
press
pull out
Fig. 22
Fig. 23
