If these steps do not rectify the malfunction,
please contact the Truma Service.
Truma Combi 4E/6E

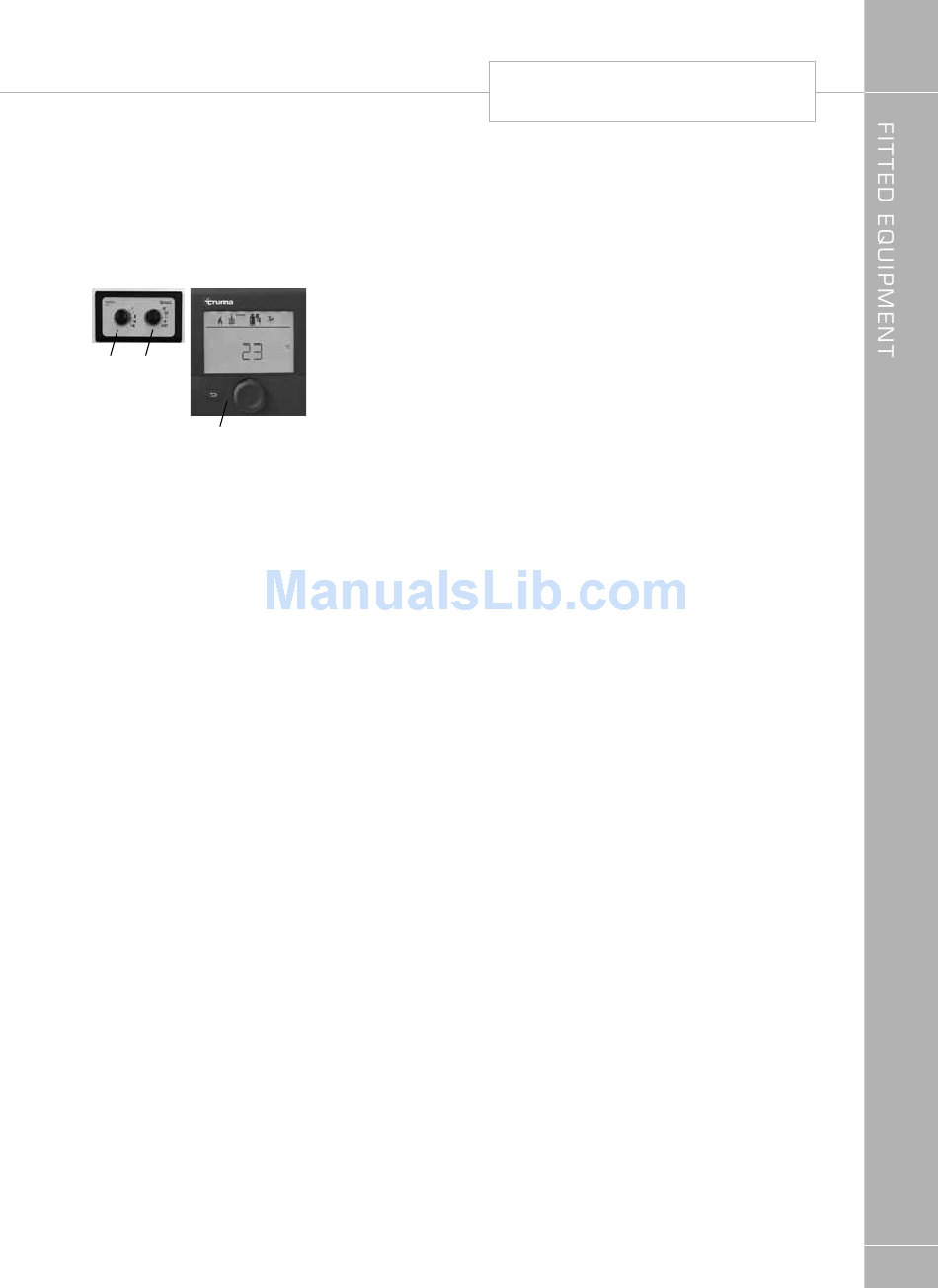

1 2
3
1. Control panel
2. Power selector switch
3. Digi-plus controller (see previous section)
4. Room temperature sensor
5. Cold water connection
6. Hot water connection
7. Gas connection
8. Hot air outlets
9. Recirculated air intake
10. Waste gas discharge
11. Combustion air infeed
12. Electronic control unit
13. Water container (10 litres)
14. Burner
15. Heat exchanger
16. Power electronics
17. Heating elements 230V
18. Overheating switch 230V
T RU MA COMBI 4E / 6E
For details of the Digi-plus Combi Controller
(3) see previous section, this section refers to
operation of the combi with separate control
panel (1) and power selector switch (2).
Function description
The liquid gas heater Combi E is a warm-air
heater with integrated hot water boiler (10 liter
volume). The burner operates fan-supported,
which ensures trouble-free function even
when on the move. The unit also has heating
elements for electrical operation.
In winter operation the heater can be used to
heat the room and simultaneously warm water.
If only warm water is required, select summer
operation.
3 different options are available for operating
the unit.
• gas operation only Propane / Butane for
autonomous use
• electrical operation only 230 V for stationary
use on camp sites
• operation only possible in winter mode.
Winter operation
In winter operation, the unit automatically
selects the required power setting according
to the temperature difference between the
temperature set on the control panel and the
current room temperature. When the boiler
is filled, the water is automatically heated as
well. The water temperature depends on the
selected operational mode and the heater
output.
All 3 energy selection options can be used for
winter deployment.
With gas operation the unit automatically
selects the output level that is required.
Depending on the fuse protection at the
camping site, power of 900 W (3.9 A) or 1800
W (7.8 A) can be manually selected for electrical
operation.
