TR U MA C OM BI N ATI ON BO IL E R
The intelligent heat management system
operation in dual fuel mode and allow the
Truma Combination boiler to prioritize the
electric power source over your gas, which all
conserve your gas supply.
Truma Digital Timer Control
Depending on the specification of your
caravan, the Truma CP-Plus controller may
be fitted to control the operation of the Truma
Combi appliance.
Safety instructions
• The device may only be operated if it is in
perfect working order.
• Arrange for malfunctions to be rectified
immediately. Only rectify malfunctions
yourself, if the remedy is outlined in the
troubleshooting information in these
Operating Instructions.
• Do not repair or modify the device!
• Only allow the manufacturer or its customer
service to repair a faulty device.
Note: If the power supply to the systems is
interrupted for longer than 20 minutes, the
time and date need to be entered again.
Intended use
The control panel Truma CP plus serves to
control and monitor a Combi heater and /
or a Truma air conditioning unit. The device
is designed for installation in caravans and
motor-caravans.
For clarity only the instructions relevant to
combi heating are included in this guide.
Instructions relevant to air conditioning should
be requested if an appropriate air conditioner
is fitted.
104

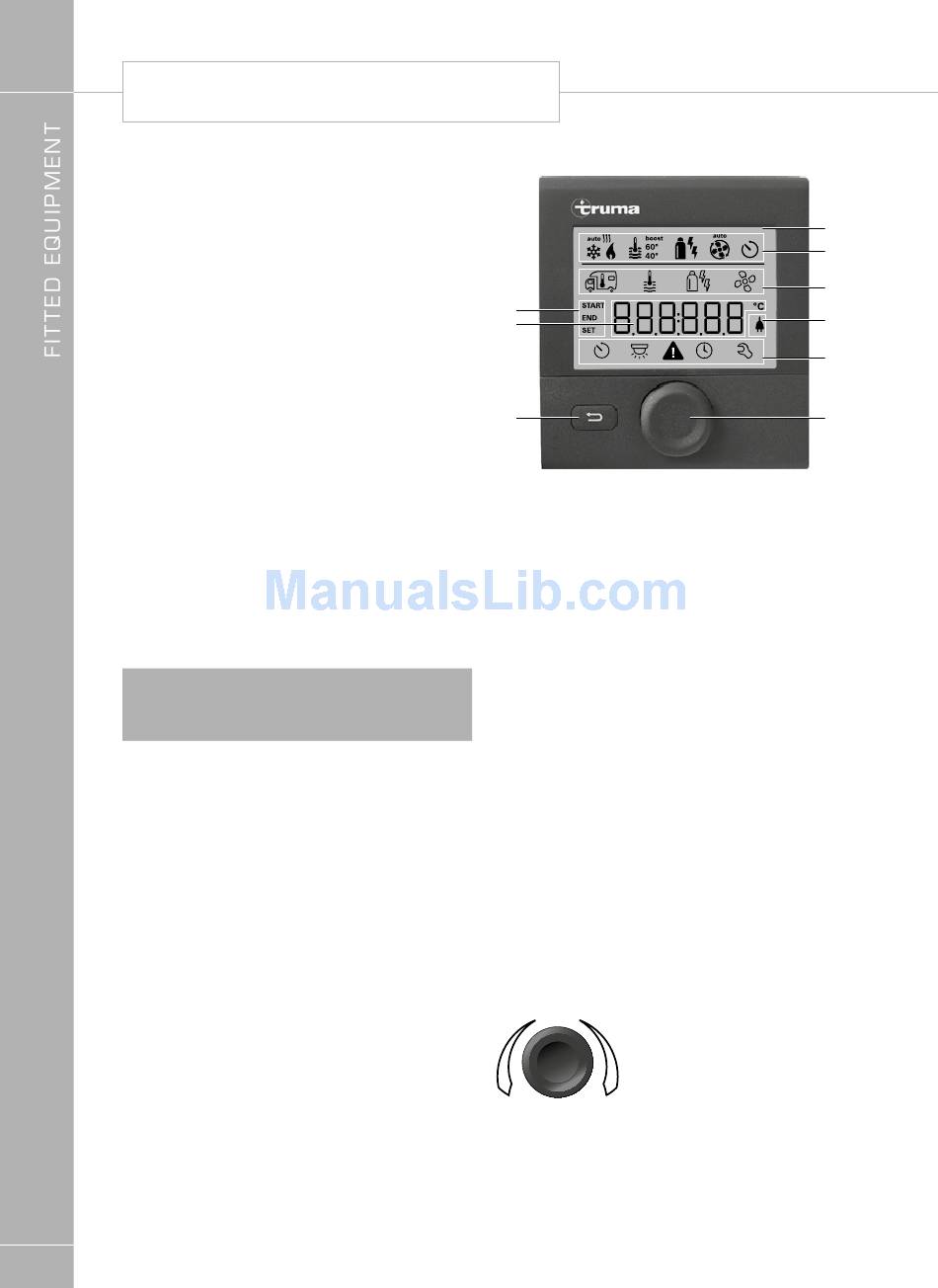

Display and control elements
6
7
9
1 - Display
2 - Status line
3 - Menu line (above)
4 - Menu line (below)
5 - Display of mains voltage 230 V (shore
power)
6 - Display timer
7 - Settings / values
8 - Control knob / push button
9 - Back button
The control knob / push button (8) is used to
select menus in the lines (3 + 4) and configure
the settings. These are shown via a display (1)
with a lighted background. Pressing the Back
button (9) takes the user back out of the menu
again.
Control knob / push button
The control knob / push button (8) is used to
select and change set values and parameters;
these can be saved by clicking the control
knob / push button. Selected menu items will
flash
Turn to the right (+)
• Menu is paged from left
to right.
- +
• Increase values.
1
2
3
5
4
8
