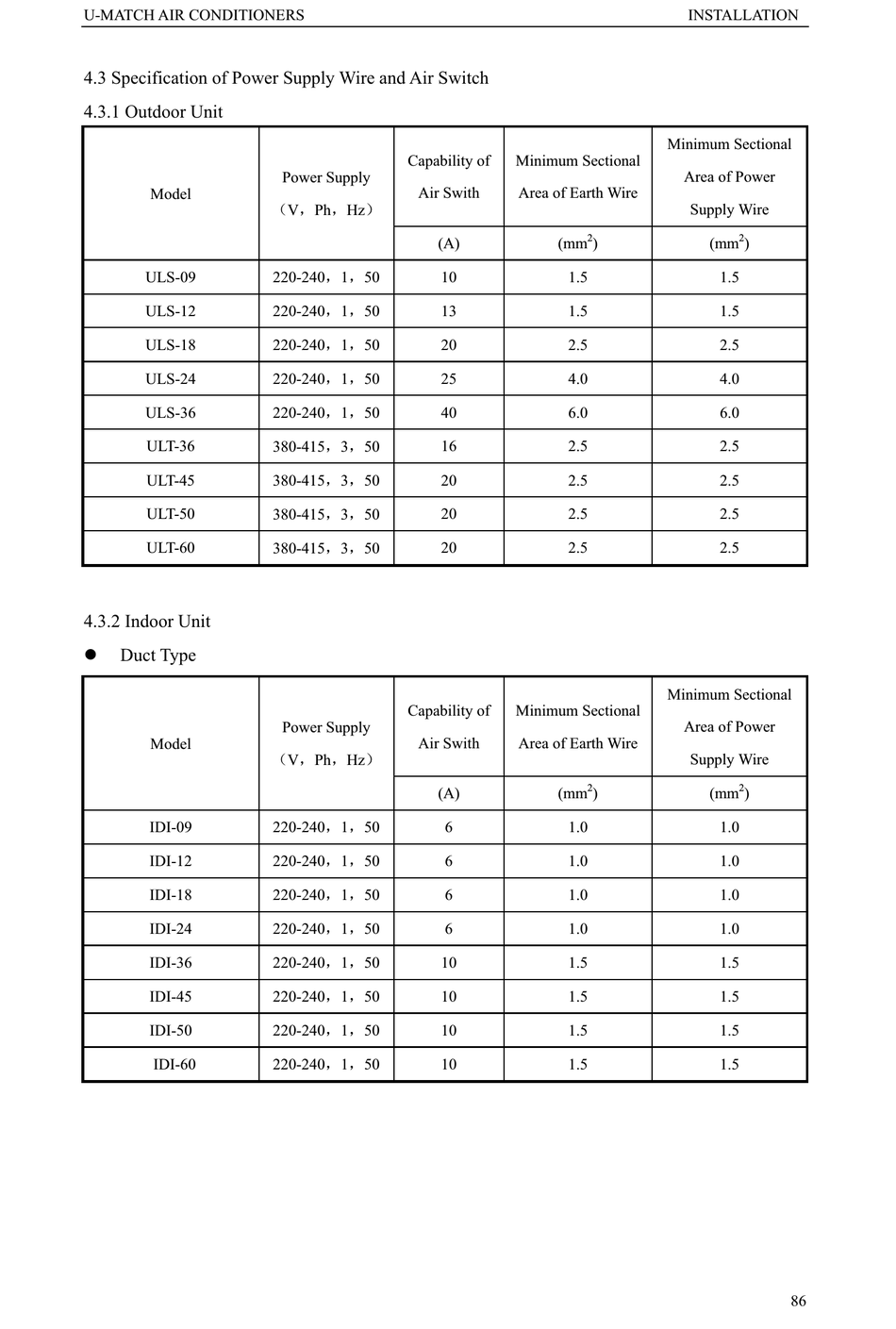

4.3 Specification of Power Supply Wire and Air Switch

4.3.1 Outdoor Unit
Model
ULS-09
ULS-12
ULS-18
ULS-24
ULS-36
ULT-36
ULT-45
ULT-50
ULT-60
4.3.2 Indoor Unit
z
Duct Type
Model
IDI-09
IDI-12
IDI-18
IDI-24
IDI-36
IDI-45
IDI-50
IDI-60
Capability of
Power Supply
Air Swith
V Ph Hz
(A)
220-240 1 50
220-240 1 50
220-240 1 50
220-240 1 50
220-240 1 50
380-415 3 50
380-415 3 50
380-415 3 50
380-415 3 50
Capability of
Power Supply
Air Swith
V Ph Hz
(A)
220-240 1 50
220-240 1 50
220-240 1 50
220-240 1 50
220-240 1 50
220-240 1 50
220-240 1 50
220-240 1 50
Minimum Sectional
Area of Earth Wire
2
(mm )
10 1.5
13 1.5
20 2.5
25 4.0
40 6.0
16 2.5
20 2.5
20 2.5
20 2.5
Minimum Sectional
Area of Earth Wire
2
(mm )
6 1.0
6 1.0
6 1.0
6 1.0
10 1.5
10 1.5
10 1.5
10 1.5
INSTALLATION
Minimum Sectional
Area of Power
Supply Wire
2
(mm )
1.5
1.5
2.5
4.0
6.0
2.5
2.5
2.5
2.5
Minimum Sectional
Area of Power
Supply Wire
2
(mm )
1.0
1.0
1.0
1.0
1.5
1.5
1.5
1.5
