INVENTOR u-match on/off Service Manual page 146

U-MATCH AIR CONDITIONERS

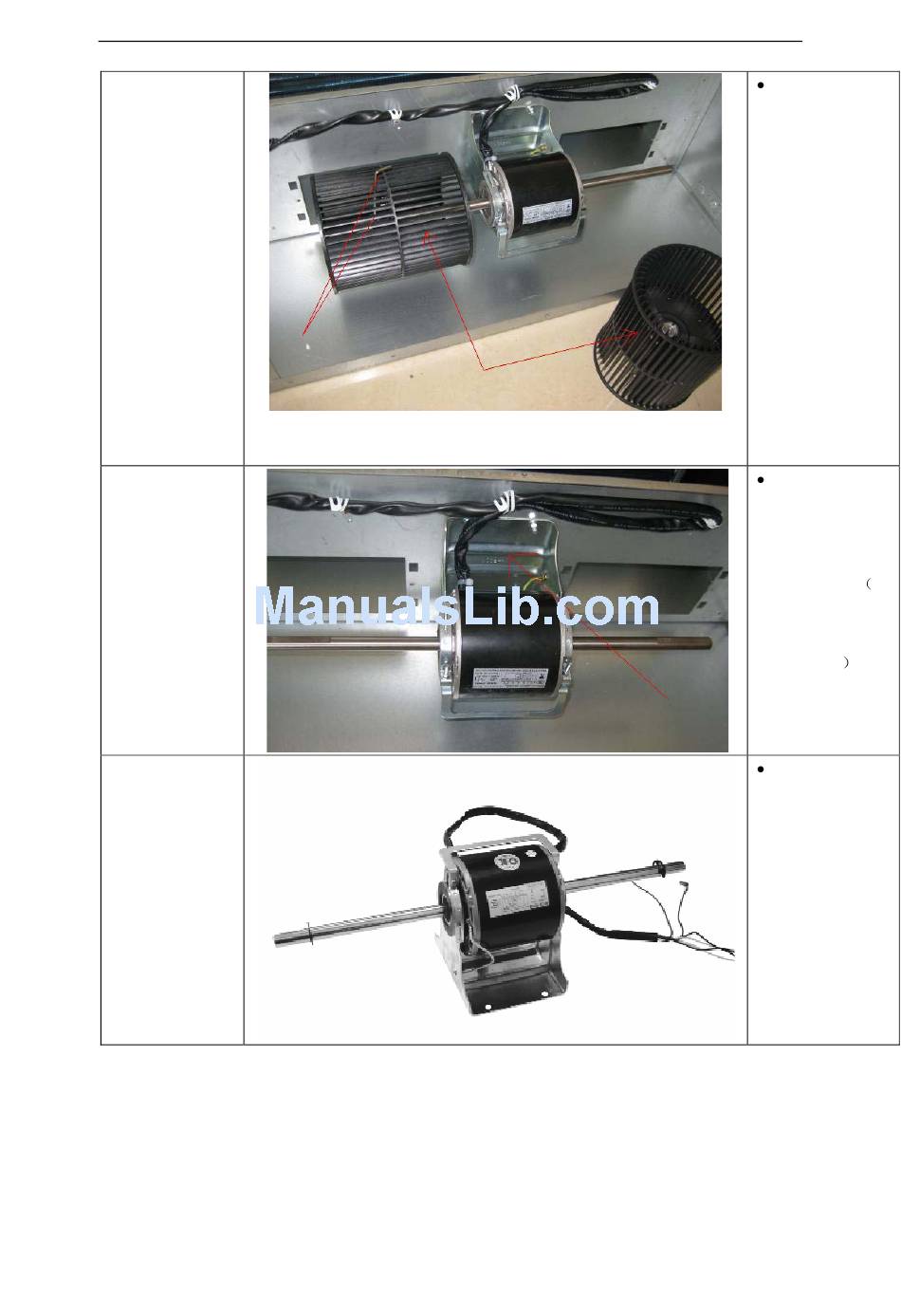

2. Disassembly of
centrifugal fan
3. Disassembly of
motor support
module
4. Disassembly of
motor
MAINTENANCE
Disassemble
fastening screws for
fans with
hexagonal. Remove
the centrifugal fan.
(As is shown in
Grapgh 7, the line
without an arrow
represents
hexagonal and the
position of fastening
screws under
influence, and arrow
represents
centrifugal fan.)
Disassemble
fastening screws for
motor support and
take away the motor
support modules As
shown in the graph,
the arrow represents
motor support
Disassemble
connecting wires for
motor inside
electrical parts box
and remove
motor.
143
