U-MATCH AIR CONDITIONERS
4.2.2 Ceiling Type

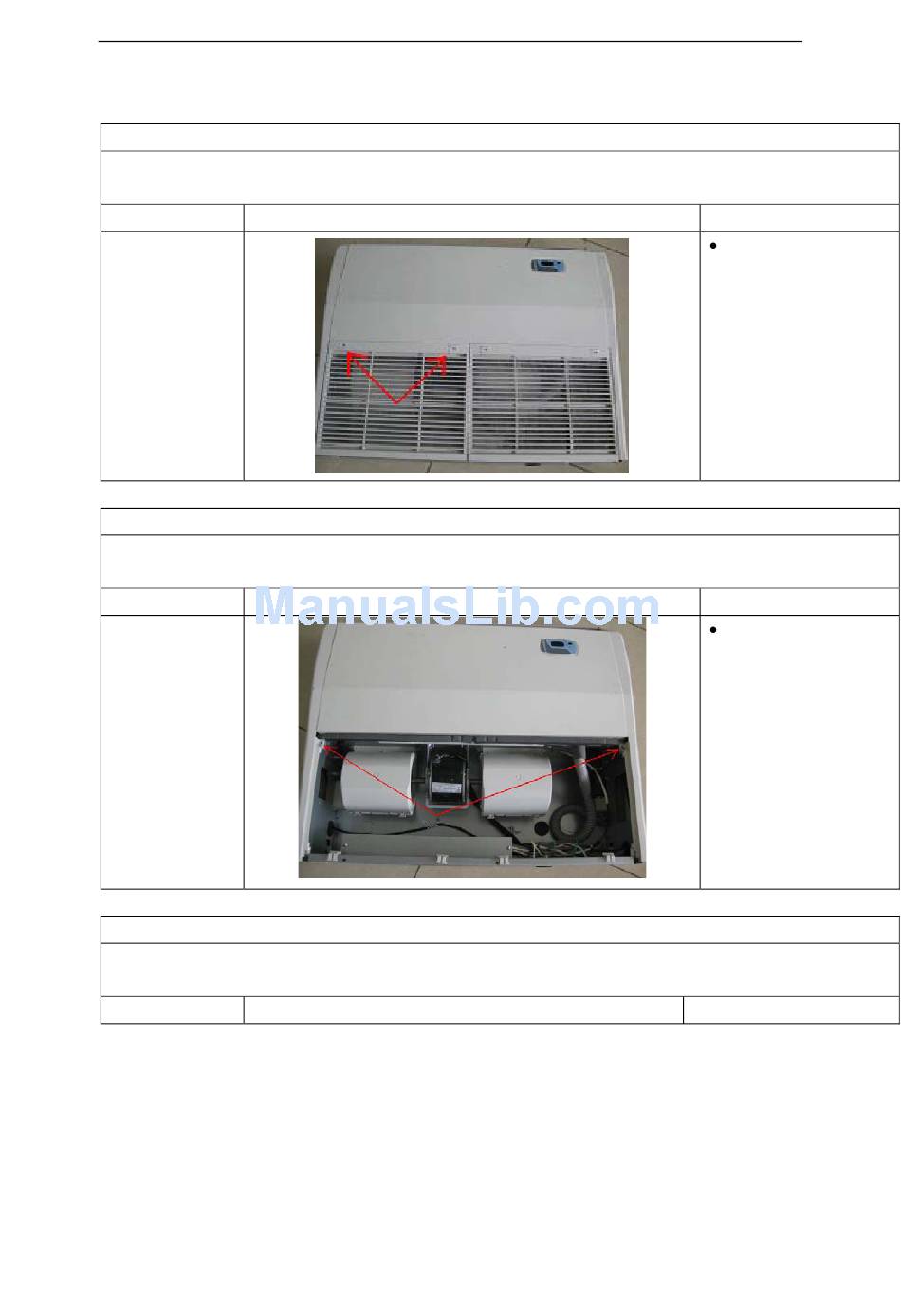

Disassembly of panel grating module
Remark: Make sure the power supply is cut off before disassembling and protect all the parts during disassembly. Do not put
filter screen near the high temperature heat source.
Step
Disassembly
of
panel
grating
module
Disassembly of right and left finishing plates
Remark: Make sure the power supply is cut off before disassembling and protect all the parts during disassembly. Do not scratch
the outer parts.
Step
Disassembly
of
right
and
left
finishing plates
Disassembly of panel parts
Remark: Make sure the power supply is cut off before disassembling and protect all the parts during disassembly. Do not scratch
the outer parts.
Step
Illustration
Illustration
Illustration
MAINTENANCE
Handling Instruction
Move down the clip of the
panel grating modules until
the panel grating is open. (As
is shown in the graph, arrow
represents the position of
bottons. There are two clips
for each grating.)
Handling Instruction
Disassemble the screws as
shown in the graph with
screwdriver and then push
upward to remove the right
and left finishing plates.(As
is shown in the graph, arrow
represents the position of
screws.)
Handling Instruction
149
