U-MATCH AIR CONDITIONERS
MAINTENANCE

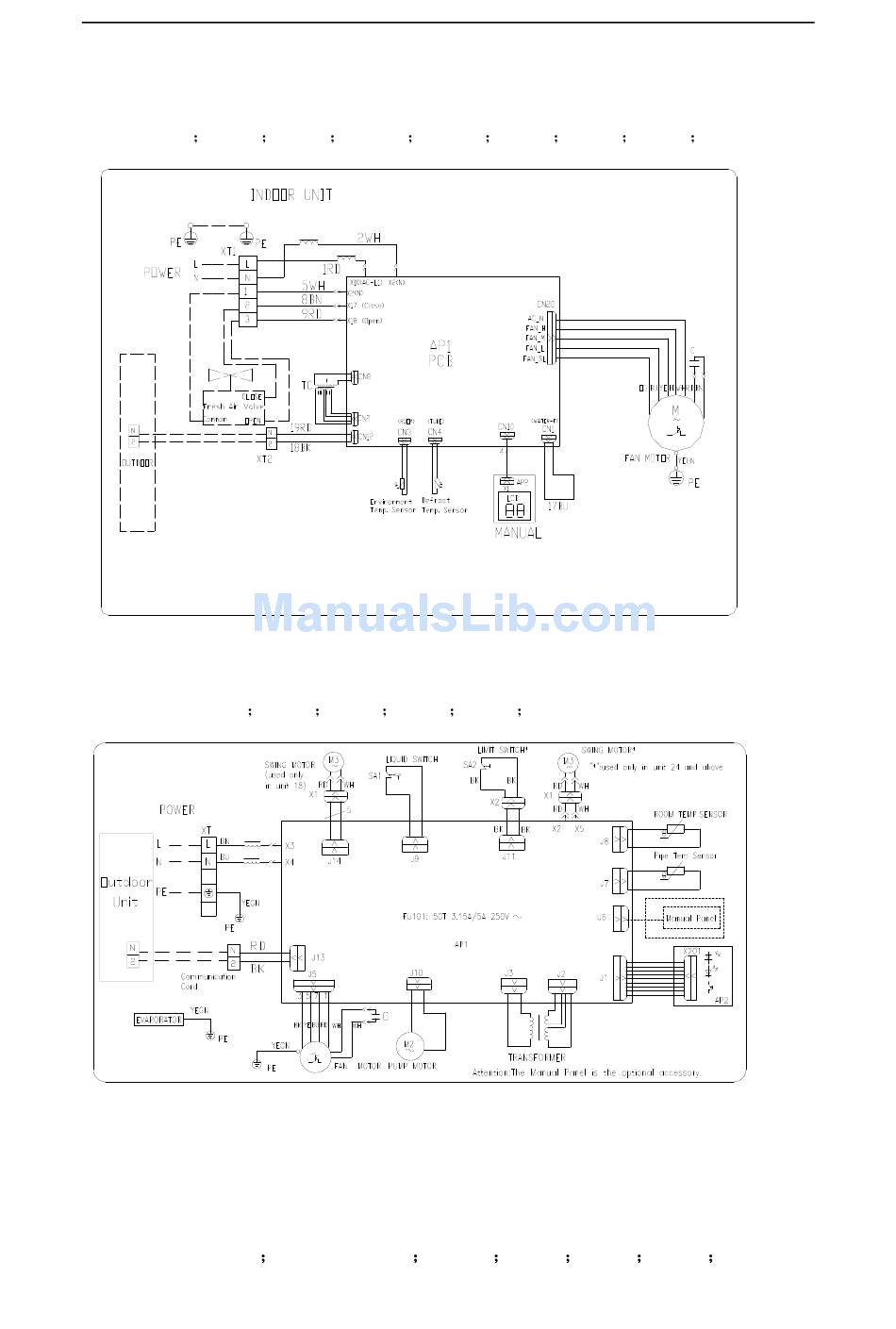

3.2 Wiring Diagram-Indoor units

3.2.1 Duct Type
Model: IDI-09 IDI-12 IDI-18 IDI-24
IDI-36
IDI-45 IDI-50 IDI-60
3.2.2 Ceiling Type
Model: ICI-12 ICI-18 ICI-24 ICI-36 ICI-45 ICI-50
3.2.3 Cassettle Type
Model: IKI-09
IKI-12 IKI-18
IKI-24 IKI-36 IKI-45 IKI-50
111
