U-MATCH AIR CONDITIONERS

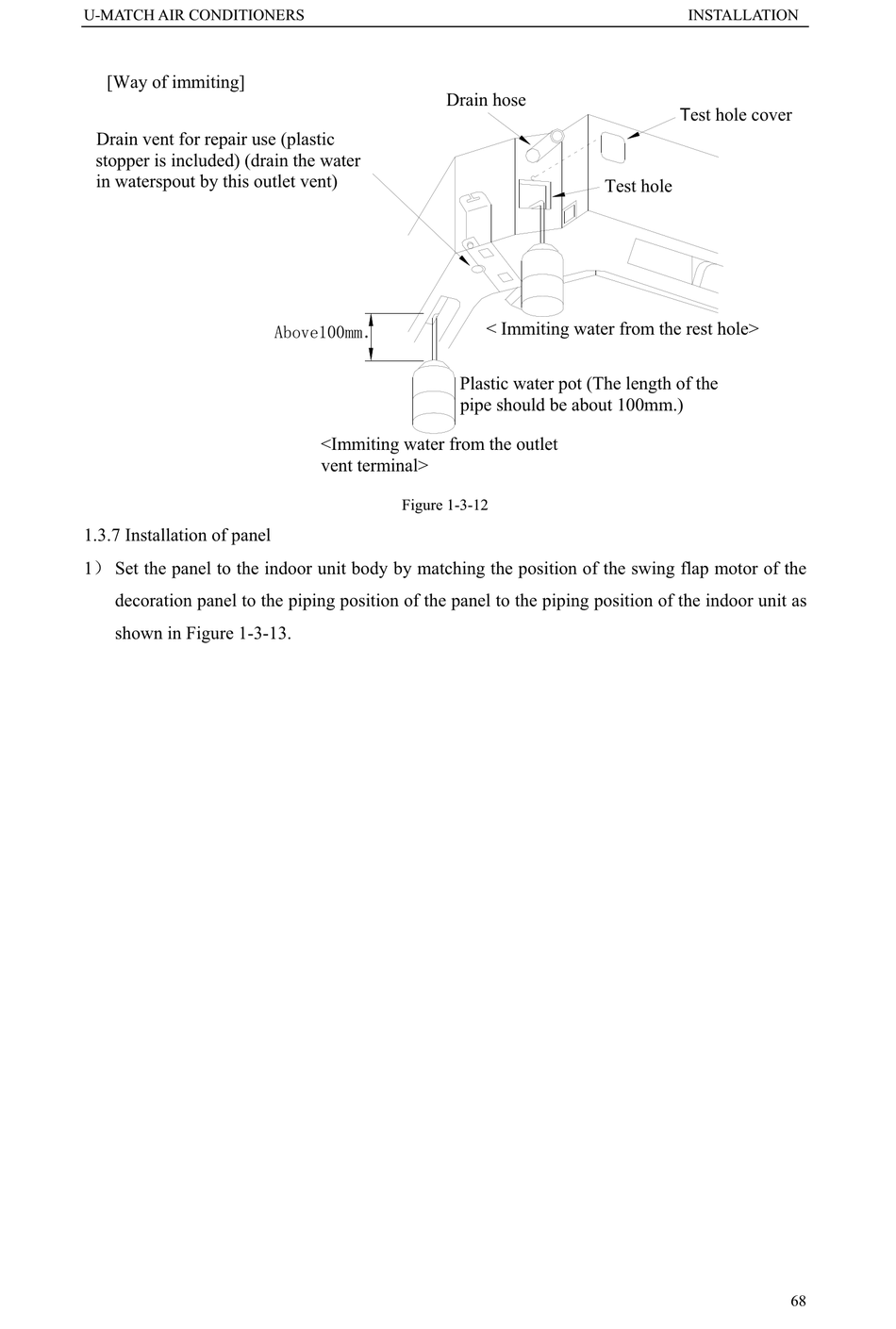

[Way of immiting]
Drain vent for repair use (plastic
stopper is included) (drain the water
in waterspout by this outlet vent)
1.3.7 Installation of panel
1
Set the panel to the indoor unit body by matching the position of the swing flap motor of the
decoration panel to the piping position of the panel to the piping position of the indoor unit as
shown in Figure 1-3-13.
Drain hose
< Immiting water from the rest hole>
Plastic water pot (The length of the
pipe should be about 100mm.)
<Immiting water from the outlet
vent terminal>
Figure 1-3-12
INSTALLATION
T
est hole cover
Test hole
68
