INVENTOR u-match on/off Service Manual page 150

U-MATCH AIR CONDITIONERS

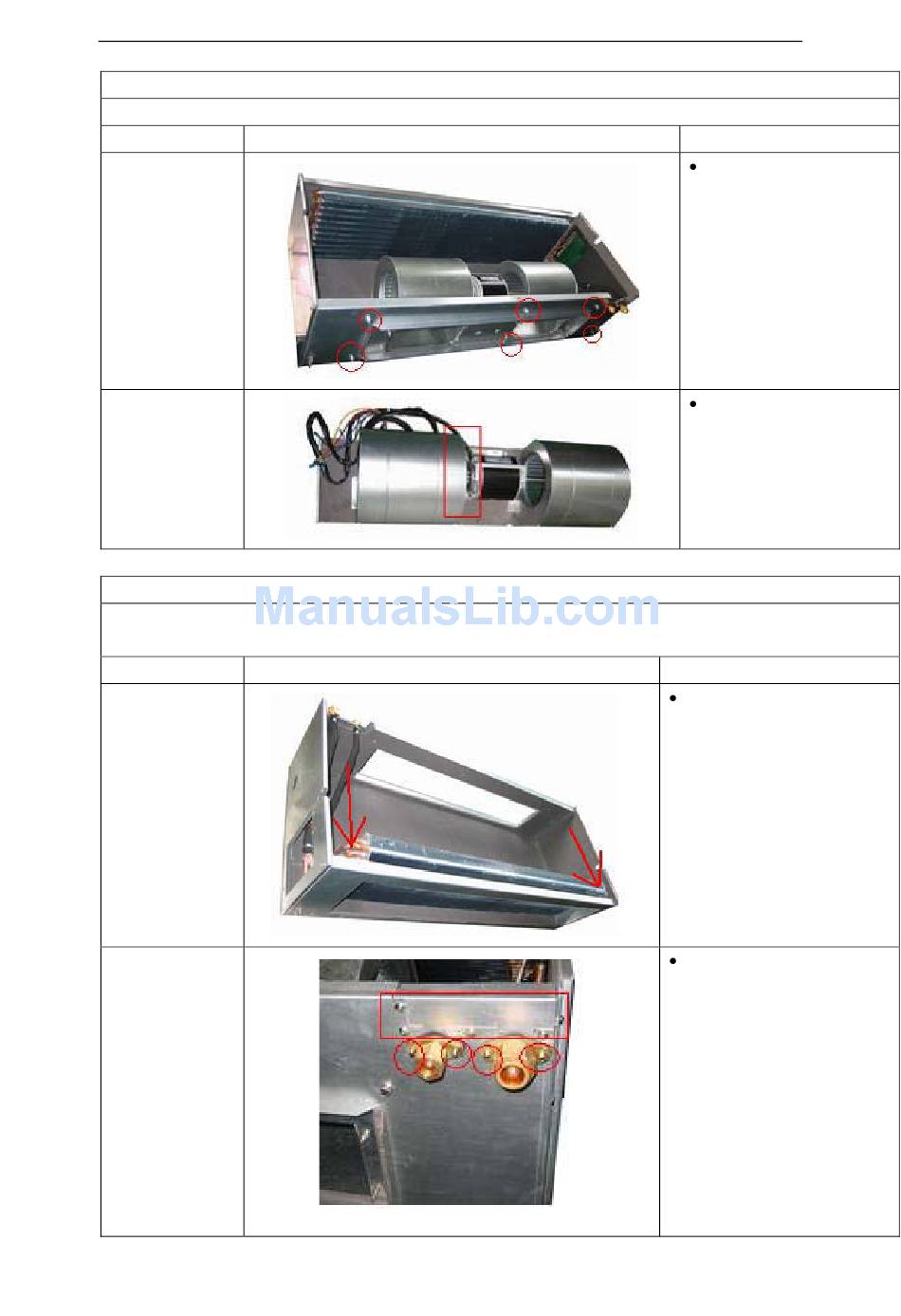

Disassembly of fan and motor
Remark: Make sure the power supply is cut off before disassembling and protect all the parts during disassembly.
Step
1. Disassembly of
fan
2. Disassembly of
motor
Disassembly of evaporator
Remark: Make sure the power supply is cut off and protect the copper tube and aluminum fin. If the time for disassembly shall
be long, put the copper tube under pressurized condition.
Step
1. Disassembly of
fixing screws on
the side panels of
evaporator
2. Disassemble
fastening screws
connecting
evaporator valve
seal-plate and joint
flange
Illustration
Illustration
MAINTENANCE
Handling Instruction
Disassemble the fixing screws
on the fan components. (As is
shown in Graph 10, circle
represents 6 screws.)
Disassemble the fastening
screws on the fan and motor.
Remove the fan. (As is shown
in Graph 11, box represents
screws.)
Handling Instruction
Disassemble the fastening screw
connecting left and right side
panels on the evaporator and the
upper cover plate. (As is shown in
the arrow's direction in Graph 12.)
Disassemble the fastening screws
on the valve seal-plate and remove
the valve seal-plate. Disassemble
the fastening screws on
evaporator's joint flange. (As is
shown in the graph, box represents
fastening screws on seal-plates
while circle the fastening screws on
joing flange.
147
