2 Precautions:
‹ Improper screwing of the screws may cause the troubles shown in Figure 1-3-14.
‹ If gap is still left between the ceiling and the panel after screwing the screws, readjust the
height of the indoor unit body (Refer to Figure 1-3-15)
‹ After fixing be sure no gap left between the ceiling and the panel
3 Wiring of the decoration panel.
‹ Connect the joints for swing flap motor lead wire (at 2 places) installed on the panel (Refer to
Figure 1-3-16)

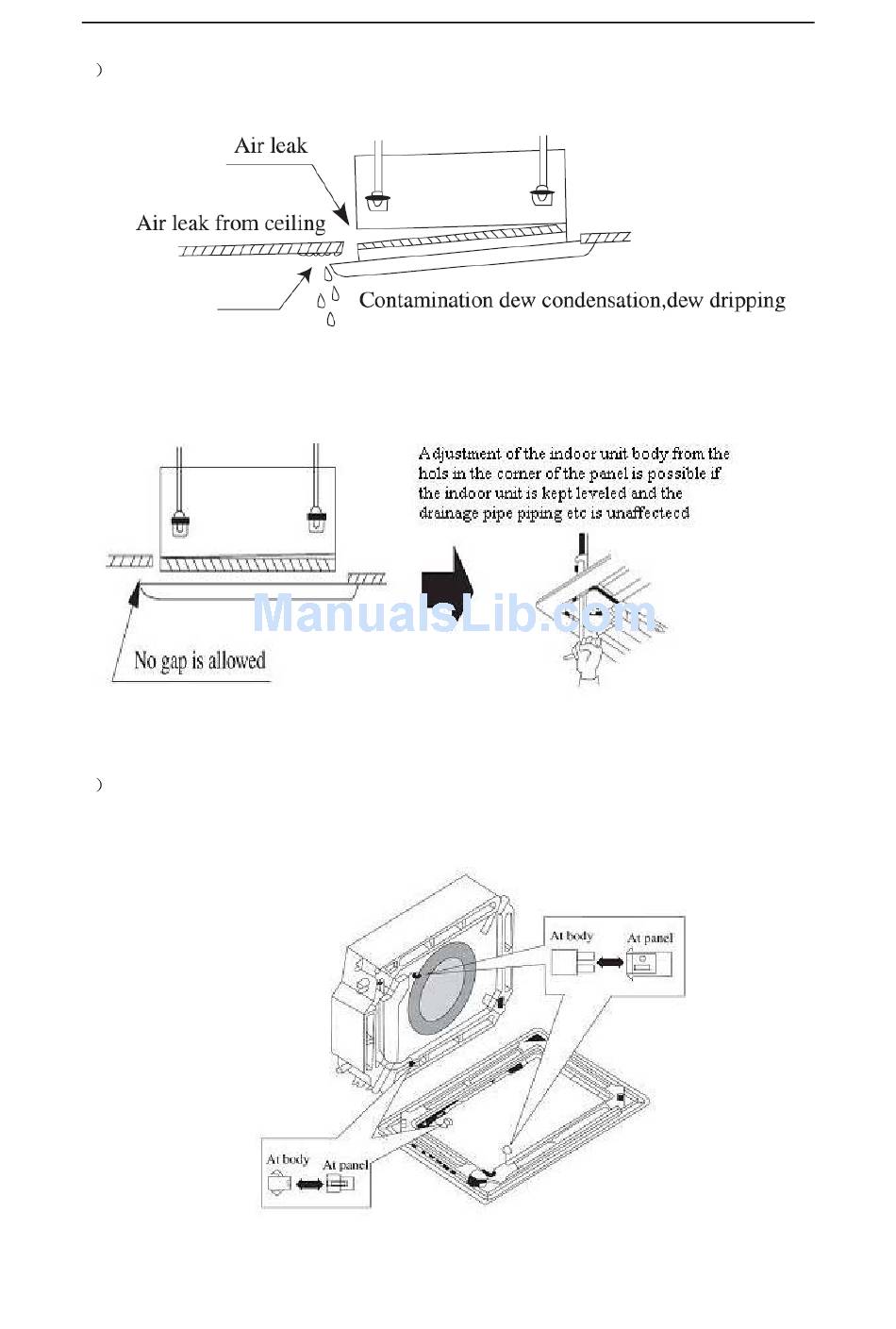

Figure 1-3-14
Figure 1-3-15
Figure 1-3-16
