PANEL DESCRIPTION

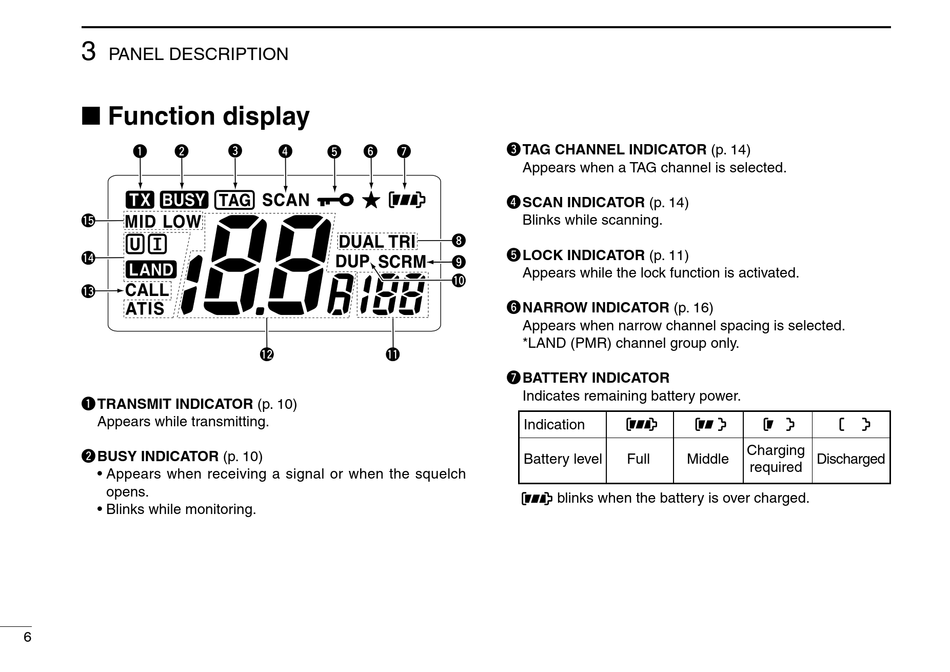

■ Function display

q w
!5
!4
!3
q TRANSMIT INDICATOR (p. 10)
Appears while transmitting.
w BUSY INDICATOR (p. 10)
• Appears when receiving a signal or when the squelch
opens.
• Blinks while monitoring.
6
e r t y u
!2 !1
e TAG CHANNEL INDICATOR (p. 14)
Appears when a TAG channel is selected.
r SCAN INDICATOR (p. 14)
Blinks while scanning.
i
t LOCK INDICATOR (p. 11)
o
Appears while the lock function is activated.
!0
y NARROW INDICATOR (p. 16)
Appears when narrow channel spacing is selected.
*LAND (PMR) channel group only.
u BATTERY INDICATOR
Indicates remaining battery power.
Indication
Battery level Full
blinks when the battery is over charged.
Charging
Middle Discharged
required
