9
BATTERY CHARGING

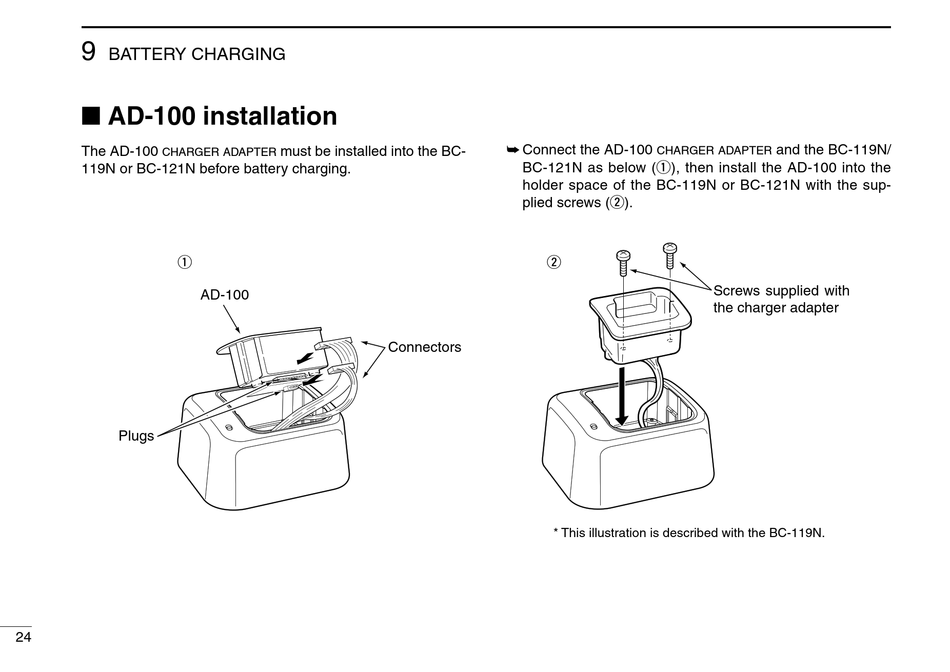

■ AD-100 installation
The AD-100
charger adapter
119N or BC-121N before battery charging.
q
Plugs
24
must be installed into the BC-
AD-100
➥ Connect the AD-100
BC-121N as below (q), then install the AD-100 into the
holder space of the BC-119N or BC-121N with the sup-
plied screws (w).
w
Connectors
* This illustration is described with the BC-119N.
and the BC-119N/
charger adapter
Screws supplied with
the charger adapter
