Land (Pmr) Channel Operation; Land (Pmr) Channel Group; Function Display - Icom IC-M87 Instruction Manual

7

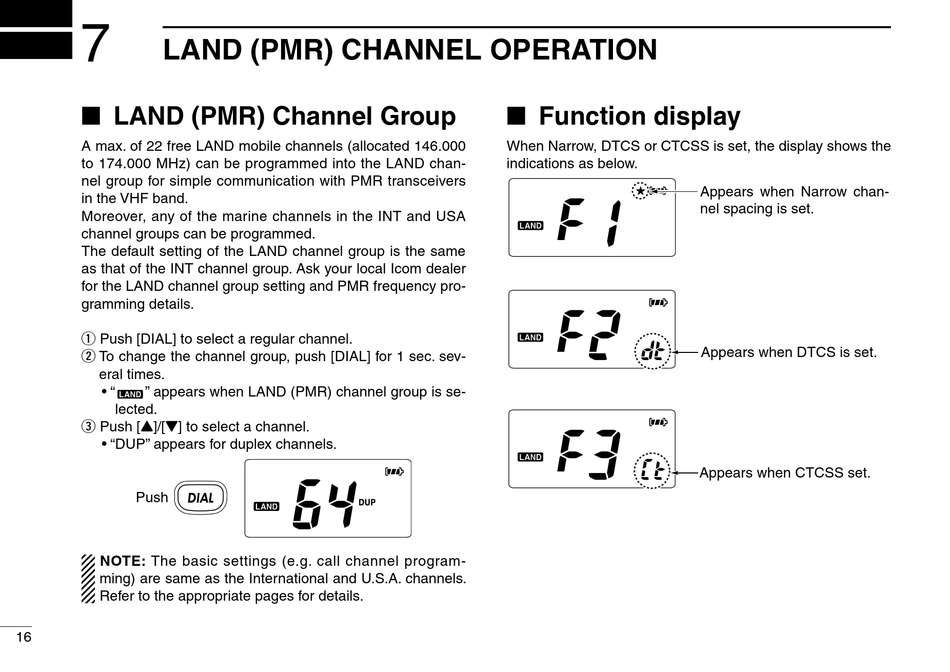

LAND (PMR) CHANNEL OPERATION

■ LAND (PMR) Channel Group

A max. of 22 free LAND mobile channels (allocated 146.000
to 174.000 MHz) can be programmed into the LAND chan-
nel group for simple communication with PMR transceivers
in the VHF band.
Moreover, any of the marine channels in the INT and USA
channel groups can be programmed.
The default setting of the LAND channel group is the same
as that of the INT channel group. Ask your local Icom dealer
for the LAND channel group setting and PMR frequency pro-
gramming details.
q Push [DIAL] to select a regular channel.
w To change the channel group, push [DIAL] for 1 sec. sev-
eral times.
• " " appears when LAND (PMR) channel group is se-
lected.
e Push [Y]/[Z] to select a channel.
• "DUP" appears for duplex channels.
Push
NOTE: The basic settings (e.g. call channel program-
ming) are same as the International and U.S.A. channels.
Refer to the appropriate pages for details.
16

■ Function display

When Narrow, DTCS or CTCSS is set, the display shows the
indications as below.
Appears when Narrow chan-
nel spacing is set.
Appears when DTCS is set.
Appears when CTCSS set.
