Charging Connections - Icom IC-M87 Instruction Manual

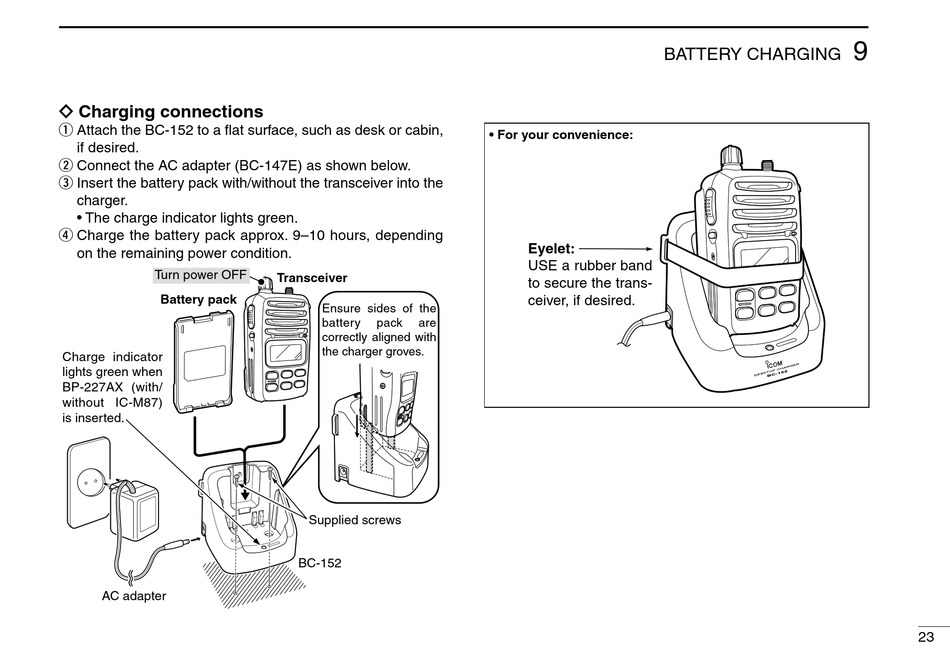

ï Charging connections
q Attach the BC-152 to a flat surface, such as desk or cabin,
if desired.
w Connect the AC adapter (BC-147E) as shown below.
e Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights green.
r Charge the battery pack approx. 9–10 hours, depending
on the remaining power condition.
Turn power OFF
Battery pack
Charge indicator
lights green when
BP-227AX (with/
without IC-M87)
is inserted.
AC adapter
Transceiver
Ensure sides of the
battery pack are
correctly aligned with
the charger groves.
Supplied screws
BC-152
BATTERY CHARGING
• For your convenience:
Eyelet:
USE a rubber band
to secure the trans-
ceiver, if desired.
9
23
