■ Optional battery chargers

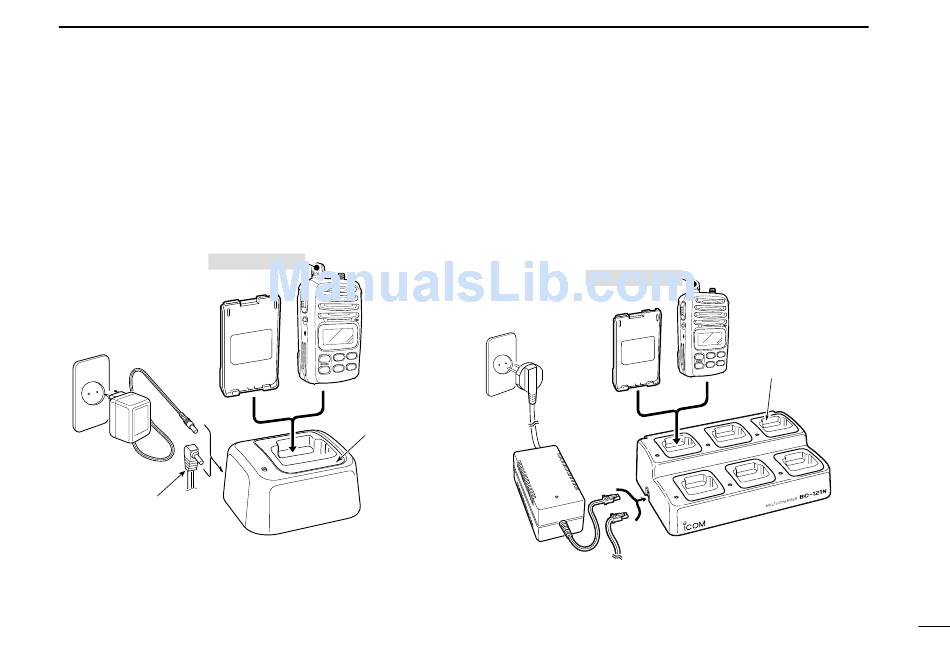

D Rapid charging with the BC-119N+AD-100
The optional BC-119N provides rapid charging of battery
packs. The following are additionally required.
• AD-100 charger adapter
• An AC adapter (may be supplied with BC-119N depending
on version).
Turn power OFF
Battery pack
AC adapter
(Not supplied with
some versions.)
OPC-515L or
CP-17L
Optional OPC-515L (for 13.8 V
power source) or CP-17L (for
12 V cigarette lighter socket)
can be used instead of the AC
adapter.
D Rapid charging with the BC-121N+AD-100
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following are additionally re-
quired.
• Six AD-100 charger adapters
• An AC adapter (BC-157) or the DC power cable OPC-656,
supplied with the BC-121N.
Transceiver
AD-100 charger
adapter is installed
in BC-119N.
BATTERY CHARGING
Turn power OFF
Battery pack
AC adapter
(purchased
separately)
DC power cable (supplied with the BC-121N)
Connect with the DC power supply;
13.8 V/7 A minimum
9
Transceiver
AD-100 charger
adapters are installed
in each slot.
25
