Quick Start Guide
1

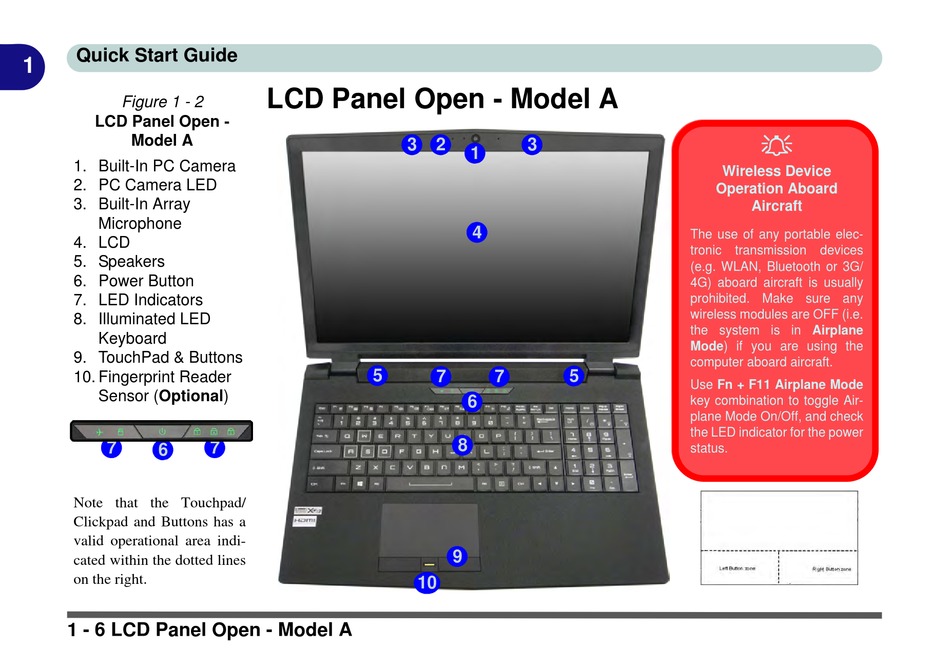

Figure 1 - 2
LCD Panel Open -
Model A
1. Built-In PC Camera
2. PC Camera LED
3. Built-In Array
Microphone
4. LCD
5. Speakers
6. Power Button
7. LED Indicators
8. Illuminated LED
Keyboard
9. TouchPad & Buttons
10. Fingerprint Reader
Sensor (Optional)
7
6
Note that the Touchpad/
Clickpad and Buttons has a
valid operational area indi-
cated within the dotted lines
on the right.

1 - 6 LCD Panel Open - Model A

LCD Panel Open - Model A
5
7
3 2 3
1
4
5
7 7
6
8
9
10

Wireless Device
Operation Aboard
Aircraft
The use of any portable elec-
tronic transmission devices
(e.g. WLAN, Bluetooth or 3G/
4G) aboard aircraft is usually
prohibited. Make sure any
wireless modules are OFF (i.e.
the system is in Airplane
Mode) if you are using the
computer aboard aircraft.
Use Fn + F11 Airplane Mode
key combination to toggle Air-
plane Mode On/Off, and check
the LED indicator for the power
status.
