Left Tail/Stop Lamp - Jeep 200 Cherokee Service Manual

XJ
1 2
LEFT SIDE
MARKER LAMP
(EXCEPT BUILT
-UP-EXPORT)
LEFT
SOUNDBAR
SPEAKER
1 2
LEFT SPEED
CONTROL
SWITCH
1 2 3
LEFT TAIL/
STOP LAMP
XJI08063

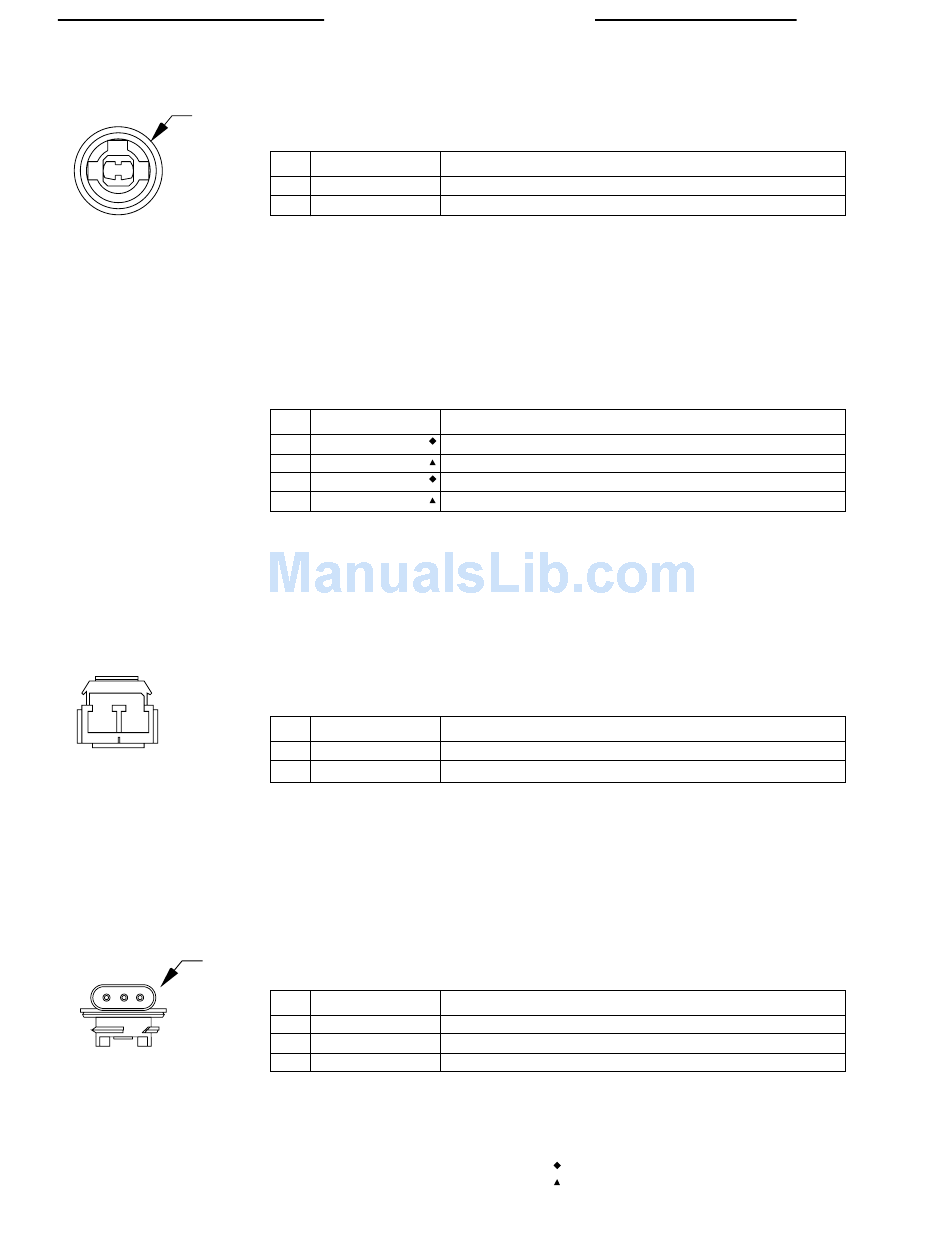

8W-80 CONNECTOR PIN-OUTS
NATURAL
CAV CIRCUIT
1 L77 20BR
2 L61 20LG
CAV CIRCUIT
A X57 18BR/LB
A X91 16BR/DB
B X51 18BR/YL
B X93 16BR/YL
CAV CIRCUIT
1 K167 20BR/YL
2 V37 20RD/LG
BLACK
CIRCUIT
CAV
1 Z1 18BK
2 L77 18BR
3 L50 18WT/TN
FUNCTION
FUSED LEFT HEADLAMP SWITCH OUTPUT
LEFT TURN SIGNAL
FUNCTION
LEFT REAR SPEAKER (-)
AMPLIFIED LEFT REAR SPEAKER (+)
LEFT REAR SPEAKER (+)
AMPLIFIED LEFT REAR SPEAKER (-)
FUNCTION
SENSOR GROUND
SPEED CONTROL SWITCH SIGNAL
FUNCTION
GROUND
FUSED LEFT HEADLAMP SWITCH OUTPUT
BRAKE LAMP SWITCH OUTPUT
4 SPEAKER SYSTEM
6 SPEAKER SYSTEM
8W - 80 - 63
J008W-7
