Hollow Mode
Hollow Mode
Usage:
Used to determine which kind of Data Matrix elements will be processed.
Definition:
When set to Regular Elements, the imager will decode Data Matrix
symbols with solid elements but will not decode Data Matrix symbols with
hollow elements. When set to Hollow Elements, the imager will decode
Data Matrix symbols with outlined, hollow elements but will not decode
Data Matrix symbols with solid elements.
Serial Cmd:
<K517,hollow mode
Default:
Regular Elements
Options:
0 = Regular Elements
Note: Hollow Mode is not supported when Q-Mode is enabled.

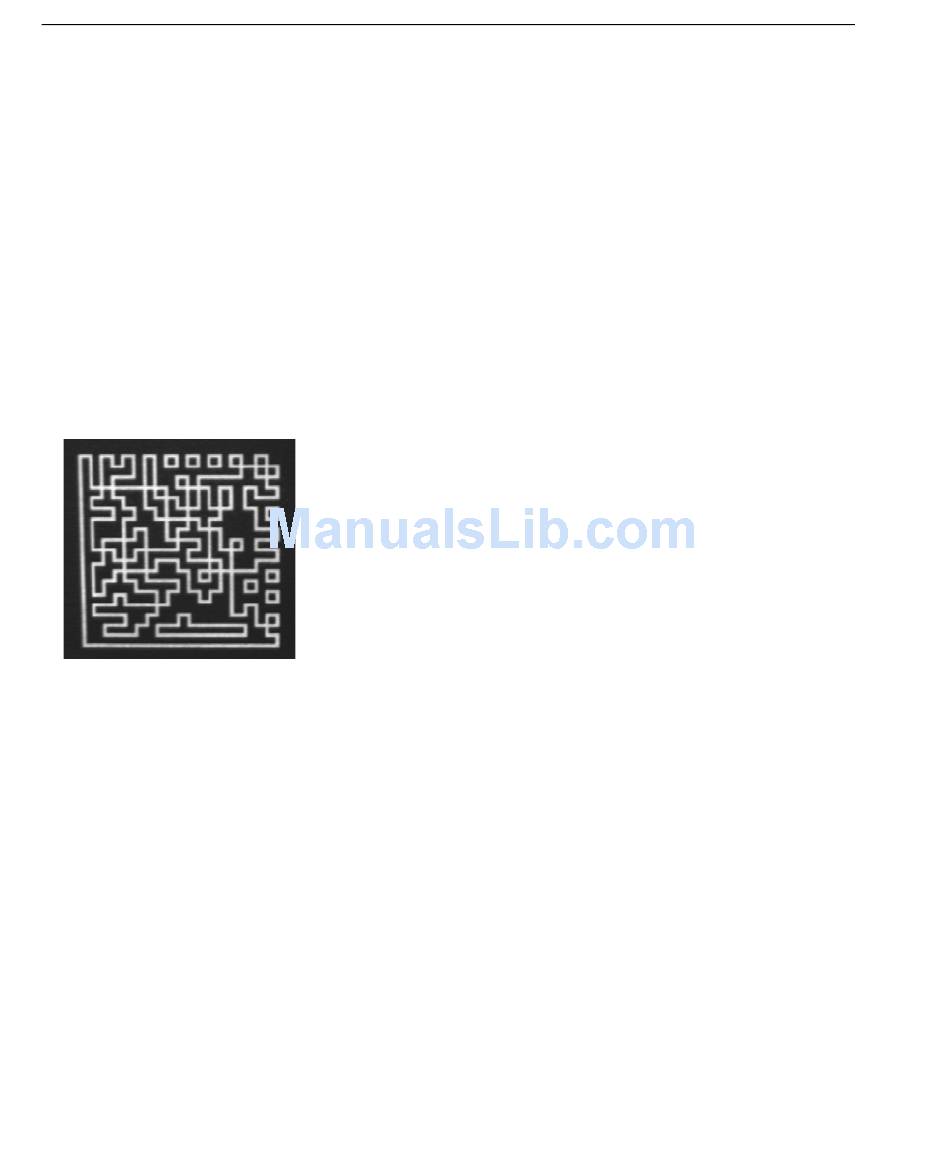

The image below is an example of a Data Matrix symbol with hollow elements.
10-26
status>
1 = Hollow Elements
Quadrus MINI Imager User's Manual
