LVS
9570 Operating Instructions
®
P/N 84-9310010-02 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVS 9570 and is the answer not in the manual?

Questions and answers

Related Manuals for Microscan LVS 9570

Summary of Contents for Microscan LVS 9570

  • Page 1 9570 Operating Instructions ® P/N 84-9310010-02 Rev A...

  • Page 2: Technical Support

    All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Microscan manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Microscan.

  • Page 3: Table Of Contents

    LVS-9570 Operating Instructions Table of Contents IMPORTANT INFORMATION TO READ..................4 SAFETY INSTRUCTIONS ....................... 4 ABOUT THE LVS-9570 ........................5 LVS-95XX SOFTWARE STEPS ...................... 6 Log On to the LVS-95XX Software ..................... 6 Turn on the LVS-9570 Camera ....................7 Calibrate the LVS-9570 .......................

  • Page 4: Important Information To Read

    Do not attempt to work on the system with the USB cable connected.  To avoid damaging the system, unplug the USB cable before cleaning.  If the system ever needs repair, consult Microscan or your Microscan distributor. LVS-9570 Operating Instructions Page 4 of 27...

  • Page 5: About The Lvs-9570

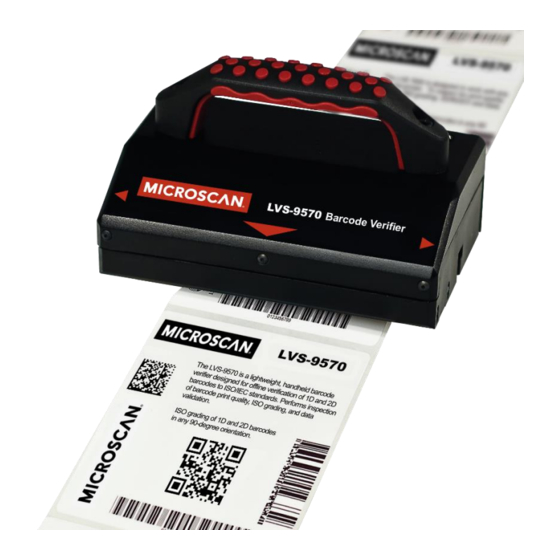

    LVS-9570 Operating Instructions About the LVS-9570 The LVS-9570 is a handheld barcode verifier designed for offline verification of barcodes to ISO/IEC standards. The LVS-9570 is unique in the world of ISO verification due to its ease of use and ability to verify linear (1D) and two-dimensional (2D) codes using a lightweight, handheld verifier;...

  • Page 6: Lvs-95Xx Software Steps

    LVS-9570 Operating Instructions LVS-95XX Software Steps Refer to the sections below for steps on:  Logging on to the LVS-95XX software  Turning on the camera  Calibrating the LVS-9570 Note: Refer to the “LVS-95XX Series Software Installation Guide” for step-by-step instructions on installing the LVS-95XX software;...

  • Page 7: Turn On The Lvs-9570 Camera

    LVS-9570 Operating Instructions Turn on the LVS-9570 Camera 1. To ensure the LVS-9570 camera is turned on, click the “Setup” tab and verify that “9570” is selected in the “Camera” section. Note: If you are using only an LVS-9570, then “9570” will be the only camera listed in the “Camera”...

  • Page 8: Calibrate The Lvs-9570

    LVS-9570 Operating Instructions Calibrate the LVS-9570 IMPORTANT: Calibrate the LVS-9570 at least weekly, if not daily. The entire calibration process takes less than 30 seconds to complete and ensures the LVS-9570 is certified according to industry standards.  The Calibrated Conformance Standard Test Card should be replaced every two years. ...
  • Page 9 LVS-9570 Operating Instructions 2. Place the EAN/UPC Calibrated Conformance Standard Test Card (“test card”) on a flat surface. 3. Center the LVS-9570 at the top of the test card. The left and right arrows on the LVS-9570 indicate the sensor location. Position the LVS-9570 at the top of the test card.
  • Page 10 LVS-9570 Operating Instructions 4. Slowly pull down the LVS-9570 approximately 3” (76 mm) to 4” (101.6 mm). The EAN-13 and UPC-A Master Grade barcodes appear in the field of view on the Calibration tab. EAN-13 and UPC-A Master Grade barcodes appearing in the field of view. LVS-9570 Operating Instructions Page 10 of 27...
  • Page 11 Re-scan the EAN-13 and UPC-A Master Grade barcodes and follow the above steps to calibrate. It may take 2 or 3 attempts before calibration is complete. If calibration continues to fail, contact Microscan or your Microscan representative for further instructions.
  • Page 12 LVS-9570 Operating Instructions Station Operations Manual” for detailed steps on grading barcodes; this manual is located on the installation media supplied with your system. After drawing a box around the PASS portion of the barcode, the LVS-9570 indicator light turns one of the following colors: Color Description...

  • Page 13: Hardware Overview

    LVS-9570 Operating Instructions Hardware Overview The LVS-9570 is comprised of two major hardware components: the sensor (protected by a glass covering) and a rubber roller. Both of these components must make contact with the surface of the label. The sensor detects the image and the roller activates an encoder that allows the LVS-95XX software to collect the image.

  • Page 14: Scanning Direction, Speed, And Position

    LVS-9570 Operating Instructions Scanning Direction, Speed, and Position The LVS-9570 has a scanning width of 5.4” (137.16 mm) (including the quiet zone) for barcodes in a picket fence orientation and a scanning length of 12.0” (305 mm) (including the quiet zone) for barcodes in a ladder orientation.

  • Page 15: Quiet Zone

    LVS-9570 Operating Instructions Quiet Zone The Quite Zone is a clear space preceding the start character of a barcode symbol and follows the stop character. When scanning a barcode symbol, you must allow enough space for the Quiet zone. The required Quiet Zone space for each barcode varies by symbology.

  • Page 16: Scanning Direction

    LVS-9570 Operating Instructions Scanning Direction The LVS-9570 reads barcode labels in one direction only and must be “pulled” through a barcode label; it does not detect anything when “pushed” through a barcode label. IMPORTANT: An image is collected only when the roller is rotating while the sensor passes over the barcode image.

  • Page 17: Scanning Speed

    LVS-9570 Operating Instructions Scanning Speed You must slowly pull the LVS-9570 through a barcode image. If the LVS-9570 is pulled too quickly through an image, an “Overspeed Problem” message appears on the computer monitor and the image will not be captured. LVS-9570 Operating Instructions Page 17 of 27...

  • Page 18: Scanning Positions

    LVS-9570 Operating Instructions Scanning Positions It is important to maintain a perpendicular orientation to the barcode image. Failure to do so may result in a distorted image. If the image displayed on the monitor appears distorted, scan the image again making sure the LVS-9570 is using a perpendicular orientation to the barcode and is pulled slowly.

  • Page 19: Correct And Incorrect Images

    LVS-9570 Operating Instructions Correct and Incorrect Images Correctly Scanned Image:  Incorrectly Scanned Image: The image below shows an incorrectly scanned image created by sliding the LVS-9570 in a non- perpendicular way. When scanning an image, the LVS-9570 must maintain a perpendicular orientation to the barcode image.
  • Page 20 LVS-9570 Operating Instructions Incorrectly Scanned Image: The image below shows an incorrectly scanned image created by sliding the LVS-9570 horizontally across a barcode image.  LVS-9570 Operating Instructions Page 20 of 27...

  • Page 21: Scanning Labels Applied To Products

    LVS-9570 Operating Instructions Scanning Labels Applied to Products IMPORTANT: The LVS-9570 reads flat surfaces only. Uneven surfaces, such as a bag of potato chips for example, cannot be read due to the uneven surface. An image is collected only when the roller is rotating while the sensor passes over the image of the barcode and only if the user pulls down on the LVS-9570.

  • Page 22: Shipping Containers

    LVS-9570 Operating Instructions Shipping Containers A shipping container must be flat and the LVS-9570 must be placed onto the shipping container in such a way that the sensor (glass window) and roller is located on the same surface. You may use the picket fence orientation to pull the LVS-9570 through the entire height of the barcode from top to bottom, or use the ladder orientation to pull the LVS-9570 across the barcode label.

  • Page 23: Cleaning Instructions

    LVS-9570 Operating Instructions Cleaning Instructions Clean the Sensor Window The sensor window may need to be cleaned daily, depending on use. Debris on the sensor window may cause the LVS-9570 to not grade accurately. Locate the following supplies:  One of the following: Commercially available household glass cleaner, such as Windex®, Glassex®, VISS®, and Mr.

  • Page 24: Clean The Rubber Roller

    When a scratch occurs, you may need to return the system to Microscan (or your Microscan distributor) for sensor replacement. Contact your Microscan representative for more information.

  • Page 25: Engineering Specifications

    LVS-9570 Operating Instructions Engineering Specifications Physical Properties Height: 2.13”  54.10 mm Verifier height  4” 101.6 mm Total height including handle Length 3.94” 100.08 mm Width 6.56” 166.62 mm Weight 2.3 pounds 1.04 kg Line Scan Camera  400 DPI ...

  • Page 26: Supported Symbologies And Standards

    LVS-9570 Operating Instructions Supported Symbologies and Standards Below are just a few of the Symbologies and Standards supported by the LVS-9570. Contact Microscan for a full list of supported Symbologies and Standards. Supported Symbologies   Aztec Code Hanxin Code ...
  • Page 27 LVS-9570 Operating Instructions  GS1 (NTIN)  HDMA Guidelines  HIBC  IFAH  ISO/IEC 15415/15416  Italian Pharmacode  Japanese Codabar  Laetus Pharmacode  MIL-STD-130  Miniature Pharmacode  Multi-rotation Data Matrix  Multi-rotation QR Code  Postal (USPS IMB/Code 128, PostNet, Japan Post) ...
