Setting Up the Imager for EZ Trax

If you are using EZ Trax software, it is important to set up the Quadrus MINI correctly
before beginning.

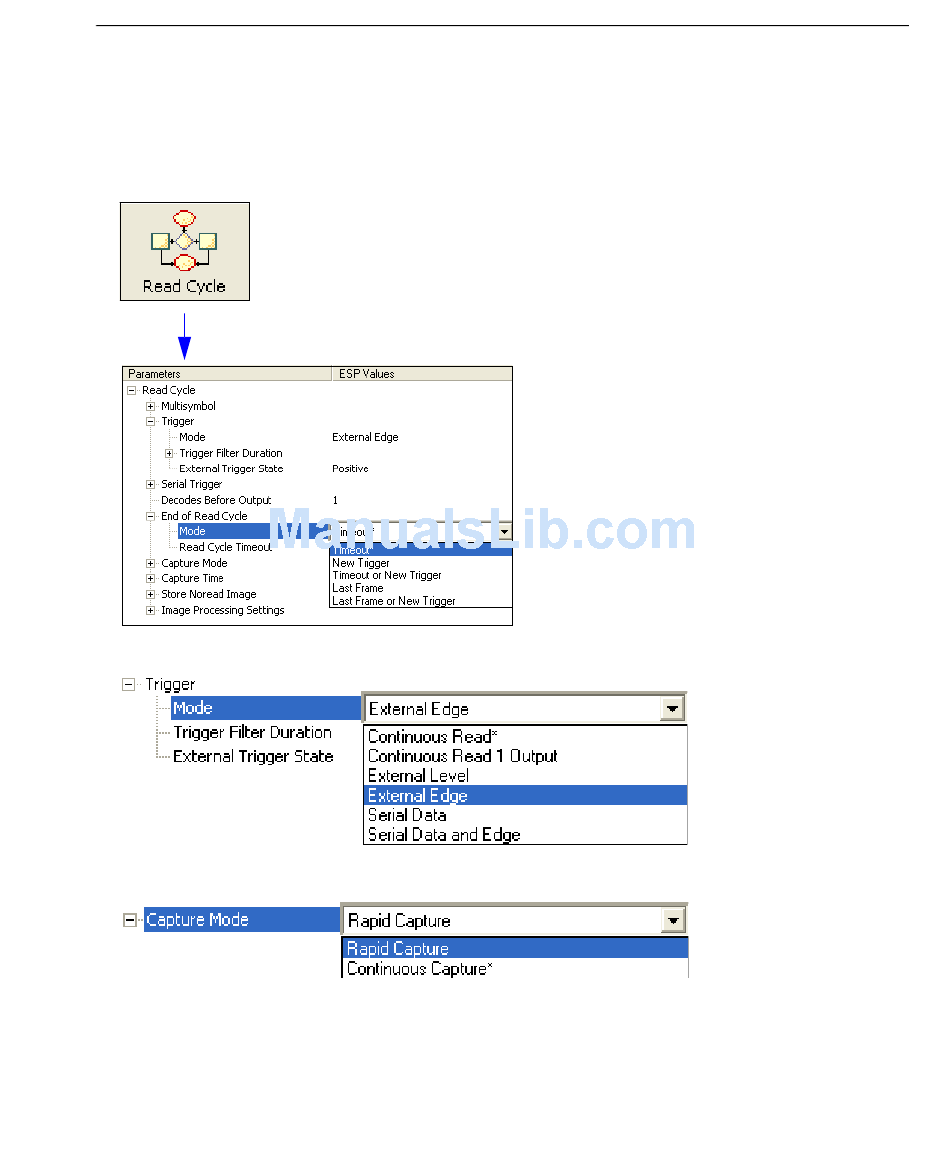

Click the Read Cycle button to display the Read Cycle tree control.
Set Trigger Mode, <K200>, to External Edge.
Set Capture Mode, <K241>, to Rapid Capture.
Once these Read Cycle parameters are set, you will be ready to connect to EZ Trax. For a
description of how to configure EZ Trax using serial commands or ESP, see
in Chapter 7,
Trax Output
For more detailed information about using EZ Trax, refer to the Help menu in EZ Trax
software, or the EZ Trax Quick Start Guide, available on the Microscan Tools CD.
Quadrus MINI Imager User's Manual
I/O Parameters.
Read Cycle
Configuring EZ
5-29
