Summary of Contents for Microscan LVS-9580

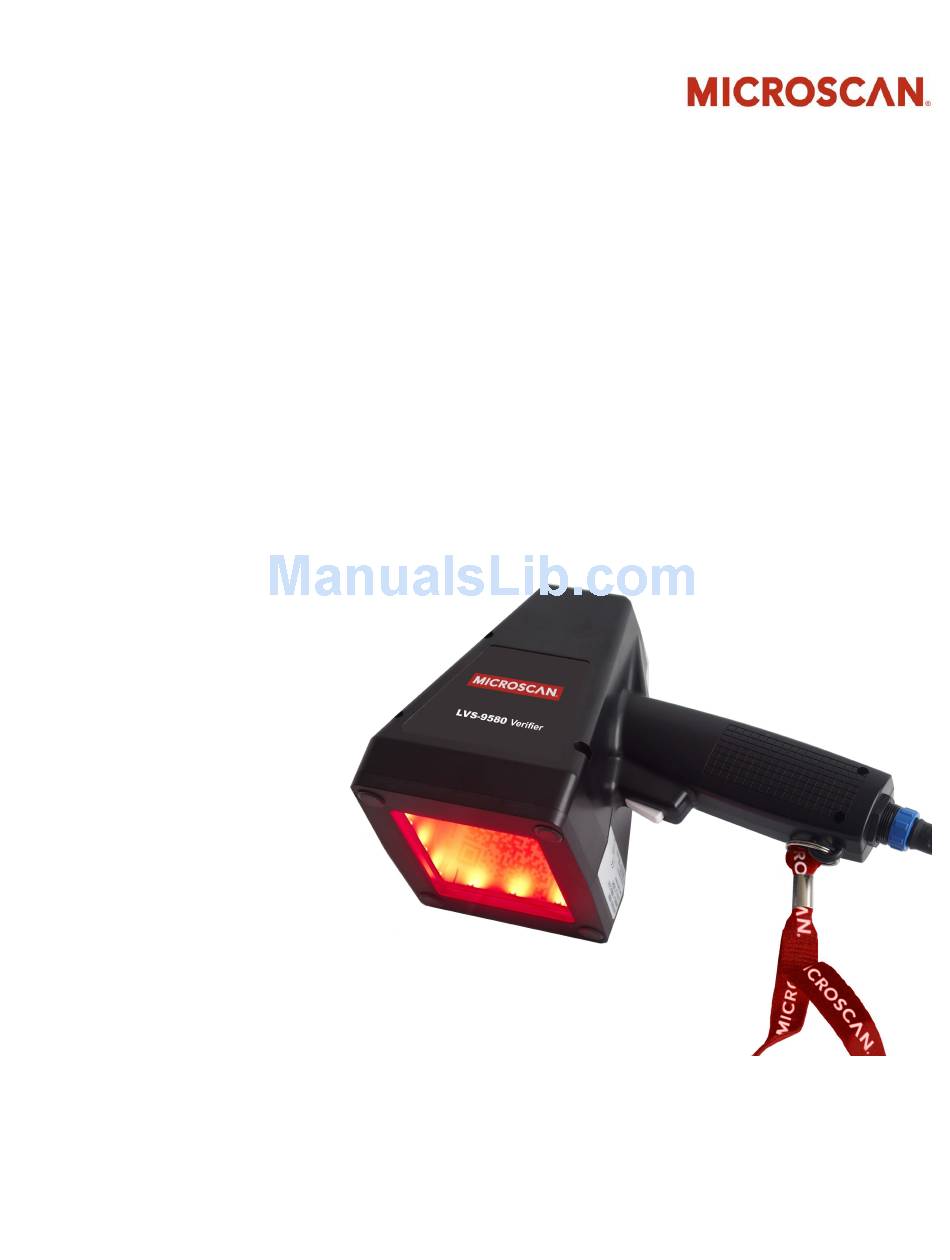

- Page 1 9580 Operating Instructions ® English P/N 84-9310011-02 Rev A M-9580-4.0.0-E-En-0...
-
Page 2: Technical Support
All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Microscan manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Microscan. -
Page 3: Table Of Contents
Quiet Zone ........................5 HARDWARE OVERVIEW ....................6 LVS-95XX SOFTWARE STEPS ..................7 Log On to the LVS-95XX Software ................7 Turn on the LVS-9580 Camera..................9 Calibrate the LVS-9580 ..................... 10 GRADING BARCODES ....................13 CLEANING INSTRUCTIONS ..................14 ENGINEERING SPECIFICATIONS ................ -
Page 4: Important Information
Important Information The LVS-9580 arrives to your site packaged in a specially designed shipping carton. DO NOT discard this shipping carton in case you must ship or store the system for any reason. Failure to use this carton when returning your product to Microscan will void warranty. -
Page 5: About The Lvs-9580
LVS-9580 Operating Instructions - English About the LVS-9580 The LVS-9580 is a portable, handheld barcode verifier designed for off-line verification of barcodes to ISO/IEC standards. The LVS-9580 is a 5.0 megapixel camera-based system that grades linear (1D) and two-dimensional (2D) codes up to 3 inches (76 mm) wide and up to 2 inches (51 mm) tall (including the quiet zone). -
Page 6: Hardware Overview

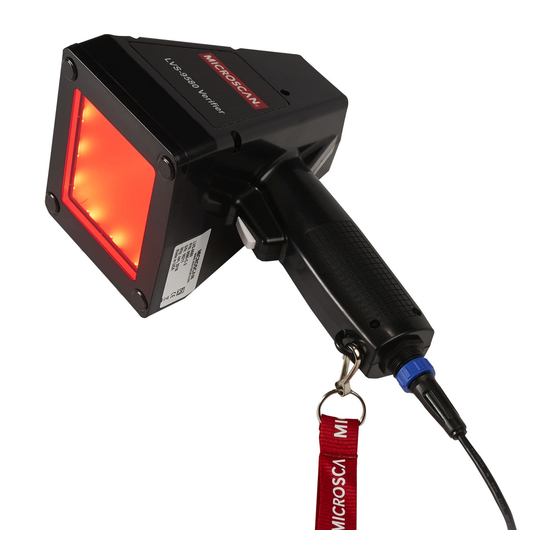

LVS-9580 Operating Instructions - English Hardware Overview The LVS-9580 is comprised of the following hardware components: Enclosure containing camera and LEDs Four rubber feet surrounding verifier window to hold substrate in place and prevent slippage Verifier window Trigger USB cable input... -
Page 7: Lvs-95Xx Software Steps
LVS-9580 Operating Instructions - English LVS-95XX Software Steps Refer to the sections below for steps on: Logging on to the LVS-95XX software Turning on the LVS-9580 camera Calibrating the LVS-9580 Note: Refer to the “LVS-95XX Series Software Installation Guide” for step-by- step instructions on installing the LVS-95XX software;... - Page 8 3. Enter admin (not case sensitive) in the Operator ID field and in the Password field. 4. Click “OK.” You are logged in to the LVS-95XX software. 5. Turn on the LVS-9580 camera by following the steps in the next section entitled “Turn on the LVS-9580 Camera.”...
-
Page 9: Turn On The Lvs-9580 Camera
LVS-95XX software to locate a barcode within the field of view and automatically draw a sector around the barcode. 3. Next, you need to calibrate the LVS-9580 (if using the LVS-9580 for the first time). See the next section for calibration steps. -
Page 10: Calibrate The Lvs-9580
Calibrate the LVS-9580 IMPORTANT: The LVS-9580 should be calibrated regularly. The entire calibration process takes less than 30 seconds to complete and ensures the LVS-9580 is certified according to industry standards. The Calibrated Conformance Standard Test Card should be replaced every two years. - Page 11 LVS-9580 Operating Instructions - English 3. Firmly grip the LVS-9580 handle. There is no need to press the trigger at this time (pressing the trigger causes the LVS-9580 to capture a live image; however, the image is automatically live while the system is in Calibration mode).
- Page 12 Re-scan the Master Grade barcode and follow the above steps to calibrate. It may take two or three attempts before calibration is complete. If calibration continues to fail, contact Microscan or your Microscan representative for further instructions. IMPORTANT: The calibration score will hardly ever match exactly; this is normal and acceptable as long as the scores are within +/- 3 percent.
-
Page 13: Grading Barcodes
“Setup” tab and make sure “Auto-sector” is selected in the “Grading mode” section (see below). 5. Slowly move the LVS-9580 as needed to place the green plus symbol over the center of the barcode image (make sure the rubber feet rest on the substrate). Then, release the trigger. -
Page 14: Cleaning Instructions
LVS-9580 Operating Instructions - English Cleaning Instructions The LVS-9580 window may need to be cleaned daily, depending on use. Debris on the window may cause the LVS-9580 to not grade accurately. Locate the following supplies: Commercially available household glass cleaner, such as Windex®, Glassex®, VISS®, or Mr. -
Page 15: Engineering Specifications
LVS-9580 Operating Instructions - English Engineering Specifications Physical Properties 5.5” (139.7 mm) Height 8.5” 215.9 mm 4.75” Width 120.6 mm Depth 5.5” 139.7 mm Unpackaged Weight = 15.5 oz (.44 Weight Shipping weight (includes all items packaged in shipping box, such as cables, manuals, etc.) = Approx 4... -
Page 16: Supported Symbologies And Standards
LVS-9580 Operating Instructions - English Supported Symbologies and Standards Below are just a few of the Symbologies and Standards supported by the LVS-9580. Contact Microscan for a full list of supported Symbologies and Standards. Supported Symbologies 1D (Linear) Codes: 2D (Two-Dimensional) Codes: ... -
Page 17: Supported Standards
LVS-9580 Operating Instructions - English Supported Standards ISO Conformance Standards: ISO/IEC 15415 ISO/IEC 15416 ISO/IEC 15426-1 ISO/IEC 15426-2 GS1 US Certification: Data Matrix for Healthcare Data Matrix (ECC 200) EAN/UPC EAN/UPC and extended codes ...
