Select Protocol and Connect (cont.)
Step 6 — Select Protocol and Connect (cont.)

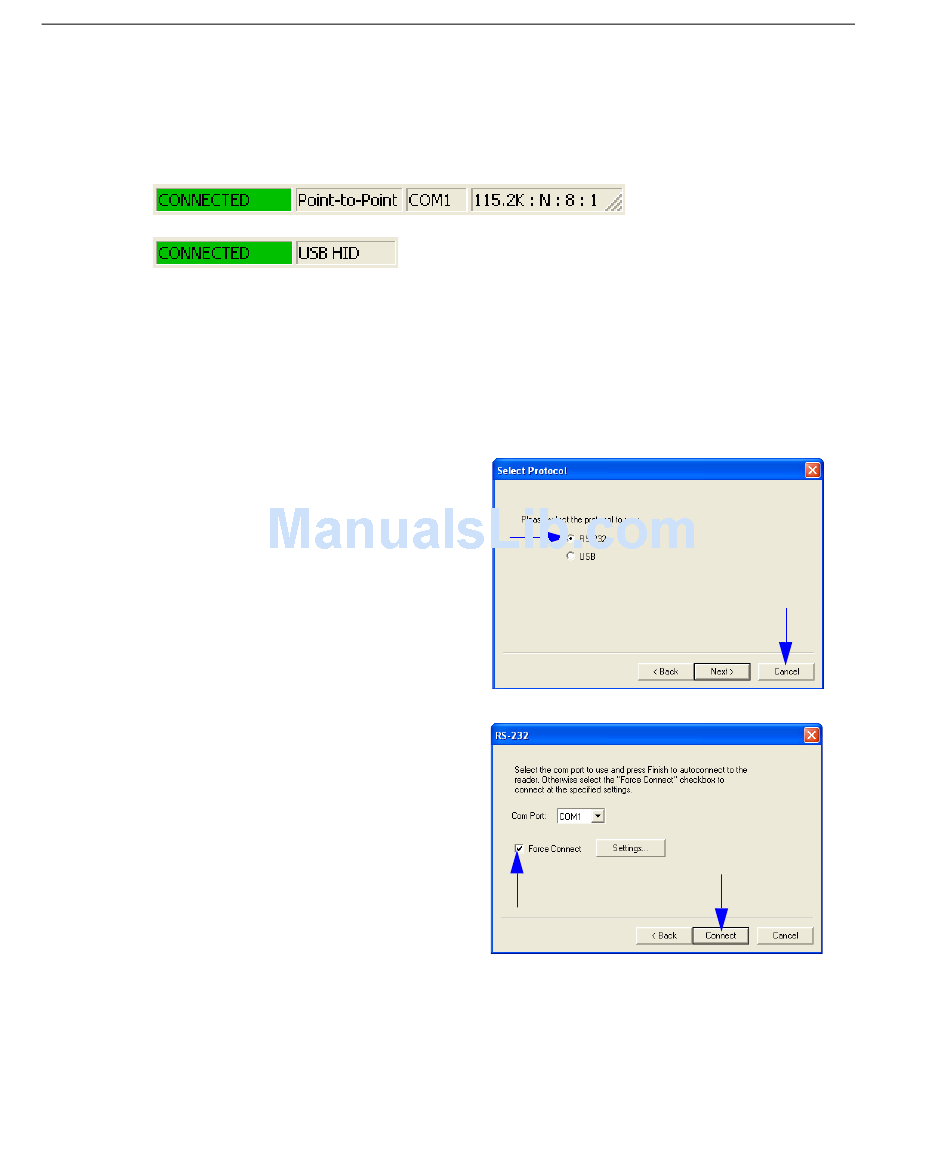

When you are connected, you will see the green connection indicator in the status bar at
the bottom right of your screen.
RS-232:
USB:
• If your RS-232 connection attempt fails, click the
communications port, and try again.
Note: If your RS-232 host settings cannot
be changed to match the imager's settings:
• Click Connect on ESP's menu toolbar,
and then select Connection Wizard.
• When the Select Protocol dialog
appears, select RS-232 and click Next.
• When the RS-232 dialog appears,
check the Force Connect box and
click the Connect button.
1-8
button, select a different
Autoconnect
