(E-UB) UPRIGHT BIKE INSTALLATION INSTRUCTIONS

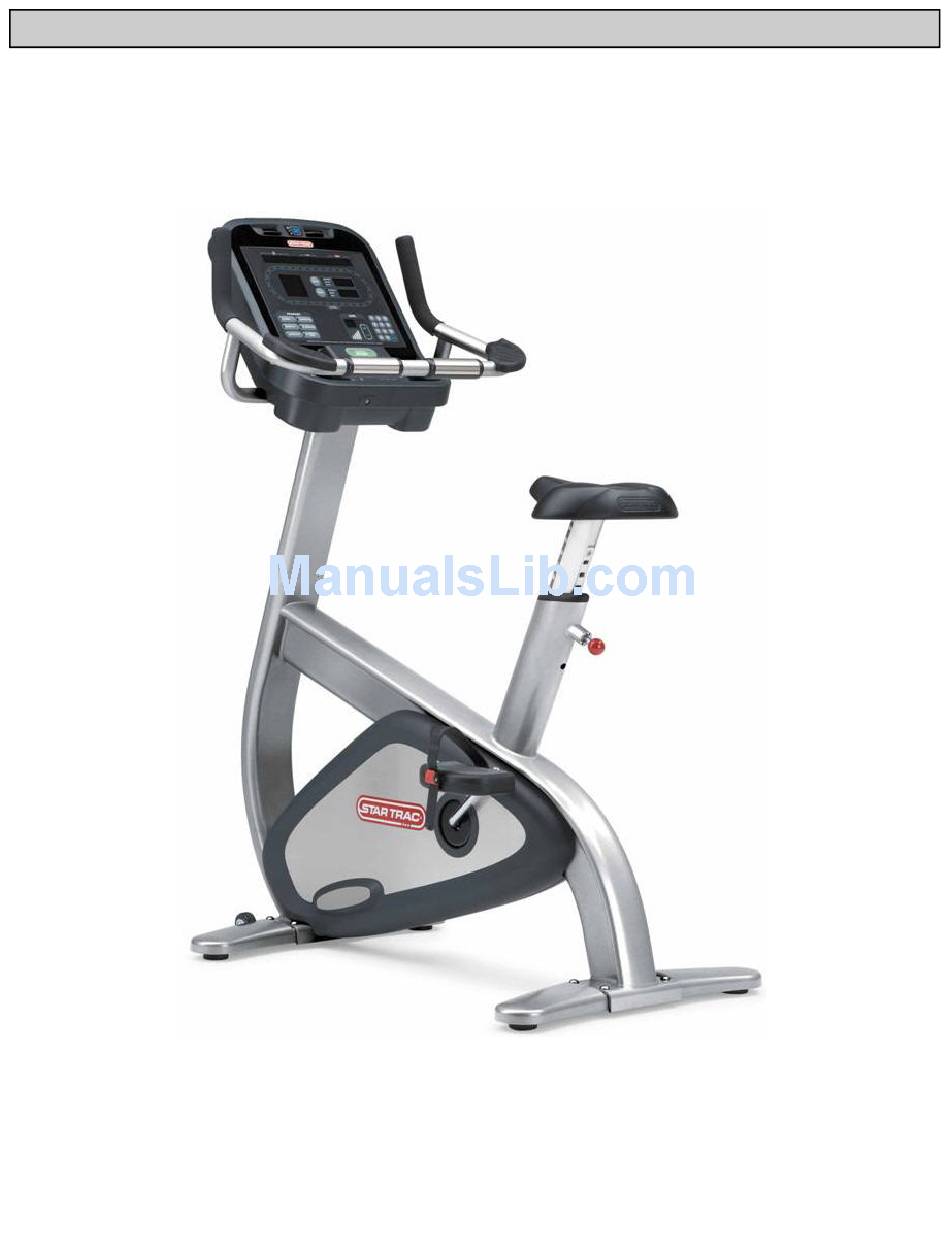

E-UB Upright Bike
4
620-7922 Rev B

Advertisement

loading
Need help?

Need help?

Do you have a question about the E-UB and is the answer not in the manual?

Questions and answers

Related Manuals for Star Trac E-UB

Summary of Contents for Star Trac E-UB

  • Page 1 (E-UB) UPRIGHT BIKE INSTALLATION INSTRUCTIONS E-UB Upright Bike 620-7922 Rev B...

  • Page 2: Tools Required

    • Copyright 2008. Star Trac by Unisen, Inc. Star Trac Fitness, Star Trac®, and the Star Trac Logo are registered trademarks of Unisen Inc. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Star Trac.
  • Page 3 (E-UB) UPRIGHT BIKE UNPACKING INSTRUCTIONS Step 1. Step 2. Place the box with heavy end facing down in the Open the box and remove top cover. Then re- area where the unit is going to be assembled. move items from top packaging foam.
  • Page 4 Step 5. Remove remaining packaging ma- terials and lay all components on the floor. Step 6. Verify the following components are included: 1. Bike frame 2. Display console assembly 3. Front and rear feet. 4. Left and right pedals 5. Hardware kit 6.
  • Page 5 (E-UB) UPRIGHT BIKE INSTALLATION INSTRUCTIONS Step 1. Step 2. Install front foot with (4) M10 x 30mm long Install back foot with (4) M10 x 30mm long button head screws. Tighten all 4 screws to 200 button head screws. Tighten all 4 screws to 200 lb-in of torque.
  • Page 6 Step 5. Step 6. Attach right pedal to right pedal crank, then Attach left pedal to left pedal crank, then tighten tighten securely. securely. Note: For right pedal turn clockwise to tighten. Note: For left pedal, turn counterclockwise to tighten. Step 7.
  • Page 7 Step 9. Step 10. Take upper display and neck assembly to the Keep hold of the cables and rotate the display front of the unit. Feed the cables from the lower up. Now slide the neck over the two mounts in neck through the upper neck.
  • Page 8 Step 13. Step 14. Position the display assembly near the top rail Plug-in the 12-pin main I/O cable into the front while you make the necessary connections. display circuit board at J4 connector. Step 15. Step 16. Next, plug-in the heart rate cable into the HR Plug the HR ground cable into the quick discon- board connector.
  • Page 9 Note: Refer to the User’s Manual for other settings rock back and forth. and instructions. YOU HAVE NOW COMPLETED THE (E-UB) UPRIGHT BIKE INSTALLATION 620-7922 Rev B...
  • Page 10 9.Using a chest strap or wireless heart rate simulator, verify heart rate is recording properly. ATTENTION Star Trac recommends that the bikes be spaced a minimum of 20.0 inches (0.5 m) apart to allow • safe and easy ingress and egress. Even more importantly, there must be at least 48 inches (1.25 m) of free space behind the bike.
  • Page 11 (E-UBe/RBe) EMBEDDED DISPLAY CONSOLE INSTALLATION INSTRUCTIONS E-RBe Recumbent Bike E-UBe Upright Bike 620-7922 Rev B...
  • Page 12 (E-UBe/RBe) EMBEDDED DISPLAY CONSOLE INSTALLATION INSTRUCTIONS Step 2. Step 1. Verify the tool kit has the following parts: Remove all contents from the packaging and verify that you have the following parts: Item Description 1. (1) Embedded display console. 2. (1) Operation manual. Assembly instructions 3.
  • Page 13 Step 5. Step 6. Disconnect the ground cable from the ground Mount the back cover to the display mounting quick disconnect tab on the embedded display. bracket using four (4) M4 x 0.7 x 19mm long Save the cable for later use. Phillips head screws and four (4) M4 flat wash- ers.
  • Page 14 Step 9. Step 10. Now screw in the coax adaptor to the coax ca- Take the embedded display assembly to the ble coming out of the base neck. base unit. Hold the front display plastics at the top with one hand while connecting the cables and harnesses with the other.
  • Page 15 Step 13. Step 14. Next plug in the coax cable into the coax Plug-in the 12-pin main I/O cable from the neck into the 12 pin connector on the FitCPU board of adapter on the tuner card of the embedded dis- the embedded display assembly.
  • Page 16 Step 17. Step 18. Plug in the ground cable coming from upper left Assemble the front and back display parts to- side of the display mounting bracket into the gether by sliding the bottom of the front display quick disconnect tab on the embedded display under the 2 tabs at the base first, then pressing assembly.
  • Page 17 11. TV is setup properly per the owner’s manual, signal is clear and audio is coming from both earphones. ATTENTION Star Trac recommends that the bikes be spaced a minimum of 20.0 inches (0.5 m) apart to allow • safe and easy ingress and egress. Even more importantly, there must be at least 48 inches (1.25 m) of free space behind the bike.
  • Page 18 THIS PAGE INTENTIONALLY LEFT BLANK 620-7922 Rev B...
  • Page 19 (E-UB/RB) iPod® CENTER CONSOLE INSTALLATION INSTRUCTIONS E-RB Recumbent Bike E-UB Upright Bike 620-7922 Rev B...
  • Page 20 (E-UB/RB) iPod® CENTER CONSOLE INSTALLATION INSTRUCTIONS Step 1. Step 2. Remove all contents from the packaging and Verify the cable kit has the following two parts: verify that you have the following parts: 1. (1) Center console power cable. 1. (1) iPod® center console.
  • Page 21 Step 5. Step 6. Disconnect the ground wire between the heart Disconnect the 12-pin serial connector from the rate board and the display mount. display Step 7. Step 8. Now disconnect the heart rate connector from Be careful with the display and place it face the display down on top of a non-scratching surface to protect it from being damaged.
  • Page 22 Step 9. Step 10. Using a #2 Phillips head screwdriver, remove Next remove the bottom cover, then remove the the (4) screws that hold bottom side of the dis- headphone blank cover. You will no longer play console on, then remove the (1) screw that need those covers and they can be stored away holds the headphone jack cap.
  • Page 23 Step 13. Step 14. Now install the new head phone jack mount. Identify the cables coming out of the new center Use the screw saved from the earlier step to se- console: cure the mount to the display. 1. Center console keypad ribbon cable. 2.
  • Page 24 Step 17. Step 18. Take the headphone jack cable from the center Take the center console power cable from the console and connect it to the newly installed kit, attach the male 12 pin connector to the fe- headphone jack in the front of the display. male 12 pin connector on the display board.
  • Page 25 Step 21. Step 22. Slide off and remove the CSAFE power connec- Install the CSAFE power connector on the new tor from the old bottom plastic cover. bottom plastic cover. Step 23. Step 24. Install the new bottom plastic cover onto display, Connect the CSAFE power cable from the bot- use the screws saved from the earlier step to tom cover to J10 connector on the display...
  • Page 26 Step 25. Step 26. Take the front display plastics with the new cen- Identify the four cables coming out of the neck ter console to the base unit. Hold the front dis- and mounting bracket: play plastics at the top with one hand while con- 1.
  • Page 27 Step 29. Step 30. Plug back the Heart rate ground cable into the Plug the center console ground cable into the quick disconnect tab on the display mount. quick disconnect tab on the display mount. Step 31. Step 33. Assemble the front and back display parts to- Turn power on.
  • Page 28 7. Headphone jack produces clear audio on both sides of earphone ATTENTION Star Trac recommends that the bikes be spaced a minimum of 20.0 inches (0.5 m) apart to allow • safe and easy ingress and egress. Even more importantly, there must be at least 48 inches (1.25 m) of free space behind the bike.
  • Page 29 THIS PAGE INTENTIONALLY LEFT BLANK 620-7922 Rev B...
  • Page 30 (E-UB/RB) MYE® ENTERTAINMENT CENTER CONSOLE INSTALLATION INSTRUCTIONS E-RB Recumbent Bike E-UB Upright Bike 620-7922 Rev B...
  • Page 31 (E-UB/RB) MYE® ENTERTAINMENT CENTER CONSOLE INSTALLATION INSTRUCTIONS Step 1. Step 2. Remove all contents from the packaging and Using a #2 Phillips screwdriver, remove the (8) verify that you have the following parts: screws on the back of the display plastic. Set 1.
  • Page 32 Step 5. Step 6. Disconnect the 12-pin serial connector from the Now disconnect the heart rate connector from display. the display. Step 7. Step 8. Be careful with the display and place it face Using a #2 Phillips head screwdriver, remove down on top of a non-scratching surface to the (4) screws that hold bottom side of the dis- protect it from being damaged.
  • Page 33 Step 9. Step 10. Next remove the bottom cover, then remove the Using a Phillips head screwdriver, remove the headphone blank cover. (4) screws that hold the original center console in place, then remove the center console. Note: You will no longer need those covers and they can be stored away for any possible future use.
  • Page 34 Step 13. Step 14. Identify the cables coming out of the new center Connect the center console keypad cable to J8 console: connector on the display board. 1. Center console keypad ribbon cable. 2. Center console power cable 3. Center console ground cable. 4.
  • Page 35 Step 17. Step 18. Take the new iPod® cradle from the kit and in- Now connect iPod® cable from the iPod® cra- stall it onto display console. dle to J10 connector on the center console board. Step 19. Step 20. Slide off and remove the CSAFE power connec- Install the CSAFE power connector on the new tor from the old bottom plastic cover.
  • Page 36 Step 22. Step 21. Take the front display plastics with the new cen- Install the new bottom plastic cover onto display, ter console to the base unit. Hold the front dis- use the screws saved from the earlier step to play plastics at the top with one hand while con- secure the display bottom.
  • Page 37 Step 25. Step 26. Next, plug-in the heart rate cable from the neck Plug back the Heart rate ground cable into the into the heart rate board connector on the dis- quick disconnect tab on the display mount. play. Step 28. Step 27.
  • Page 38 Step 29. Step 30. Using a Phillips head screw driver, secure the Turn power on. Perform a visual inspection, and front display to the back with (8) M4 Phillips test the features and functions of the unit prior to head screws. use.
  • Page 39 Headphone jack produces clear audio on both sides of earphone ATTENTION Star Trac recommends that the bikes be spaced a minimum of 20.0 inches (0.5 m) apart to allow • safe and easy ingress and egress. Even more importantly, there must be at least 48 inches (1.25 m) of free space behind the bike.
  • Page 40 THIS PAGE INTENTIONALLY LEFT BLANK 620-7922 Rev B...
  • Page 41 (E-UB/RB) PERSONAL VIEWING SCREEN INSTALLATION INSTRUCTIONS E-RB Recumbent Bike E-UB Upright Bike 620-7922 Rev B...
  • Page 42 PERSONAL VIEWING SCREEN (PVS) INSTALLATION INSTRUCTIONS Step 1. Step 2. Remove all contents from the packaging and verify Remove all content from the hardware kit packaging that you have the following parts: and verify that you have the following parts: Item Description Item Description PVS assembly with mounting bracket.
  • Page 43 Step 5. Step 6. Disconnect the ground wire between the heart Disconnect the 12-pin serial connector from the rate board and the display mount. display. Step 7. Step 8. Now disconnect the heart rate connector from Be careful with the display and place it face the display.
  • Page 44 Screws Screws Step 9. Step 10. Remove the cap cover with the Star Trac logo Remove the (2) M8 button head screws retain- from the back cover plastics by removing the (2) ing the cross-brace using provided 5mm Hex screws using a #2 Phillips screwdriver. Retain key.
  • Page 45 Step 13. Step 14. Using a #2 Phillips head screwdriver, remove Next remove the bottom cover, then remove the the (4) screws that hold the bottom cover of the headphone blank cover. display console, then remove the (1) screw that Note: You will no longer need the headphone jack holds the headphone jack cap.
  • Page 46 Step 17. Step 18. Install the iPod® cable into the iPod® cradle on Tie the iPod® cable to the plastic using the 3.5” the front side of the display console by removing tie wrap. the plug from the cradle then inserting the cable through opening.
  • Page 47 Step 21. Step 22. Connect the center console keypad cable to J8 Connect the seven-pin interface cable from the connector on the display board. console to J14 connector on the display board. Step 23. Step 24. Now connect the iPod® cable from the bottom Next replace the bottom cover.
  • Page 48 Step 25. Step 26. Take the front display plastics with the new cen- Identify the four cables coming out of the base ter console to the base unit. Hold the front dis- neck and mounting bracket: play plastics at the top with one hand while con- 1.
  • Page 49 Tie Wrap Step 29. Step 30. Now take the 5” silicon wrap from the kit and Using a 5” tie wrap from the PVS kit, bind the peel off its protective tape then wrap the two cables from the PVS neck to one side of the connectors so that all of the metal surface is display mount.
  • Page 50 Step 33. Step 34. Plug the DC power cable from the base neck Plug the data interface cable coming from the into either one of the DC connectors on new PVS neck into the center console board. center console board. Then plug the DC power cable from the PVS neck into the other DC con- nectors on same center console board.
  • Page 51 Step 37. Step 38. Plug back the Heart rate ground cable into the Plug the center console ground cable into the quick disconnect tab on the display mount. quick disconnect tab on the display mount. Step 39. Step 40. Plug the headphone jack cable coming from the Assemble the front and back display parts to- PVS neck into the, newly installed, headphone gether by sliding the bottom of the front display...
  • Page 52 Step 41. Step 42. Using a Phillips head screw driver, secure the Connect the in-house entertainment cable to front display to the back with (8) M4 Phillips the RF input at the base of the unit. head screws. Take the power supply from the kit and plug the small barrel connector to the DC input.
  • Page 53 10. TV is setup properly per the owner’s manual, signal is clear and audio is coming from both earphones. ATTENTION Star Trac recommends that the bikes be spaced a minimum of 20.0 inches (0.5 m) apart to allow • safe and easy ingress and egress. Even more importantly, there must be at least 48 inches (1.25 m) of free space behind the bike.
  • Page 54 STAR TRAC 14410 Myford Road Irvine, California 92606 Telephone: (800) 228-6635, (714) 669-1660 Fax: (714) 508-3303 http://www.startrac.com 620-7922 Rev B...
  • Page 55 E-UB Upright Bike E-RB Recumbent Bike ’ W N E R A N U A L...

  • Page 56: Maintenance Mode

    Display panel software version (set by factory) LCB Vers 9.99 Load Control Board software version (set by factory) Units English Metric English English = units of pounds, miles, feet, inches; Metric = units of kilograms, kilometers, centimeters. STAR TRAC E SERIES BIKES O ’ WNER UIDE...
  • Page 57 Keypad Test Access to integral keypad test function (for use by authorized Maintenance Technician). Heart Rate Access to integral heart rate system test function (for use by authorized Test Maintenance Technician). STAR TRAC E SERIES BIKES O ’ WNER UIDE...

  • Page 58: Troubleshooting

    ROUBLESHOOTING STAR TRAC E SERIES BIKES perform a self-test at the beginning of every workout. If a problem is detected, a message displays before or after the workout, depending on the nature of the problem. Star Trac recommends that you refer your questions about your STAR TRAC E SERIES BIKE operation and suspected malfunctions to Star Trac’s Service Hotline at (800) 503-1221, or USA...
