3.
Click the New button. This dialog box appears.

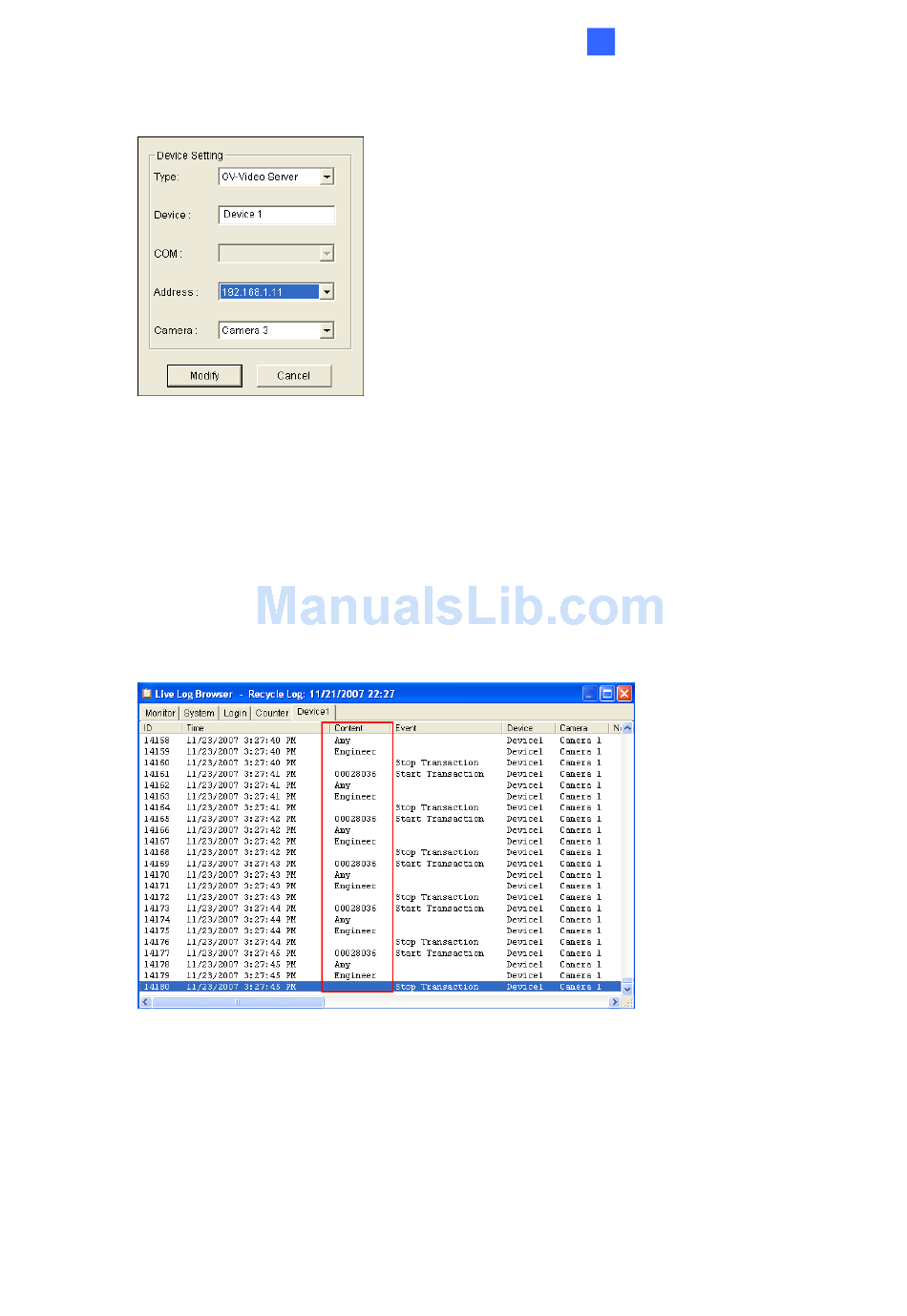

Figure 7-9
4.
Select GV-Video Server from the Type drop-down list, enter a descriptive name for
the Video Server, select the IP address of the video server from the Address drop-
down list, and then select the camera to be mapped with.
5.
Click Add to add the Wiegand card reader to the system.
6.
Note the cardholder data will not be overlaid on the mapped camera. To view
cardholder data, click the ViewLog button, select System Log to display the Live Log
Browser, and then click the Device tab.
For the related settings on the GV-Video Server, see Wiegand Function in 4.2.3
GPS/Wiegand .
Figure 7-10
DVR Configurations
7
81
