VBOX II User Guide

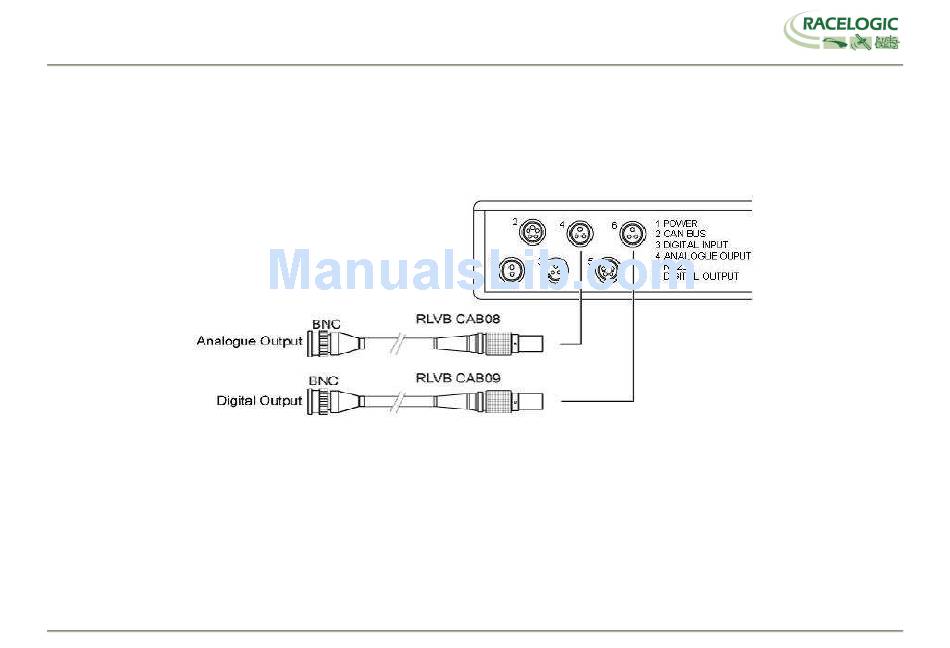

DIGITAL and ANALOGUE OUTPUTS
The digital output on connector 6 is a frequency/pulse output corresponding to velocity. The pulse per meter range is adjustable in software.
The analogue output on connector 4 outputs 0-5volt DC signal corresponding to velocity.
Page 9 of 23
