CAN / RS232 Ports

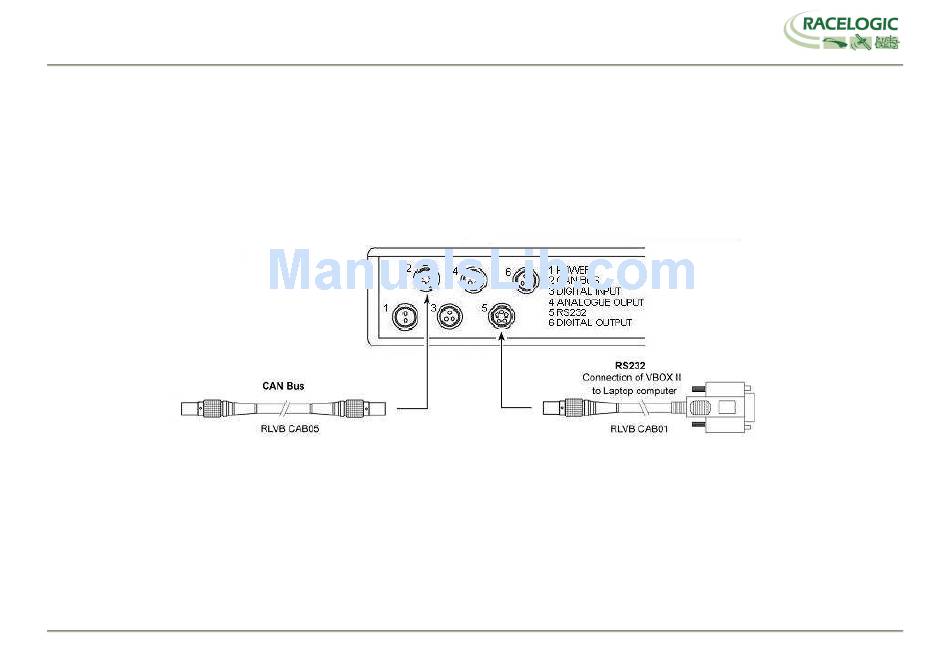

The VBOX II is equipped with a CAN Bus interface and a RS232 serial port. The RS232 port is used for all communication between the VBOX and laptop PC.
The RS232 port is in Socket 5 on the VBOX II. The RS232 port is able to transmit live data from the VBOX to the PC for viewing and performing real-time
tests.
The CAN Bus port is in Socket 2 of the VBOX II. The function of this port is configurable by the user for use by either Racelogic modules (Internal mode) or
the users own CAN Bus equipment (External mode). See the section 'Setup' in the VBOX software manual.
The CAN Bus port also contains a secondary RS232 port for direct connections to the GPS engine for Local DGPS correction connection.
