VBOX II User Guide
Digital Inputs
The DIGITAL IN/Socket3 contains the two digital inputs for the VBOX II. Digital input 1 is also referred to as the Brake trigger input. This input is connected to
an internal timer capture module that is able to record precisely an event time for use in brake distance calculation. This period of time is called the trigger
event time, and is logged as the value in milliseconds between the trigger event and the last GPS sample.

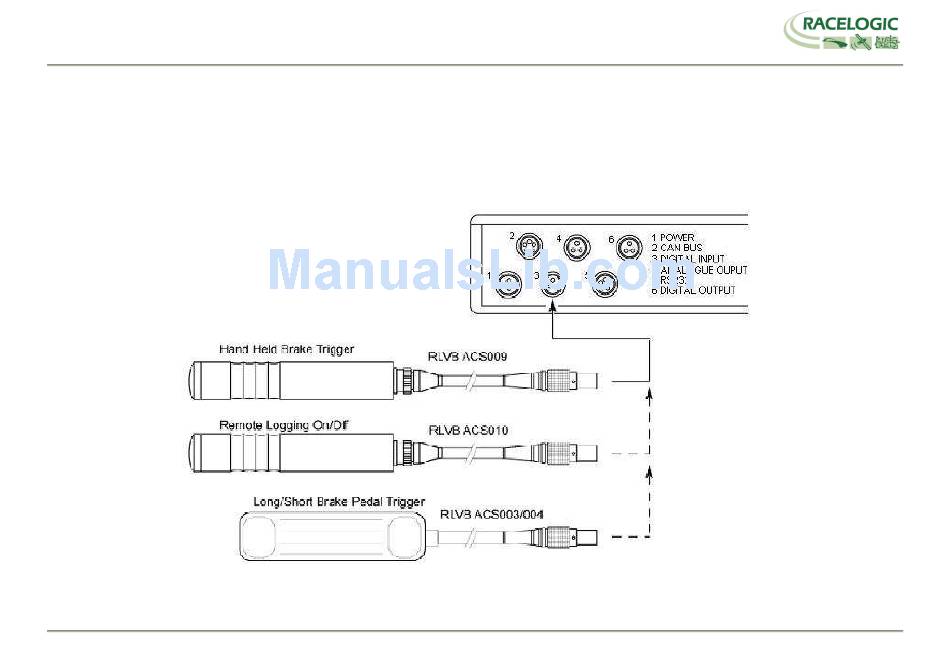

A hand-held brake trigger is also available to allow the user to record marker events in the VBOX II data file.
A remote logging on/off switch is also available for ease of use and when the front panel switch is not accessible.
Page 10 of 23
