VBOX II User Guide

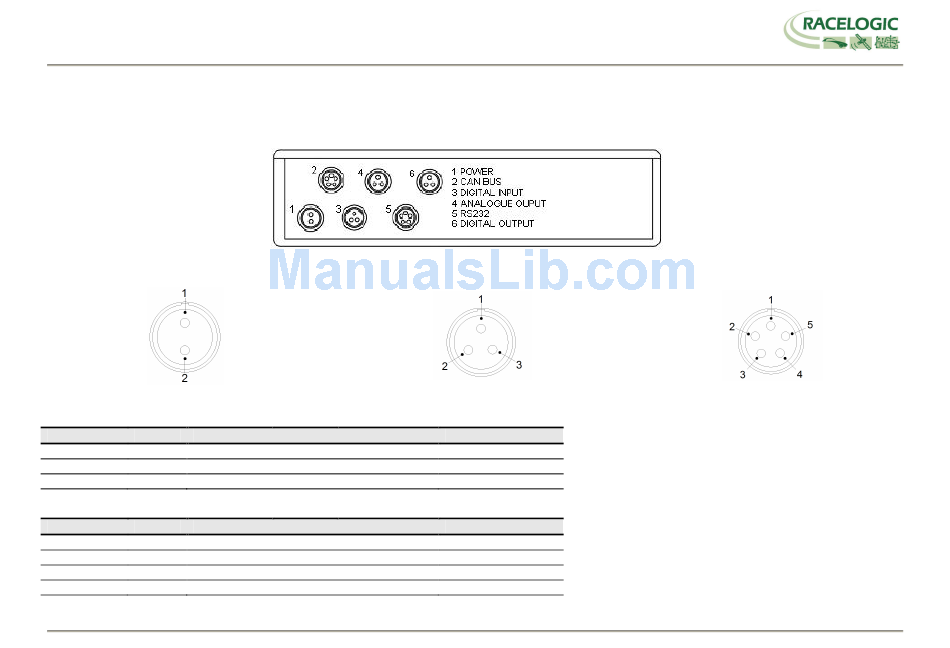

Connection Data
2 pin LEMO socket
Connector
1 POWER
PIN
In/Out
Description
1
I
Power +
2
I
Ground
Chassis
Ground
Connector
3 DIG IN
PIN
In/Out
Description
1
O
Ground
2
I
Digital Input 2. Start/Stop Logging
3
I
Digital Input 1. Brake Trigger
Chassis
Ground
3 pin LEMO socket
Type
Lemo 2 pin
Range
6V to 18V
0V
Type
Lemo 3 pin
Range
0V to 5V
0V to 5V
Page 19 of 23
5 pin LEMO socket
