HOW TO USE THIS MANUAL

TO LOCATE WHAT YOU ARE
LOOKING FOR :
1. The text of this manual is divided into sections.
2. The section titles are listed on the previous page
in a GROUP INDEX. Select the section needed
for reference.
3. Holding the manual as shown at the right will al-
low you to find the first page of the section easily.
4. The first page of each section lists a table of con-
tents to easily locate the item and page you need.

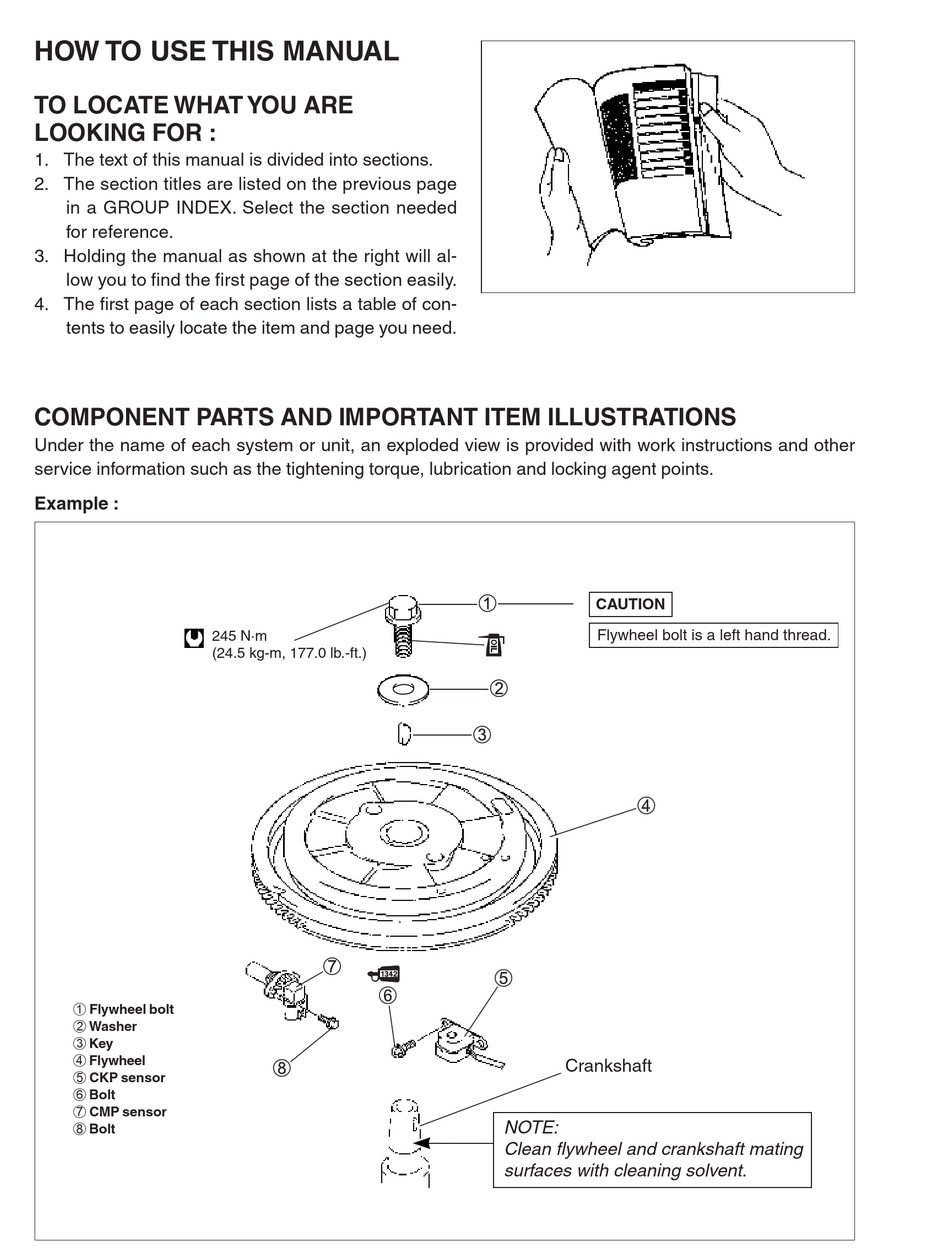

COMPONENT PARTS AND IMPORTANT ITEM ILLUSTRATIONS
Under the name of each system or unit, an exploded view is provided with work instructions and other
service information such as the tightening torque, lubrication and locking agent points.
Example :
245 N·m
(24.5 kg-m, 177.0 lb.-ft.)
1 Flywheel bolt
2 Washer
3 Key
4 Flywheel
5 CKP sensor
6 Bolt
7 CMP sensor
8 Bolt
CAUTION
Flywheel bolt is a left hand thread.
Crankshaft
NOTE:
Clean flywheel and crankshaft mating
surfaces with cleaning solvent.
