SPS IDNet Wiring
,
Continued

Notes

1. The current allowance per device on the loop is 0.5mA with the LED off, 2mA with
the LED on. A maximum of 20 LEDs will be turned on at any time by the IDNet
Card, e.g. in alarm.
2. The minimum voltage allowed at the furthest device to guarantee operation is
24.9Vdc. The IDNet boosts its output voltage from 30V to 35V during alarm.
4500
4.0 sq.mm
4000
3500
3000
2.5 sq.mm
2500
2000
1.5 sq.mm
1500
1.0 sq.mm
1000
0.75 sq.mm
500
0
0 25 50

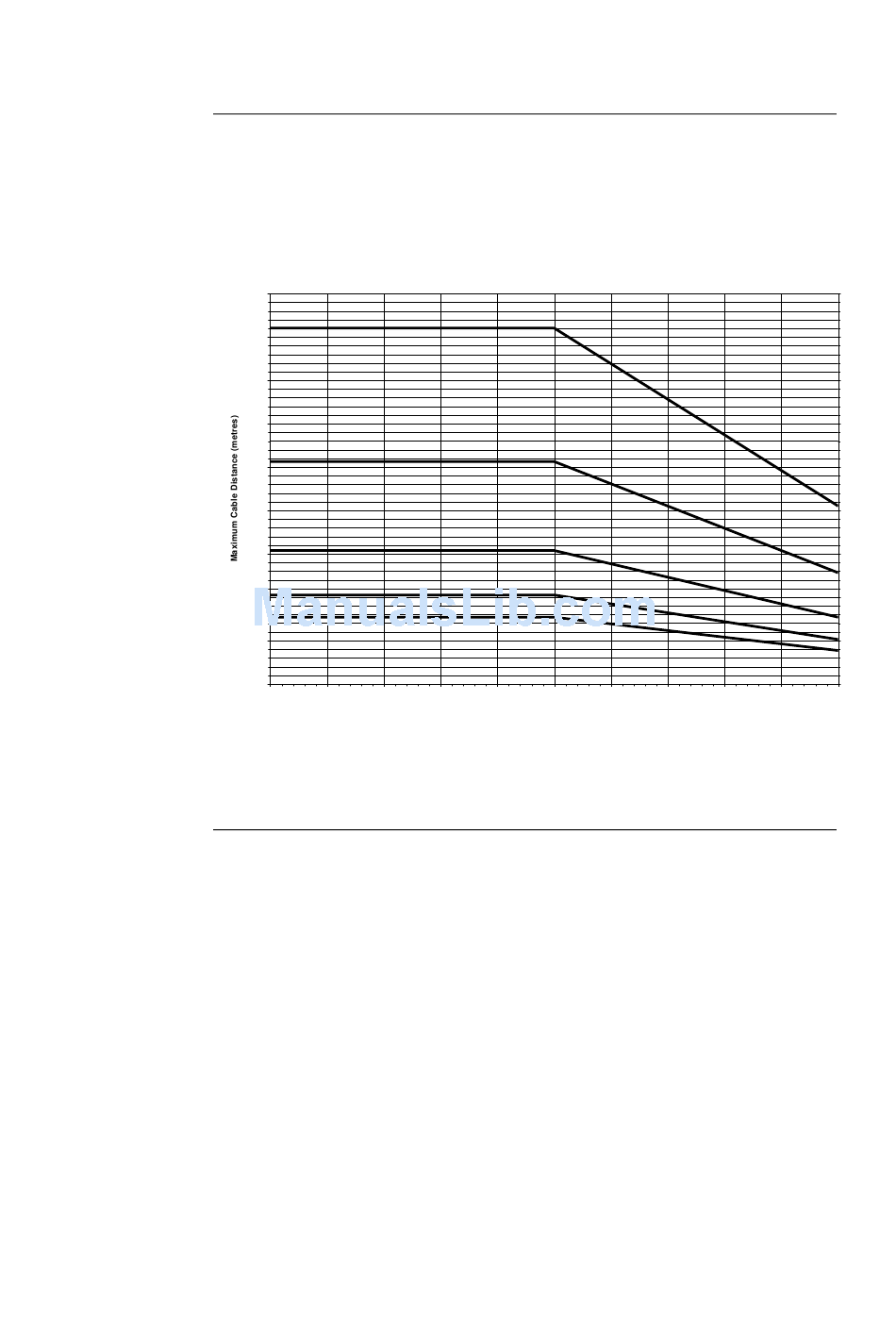

Figure 5-10. Cable Distance & Device Limits for Common Cable Sizes
75 100 125
Number of Devices on Loop
5-20
150 175 200
Continued on next page
4500
4000
3500
3000
2500
2000
1500
1000
500
0
225 250
