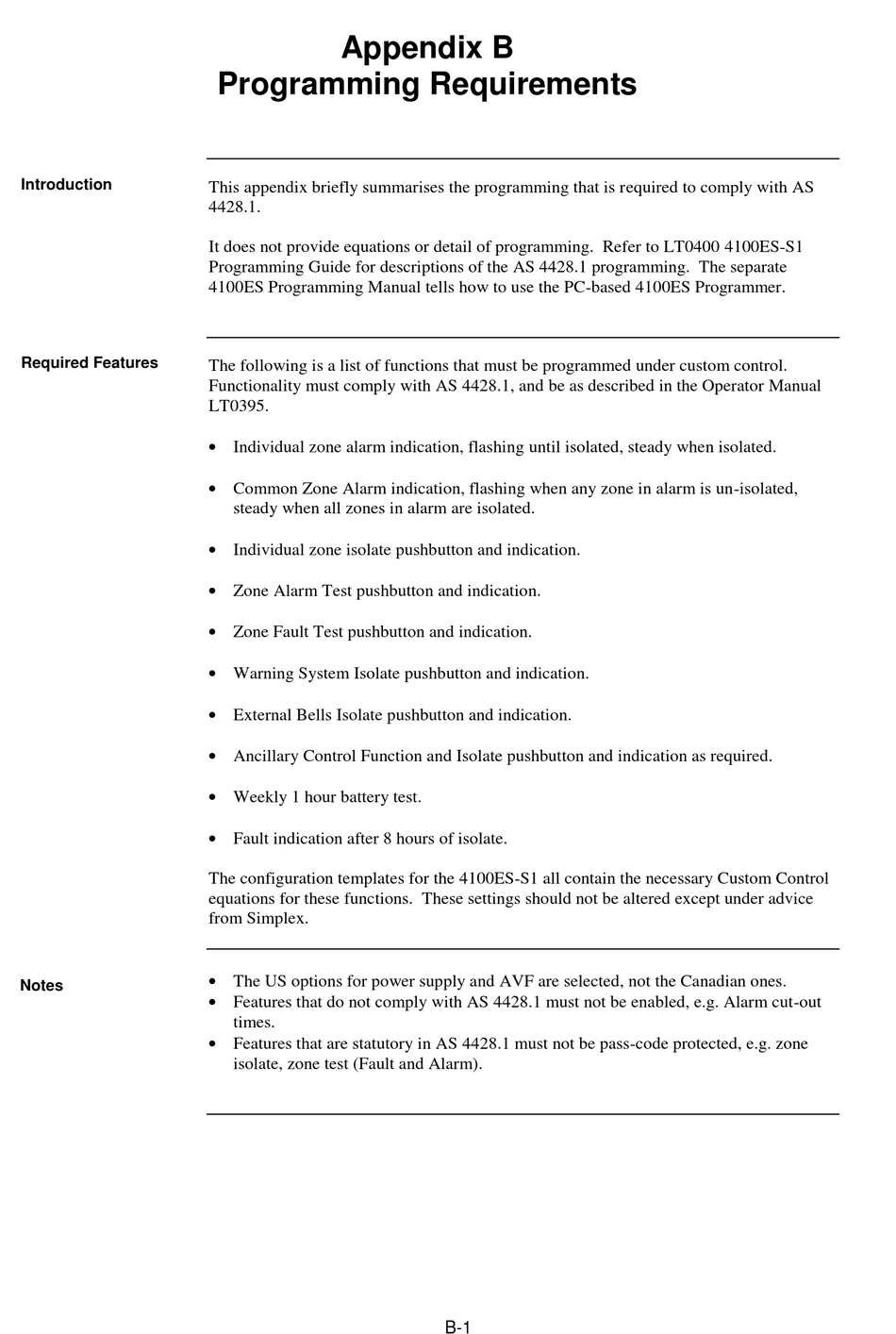

Appendix B
Programming Requirements
This appendix briefly summarises the programming that is required to comply with AS
4428.1.
It does not provide equations or detail of programming. Refer to LT0400 4100ES-S1
Programming Guide for descriptions of the AS 4428.1 programming. The separate
4100ES Programming Manual tells how to use the PC-based 4100ES Programmer.
The following is a list of functions that must be programmed under custom control.
Functionality must comply with AS 4428.1, and be as described in the Operator Manual
LT0395.
 Individual zone alarm indication, flashing until isolated, steady when isolated.
 Common Zone Alarm indication, flashing when any zone in alarm is un-isolated,
steady when all zones in alarm are isolated.
 Individual zone isolate pushbutton and indication.
 Zone Alarm Test pushbutton and indication.
 Zone Fault Test pushbutton and indication.
 Warning System Isolate pushbutton and indication.
 External Bells Isolate pushbutton and indication.
 Ancillary Control Function and Isolate pushbutton and indication as required.
 Weekly 1 hour battery test.
 Fault indication after 8 hours of isolate.
The configuration templates for the 4100ES-S1 all contain the necessary Custom Control
equations for these functions. These settings should not be altered except under advice
from Simplex.
 The US options for power supply and AVF are selected, not the Canadian ones.
 Features that do not comply with AS 4428.1 must not be enabled, e.g. Alarm cut-out
times.
 Features that are statutory in AS 4428.1 must not be pass-code protected, e.g. zone
isolate, zone test (Fault and Alarm).
B-1
