Appendix C: Checking System Wiring,

Meter Readings

Table C-1 lists the correct meter readings for different circuit types. Remember, these
readings must be made with the field wiring disconnected from the 4100ES terminals.

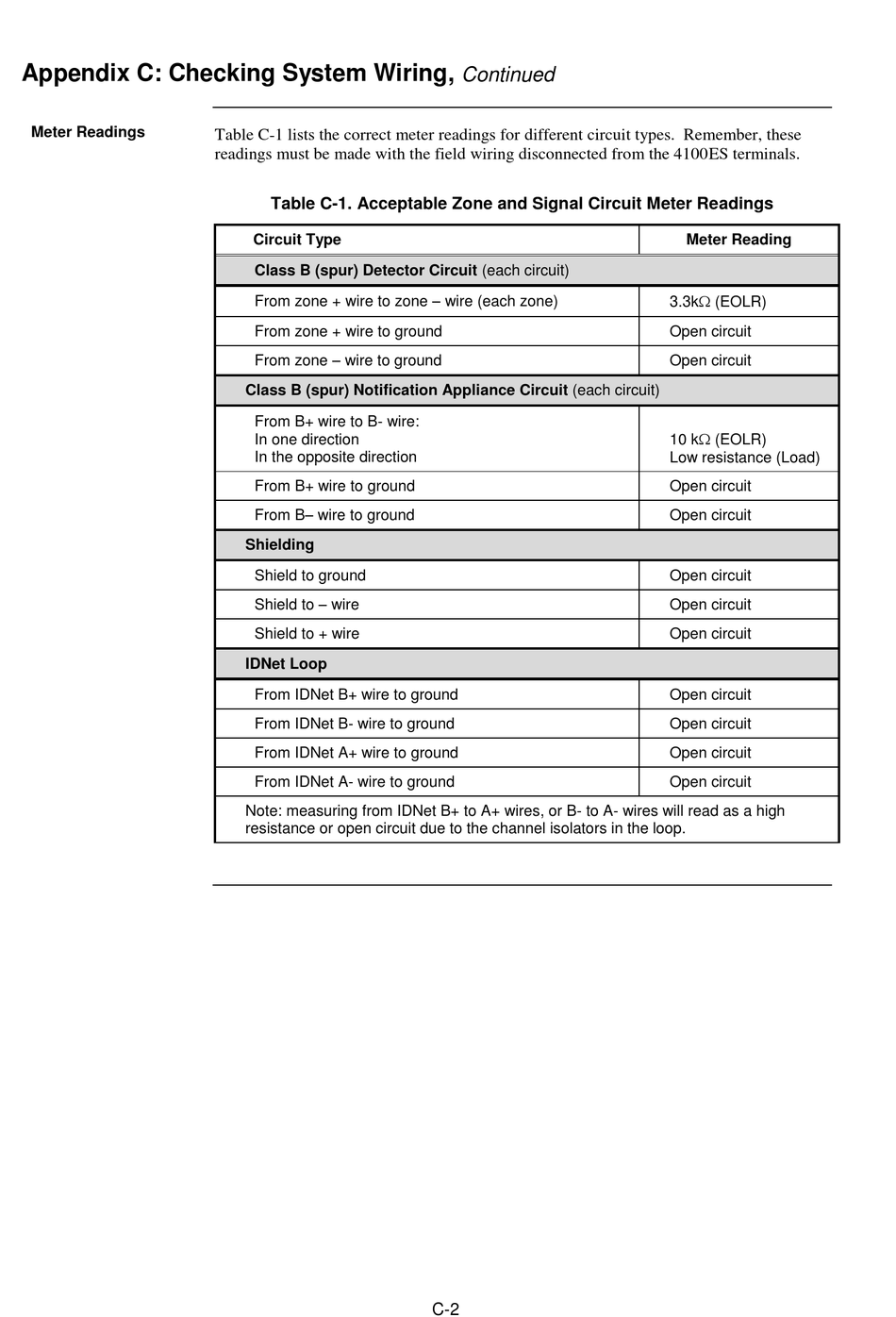

Table C-1. Acceptable Zone and Signal Circuit Meter Readings
Circuit Type
Class B (spur) Detector Circuit (each circuit)
From zone + wire to zone – wire (each zone)
From zone + wire to ground
From zone – wire to ground
Class B (spur) Notification Appliance Circuit (each circuit)
From B+ wire to B- wire:
In one direction
In the opposite direction
From B+ wire to ground
From B– wire to ground
Shielding
Shield to ground
Shield to – wire
Shield to + wire
IDNet Loop
From IDNet B+ wire to ground
From IDNet B- wire to ground
From IDNet A+ wire to ground
From IDNet A- wire to ground
Note: measuring from IDNet B+ to A+ wires, or B- to A- wires will read as a high
resistance or open circuit due to the channel isolators in the loop.
Continued
C-2
Meter Reading
3.3k (EOLR)
Open circuit
Open circuit
10 k (EOLR)
Low resistance (Load)
Open circuit
Open circuit
Open circuit
Open circuit
Open circuit
Open circuit
Open circuit
Open circuit
Open circuit
