Appendix D: Challenge IO4 PROM, Mezzanine, and Troubleshooting
128
Standard Configuration
IO4 board
Optional short
Mezz board

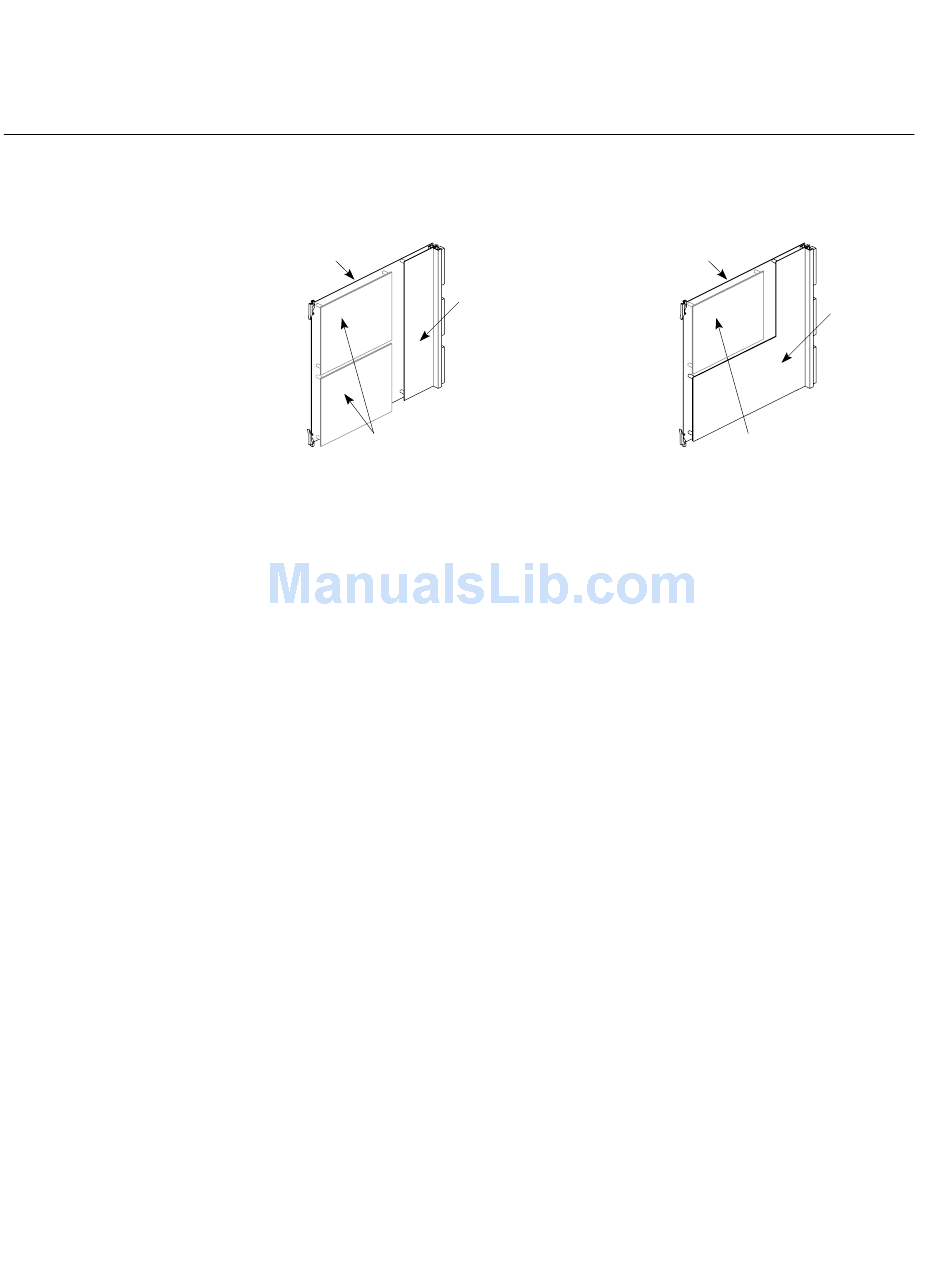

Figure D-1 IO4 With VCAM and GCAM

Mezzanine Options Available With Two IO4s

You can always have one or two short optional mezzanine boards installed
on the primary IO4. This is determined by whether you have the
visualization console option installed in your POWER Challenge system.
When you order a second optional IO4 you can choose the option of having
one of the following mezzanine configurations installed:
• Up to two long mezzanine option boards
• Up to two short mezzanine option boards
• One long and one short mezzanine option board
Figure D-2 shows the optional second IO4 and the potential configurations
for additional optional mezzanine boards that might be installed.
Extreme Graphics Option
IO4 board
VCAM
installed
Optional
GCAM
installed
Optional short
Mezz board
