Add Lu Window - HP StorageWorks User Manual

NOTE: Before mapping the external LU, ensure that no other applications (such as RAID Manager) that
use the command device are executing. Stop any applications that are executing before mapping the
external LU.

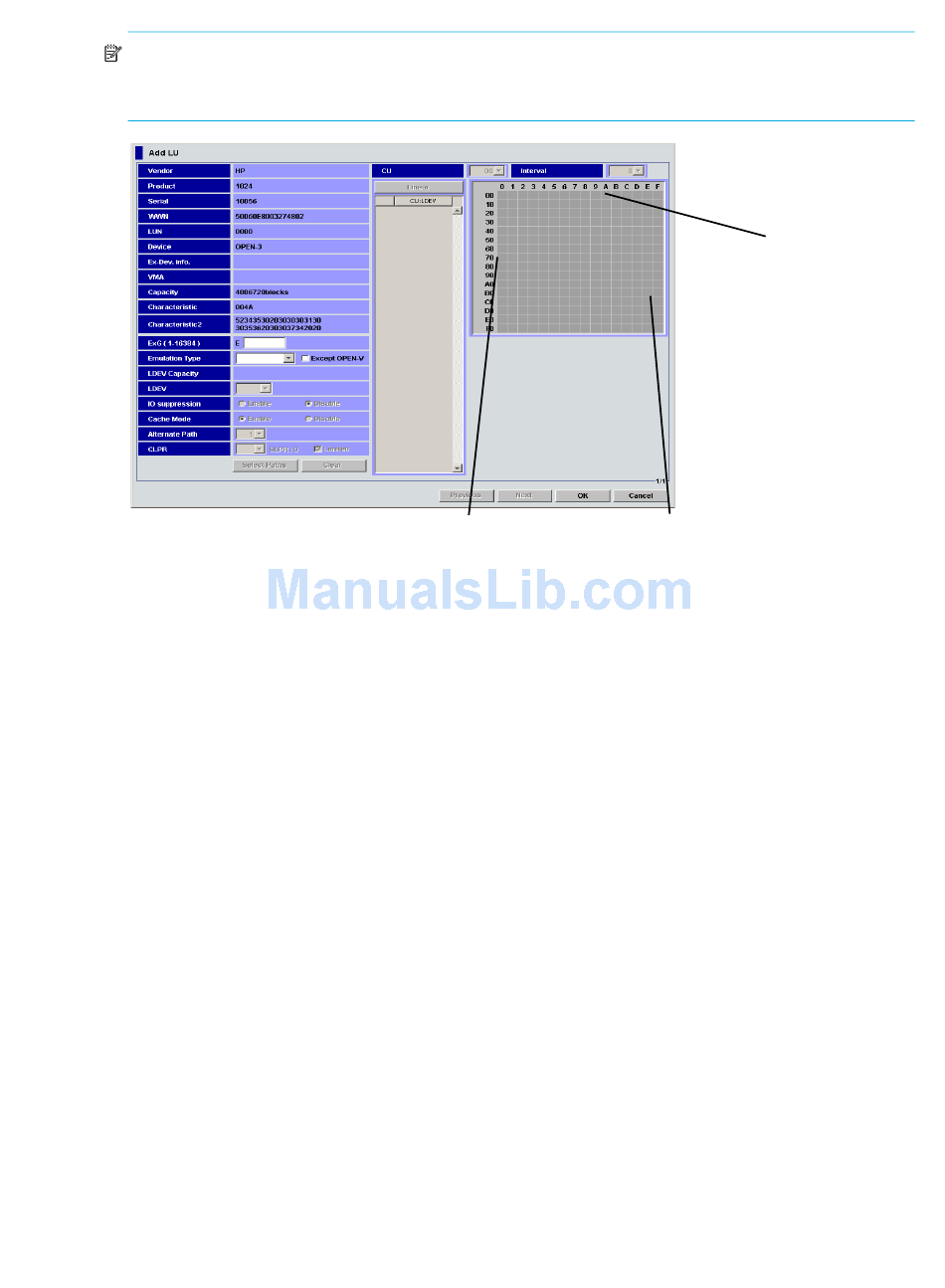

Figure 31

Add LU window

• Vendor
External disk array's vendor.
• Product
External disk array's product name.
• Serial
External disk array's serial number.
• WWN
World Wide Name of the external array port used for connecting to the local disk array.
• LUN
LU number of the external LU.
• Device
External LU's device name.
• Ex-Dev. info.
External disk array information. When the external disk array is an XP1024/XP128 or TagmaStore
Workgroup Modular Storage (WMS) disk array, an asterisk (*) appears.
• VMA
Information about the VMA setting of LUN Security XP Extension. If you mapped the external LU and
previously set the VMA of LUN Security XP Extension, an asterisk (*) appears. If LUN Security XP
Extension is not installed when you remap the volume, the volume with the VMA setting cannot be
mapped.
• Capacity
External LU's capacity in blocks.
• Characteristic
External LU's identification number.
• Characteristic2
CU:LDEV list
CU list
LDEV map
