• Attribute
Port attribute. External ports are used for connecting to the external disk array.
• PCB Mode
Port's PCB mode. Ports designated as External do not have High Speed mode.
• FLI_TOV (Fabric Login Timeout Value)
Maximum time allowed (in seconds) for an external array to perform a fabric login after being
connected to a switch. This value is preset and cannot be changed.
• PLI_TOV (Port Login Timeout Value)
Maximum time allowed (in seconds) for the external array to perform a port login after being
connected. This value is preset and cannot be changed.
• Margin
The sum of the FLI_TOV and PLI_TOV values.

Preset list (Port Operation pane)

This list displays rows from the Port Operation list that are about to be acted on. Check the contents of the
Preset list before applying them to the local disk array. Contents displayed in the Preset list appear in blue
italics in the Port Operation list. When you click Apply in the Port Operation pane, actions designated in
the Preset list are applied and the contents of the Preset list disappear.
If you click Cancel in the Port Operation pane, all designated actions in the Preset list are canceled.
If settings in the Preset list contain errors, actions are not applied to the local disk array even if you click
Apply. In that case, error messages appear, incorrect settings appear in the Preset list, and error codes
appear in the Preset list.
When you right-click a setting in the Preset list, the following commands appear:
• Detail
Displays the Preset Detail window with detailed information about actions selected in the Preset list.
When an error code appears in the Preset list, a corresponding error message appears in the Preset
Detail window.

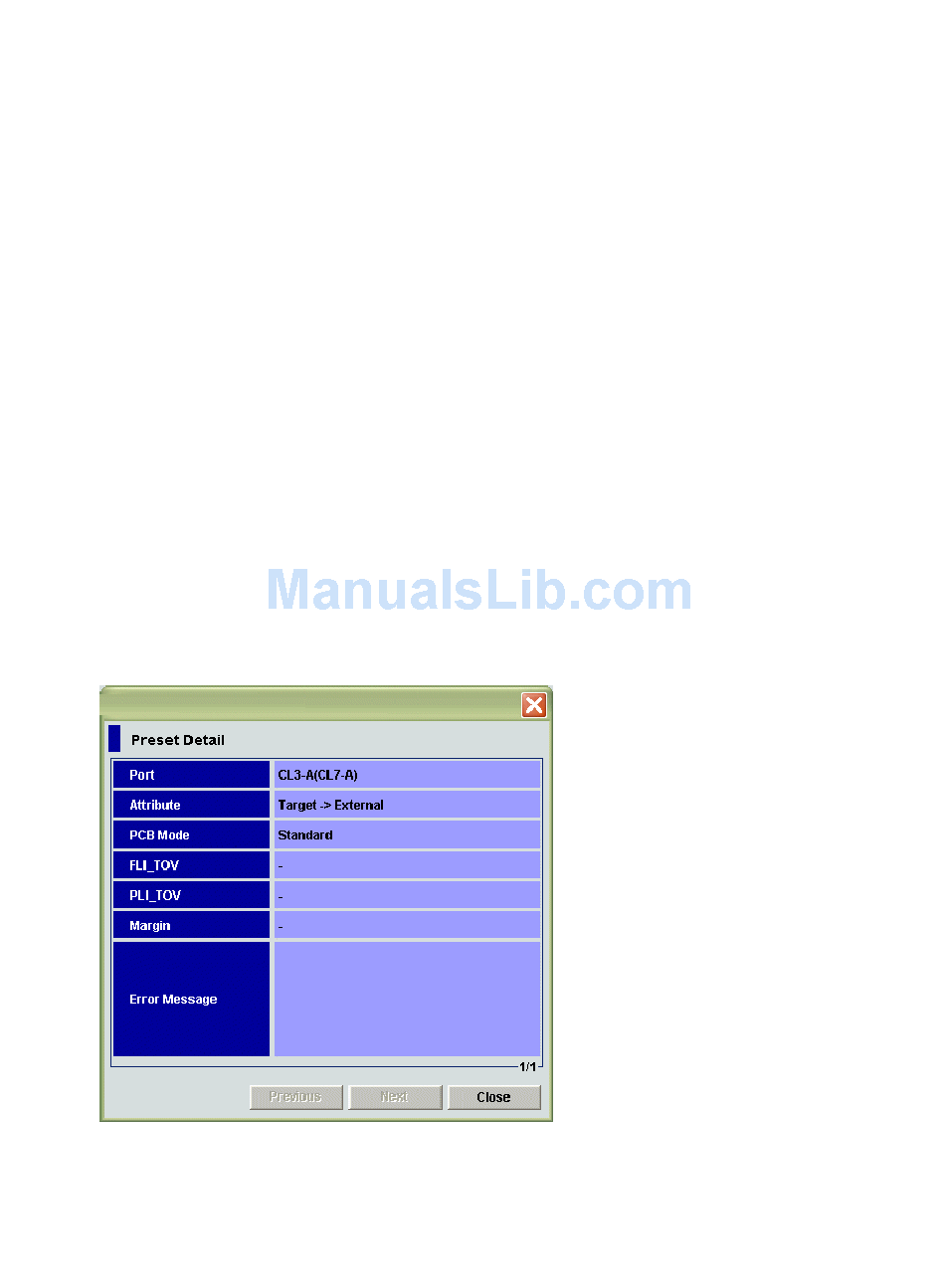

Figure 28 Preset Detail window (changing port attribute)
• Delete
Cancels actions selected in the Preset list.
56 External Storage XP for the XP12000/XP10000
