into Standby mode and the ILOM system controller initializes as soon as the
input power cables are connected to the power source. System messages might be
lost if the server is not connected to a terminal, PC, or workstation at this time.

Connector Locations

shows the connectors on the rear panel of the Sun Netra T5220 server.

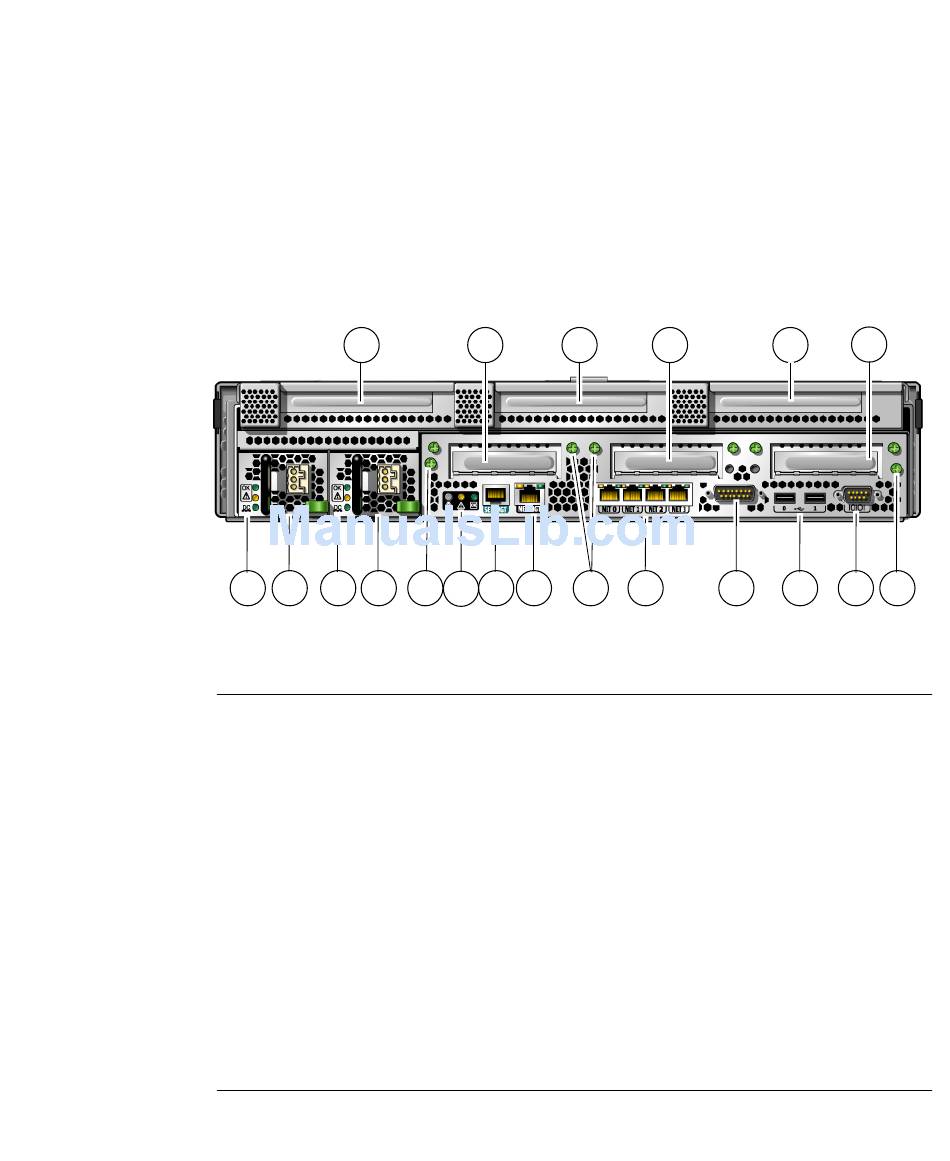

FIGURE 5-1
Rear Panel Connectors and Features on the Sun Netra T5220 Server
FIGURE 5-1
15
1 2 3 4
Figure Legend
1 Power Supply 0 LEDs top to bottom: Locator LED Button, Service Required LED, Power OK LED
2 Power Supply 0
3 Power Supply 1 LEDs top to bottom: Locator LED Button, Service Required LED, Power OK LED
4 Power Supply 1
5 Captive screw for securing motherboard (1 of 2)
6 System LEDs left to right: Locator LED Button, Service Required LED, Power OK LED
7 Service Processor Serial Management Port
8 Service Processor Network Management Port
9 Captive screws for securing the bottom PCI cards. Each bottom card has screws on both sides
10 Gigabit Ethernet Ports left to right: NET0, NET1, NET2, NET3
11 Alarm Port
12 USB ports left to right: USB0, USB1
13 TTYA Serial Port
14 Captive screw for securing motherboard (2 of 2)
15 PCI-X Slot 3
16 17
5 6 7 8 9
18 19
10
11 12
Chapter 5 Cabling the Server
20
13 14
67
