Sun Oracle Netra T5220 Installation Manual page 35

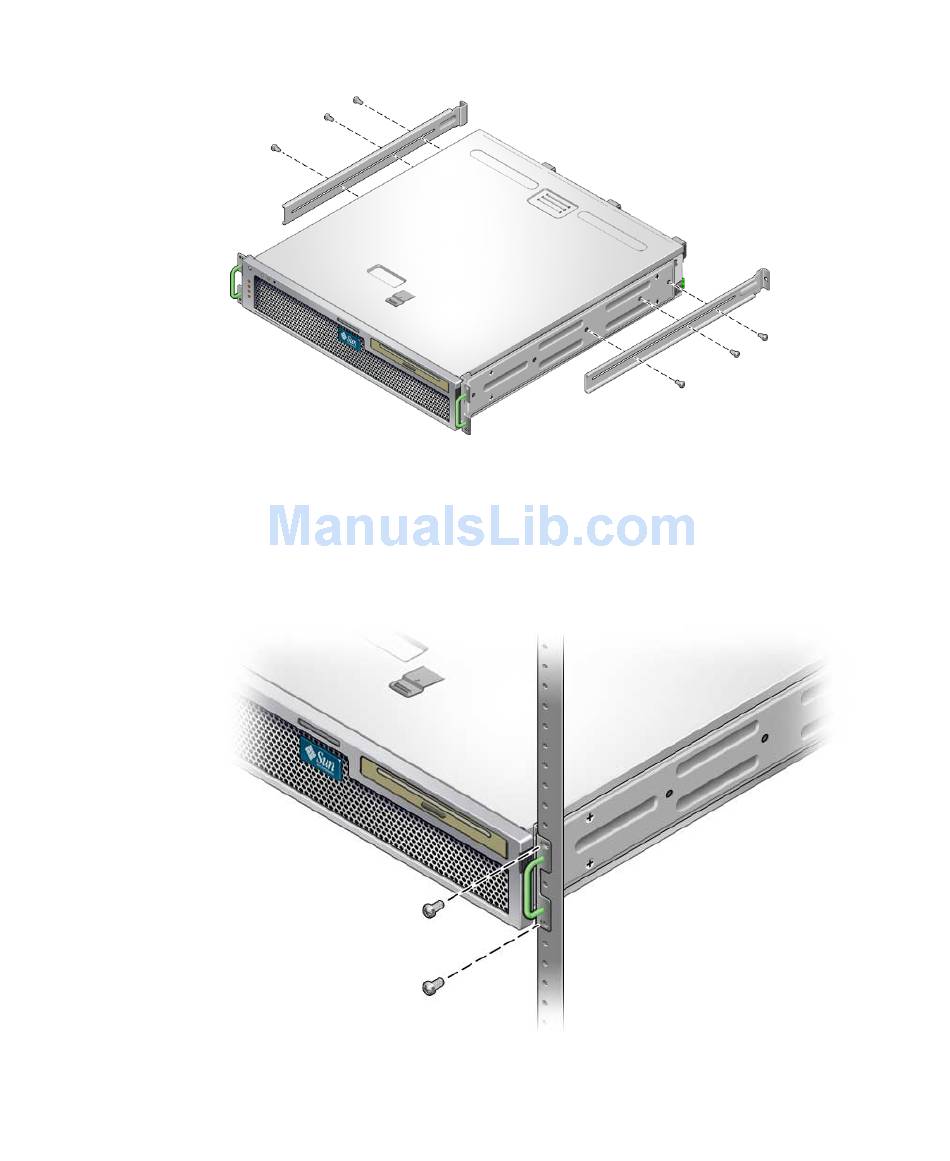

Attaching the Rear Mount Support Brackets
FIGURE 3-3
6. Lift the server to the desired location in the rack.
7. Using two screws per side, secure the front of the hardmount brackets attached
to the sides of the server to the front of the rack (
Securing the Front of the Server to the Rack
FIGURE 3-4
8. Get the two rear mount flanges from the rack kit (
FIGURE 3-4
FIGURE 3-1
Chapter 3 Mounting the Server Into a 4-Post Rack
).
).
25
