Chassis Identification

The following figures show the physical characteristics of the front and rear panels
of the Sun Netra T5220 server (

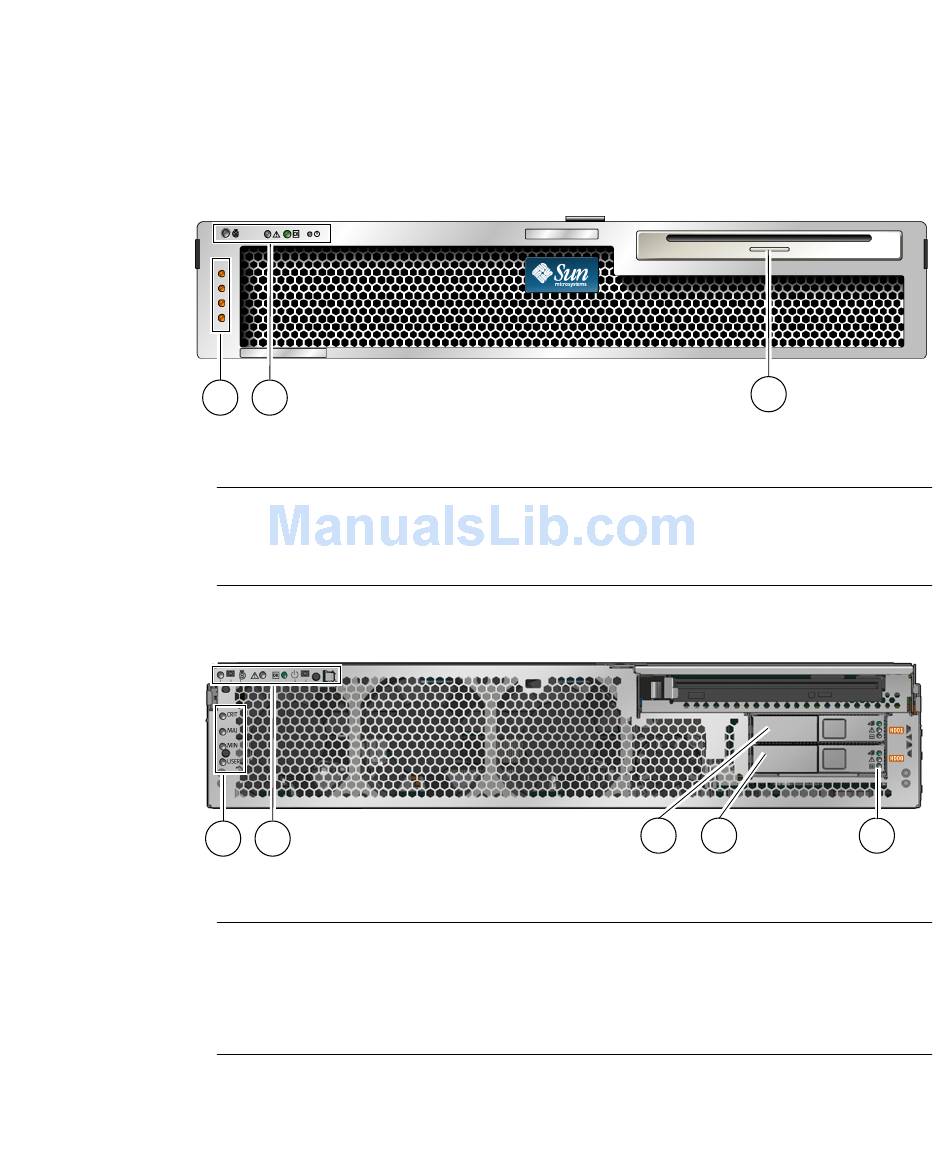

Front Panel of the Sun Netra T5220 Server
FIGURE 1-1
1 2
Figure Legend
1 Alarm status indicators: Top to bottom: Critical LED, Major LED, Minor LED, User LED
2 System Status Indicators: Left to right: Locator LED Button, Service Required LED, System Activity
LED, Power Button
3 Removable media in 2 hard drive configuration
Front Panel of the Sun Netra T5220 Server With the Bezel Removed
FIGURE 1-2
1 2
Figure Legend
1 Alarm status indicators (also displayed with front bezel installed, see
2 System status indicators (also displayed with front bezel installed, see
3 Hard drive 1 (HDD 1)
4 Hard drive 0 (HDD 0)
5 Hard drive LEDs top to bottom: OK to Remove LED, Service Required LED, Power OK LED
, , and
FIGURE 1-1 FIGURE 1-2
