Sun Oracle Netra T5220 Installation Manual page 34

19-inch 4-Post Rackmount Screw Kit Contents (Continued)
TABLE 3-2
Number Description
10 M6 x 13 mm screws
9 M6 square clip nuts
12 10-32 x 0.5 in. combo head screws
12 12-24 x 0.5 in. combo head screws
1. Get the hardmount brackets from the rack kit (
2. Use four of the supplied M5 × 4.5 mm flathead Phillips screws to secure each of
the hardmount brackets to the sides of the server (
FIGURE 3-2
3. Measure the depth of the rack.
4. Get the two rear mount support brackets from the rack kit (
5. Install the rear mount support brackets at the rear of the server, extending the
rear mount support brackets to the measured depth of the rack (
Use two to three of the supplied M4 × 0.5 × 5 mm panhead Phillips screws for
each bracket, depending on the rack depth.
24 Sun Netra T5220 Installation Guide • November 2011

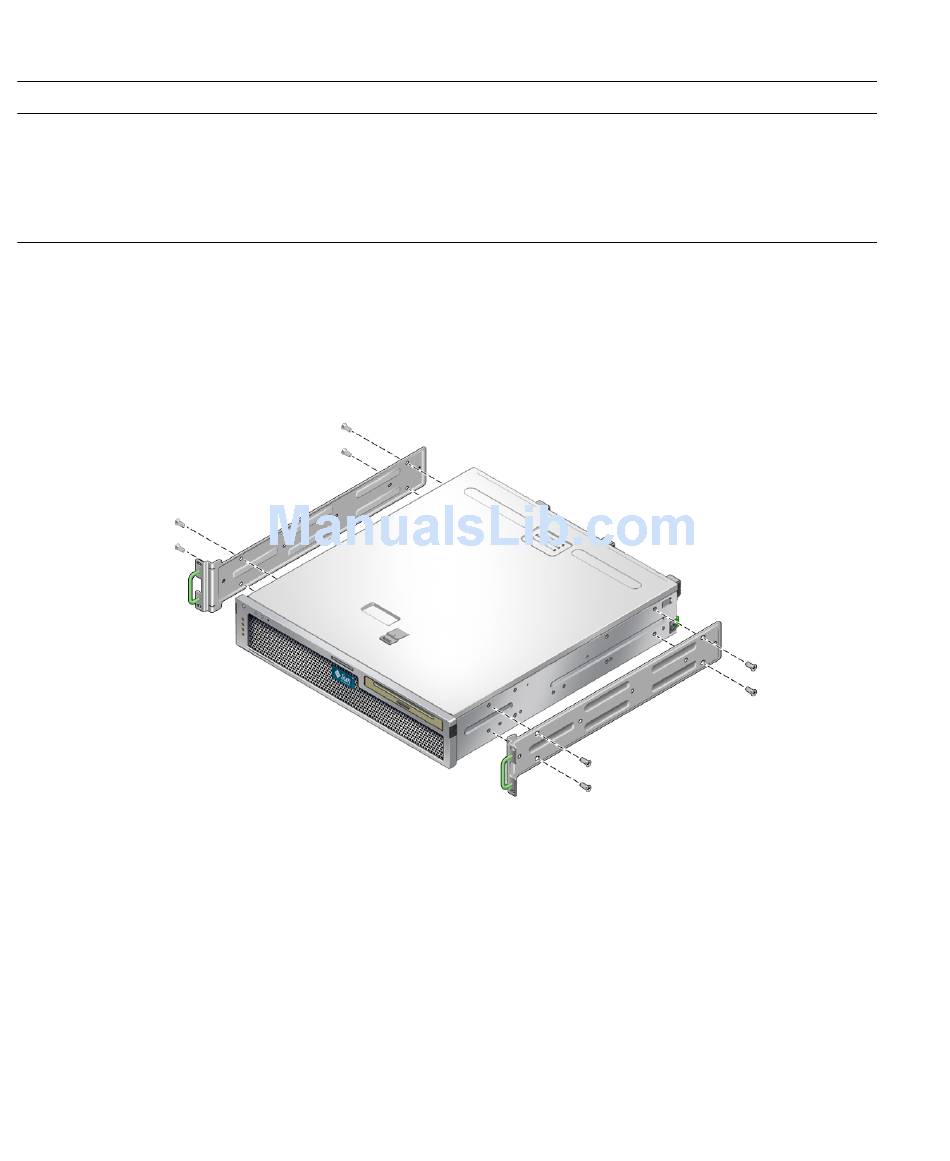

Securing the Hardmount Brackets to the Server
Where Used
10 for rack, if appropriate
9 for rack, if appropriate
12 for rack, if appropriate
12 for rack, if appropriate
FIGURE 3-1
FIGURE 3-2
).
).
).
FIGURE 3-1
).
FIGURE 3-2
