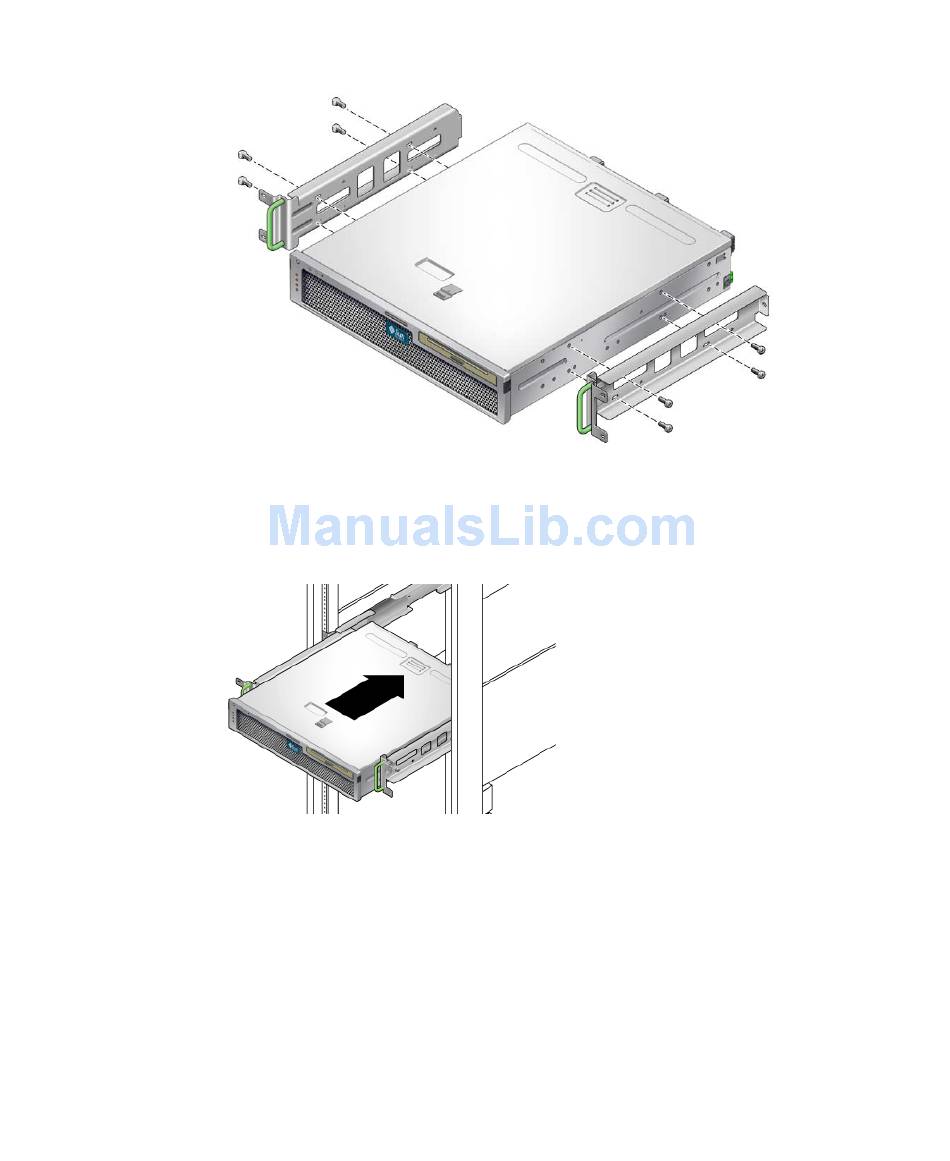

Securing the Side Rails to the Server
FIGURE 3-19
11. Lift the server into the rack and slide the server onto the adjustable rails
( ).
FIGURE 3-20
Sliding the Server Onto the Adjustable Rails
FIGURE 3-20
12. Push the server to the desired depth in the rack, then go to the rear of the server
and push the rear flanges flush against the back of the server (
If the rack is especially shallow, you can flip the rear flanges around so that they
rest flush against the rear of the server.
13. Lift the server out of the rack.
14. Set the rear flanges to the desired depth in the rack, then tighten the single M5
× 7 SEM screw on each of the flanges to secure them to the adjustable rails
( ).
FIGURE 3-18
15. Lift the server into the rack and slide it onto the adjustable rails.
Chapter 3 Mounting the Server Into a 4-Post Rack
).
FIGURE 3-18
