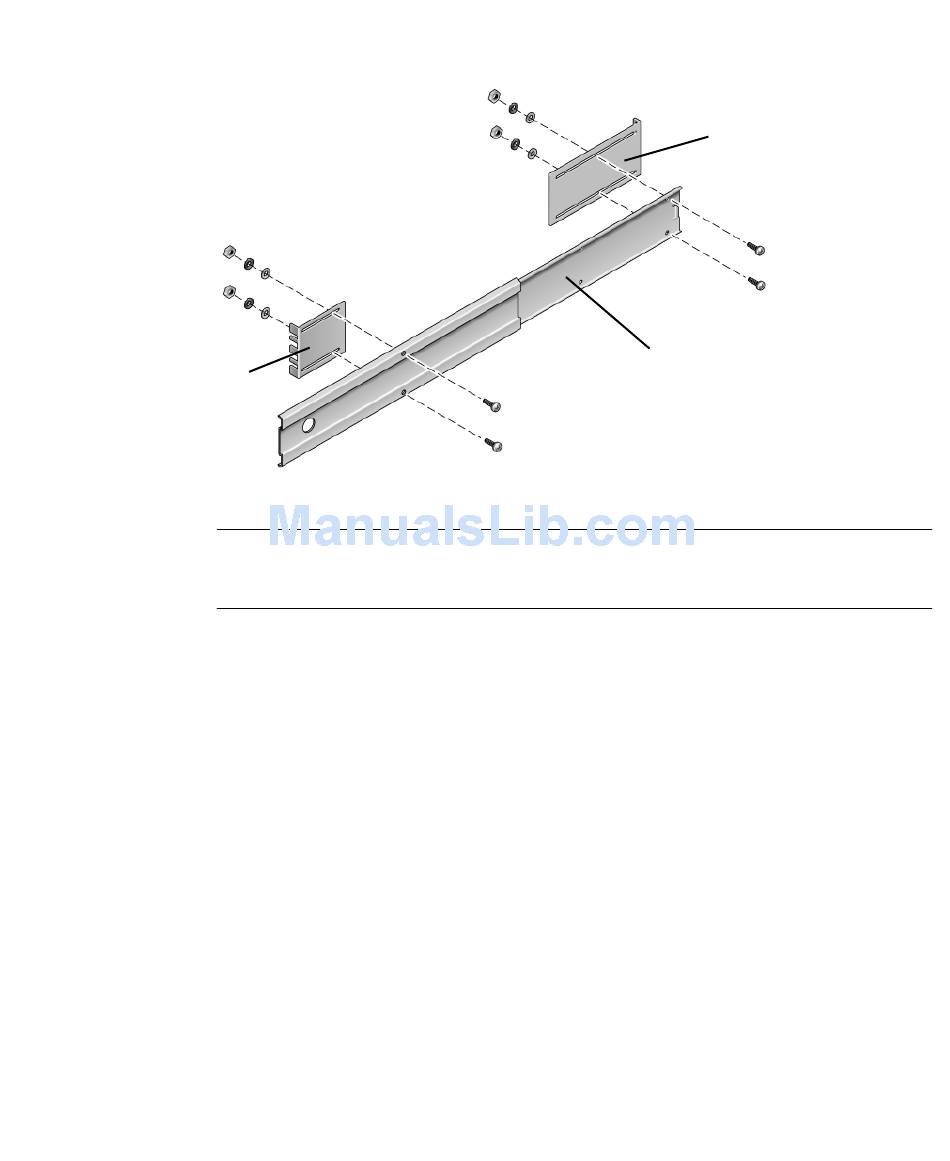

Securing the Slide to the Brackets
FIGURE 3-11
Figure Legend
1 Short bracket
2 Slide
3 Long bracket
11. Repeat Step 9 and
12. Push the slides completely into the assembly on each side of the rack and
release the stop catches.
13. Align the glides attached to the server with the slide assemblies in the rack.
You might find that there is too much or too little room between the two slides
mounted in the rack. Consequently the glides attached to the server might not
align correctly with the slides in the rack. If either situation occurs, loosen the M6
collar screws and cage nuts on the long and short brackets
move them inward or outward to the appropriate points, then tighten them again.
14. Push in the slide buttons and slide the server all the way into the rack
enclosure (
FIGURE 3-12
Step 10 for the slide on the other side of the rack.
).
Chapter 3
(Step 7
Mounting the Server Into a 4-Post Rack
and Step 8),
