36" & 48" Shutter Box Fan

Fan Installation

Maintenance

DANGER!
MV1666B
Build fan framing out of 2'' (50 mm) lumber (not supplied). The required wall opening is
provided in the chart below. See Figure 16.
A
Insert and secure the Fan Assembly in the framed opening in the side wall (hardware not
supplied).

Wiring

See wiring diagram on Motor for Motor electrical connections. Follow local, state and
national electric codes for wiring.
Install an electric disconnect within reach of each Fan.
Service and maintenance of fans should be done only by a qualified technician.
DISCONNECT POWER PRIOR TO MAINTAINING OR CLEANING THE FAN!
The fan may start automatically causing serious injury or death.
Keep the fan clean for maximum life and best performance. Do not spray water on Fan
Shaft Bearings.
Periodically check the V-Belt. If necessary, adjust the spring tension to prevent the belt
from slipping.
The Motor and Fan Shaft Bearings are permanently lubricated. Grease Zerks are provided
on the Fan Shaft Bearings when relubrication is needed. Relubrication is required
whenever water comes in contact with the Fan Shaft Bearings. Slowly rotate the Fan
Shaft as bearing is filled with Grease. Use only high quality lithium soap base grease and
clean all dirt from Zerk before applying grease.
Dimension
(minimum)
36'' Fan
B
48'' Fan
Mv1089-1a 8/99

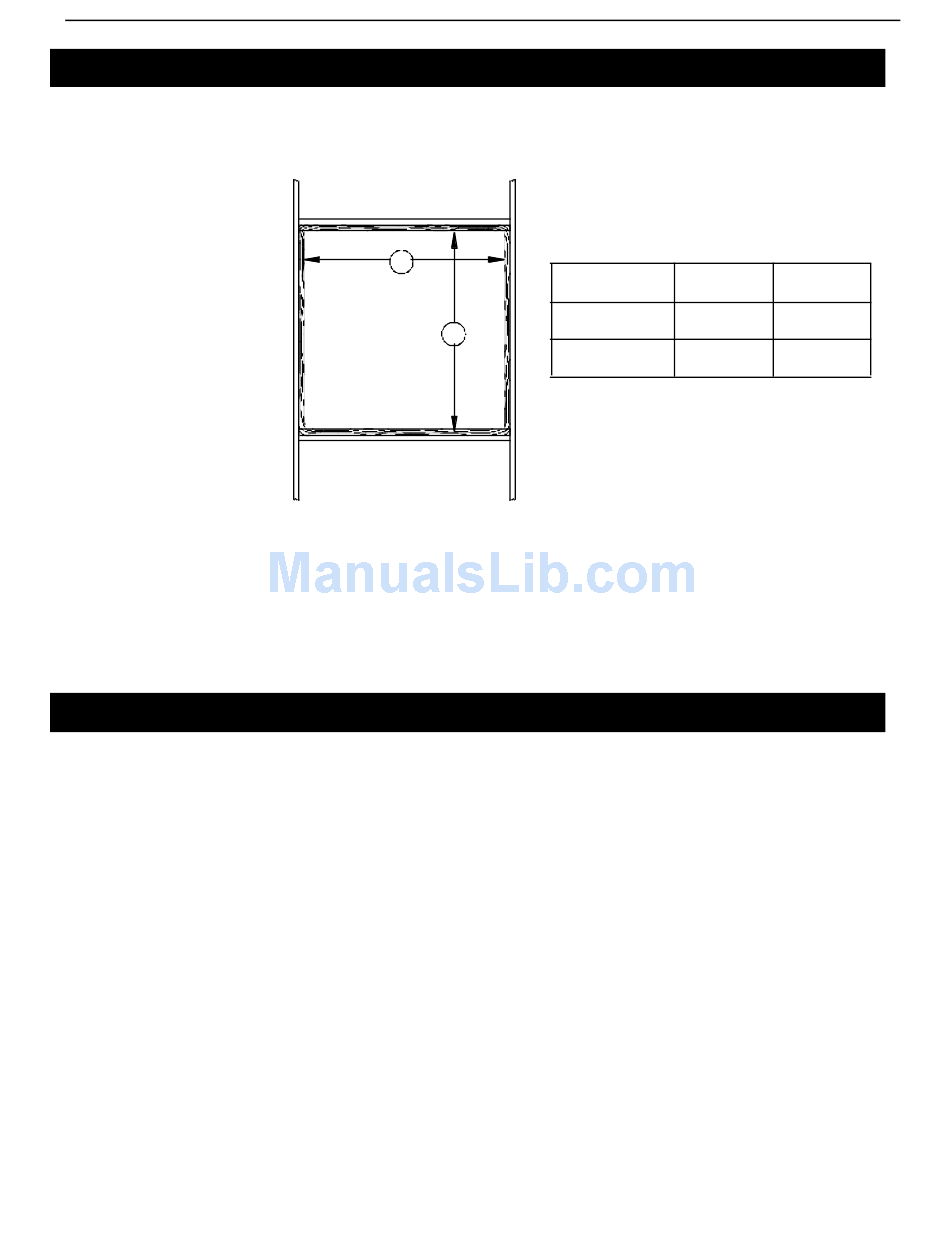

Figure 16. Framing Diagram (front view)
Fan Installation
A B
42-1/4'' 42-1/4''
[107.3 cm] [107.3 cm]
54-5/8'' 54-5/8''
[138.7 cm] [138.7 cm]
